EXP-0911 Series

Catalog

ATEX ZONE II FLEX CABLE CONNECTOR

Part	Backshell Material, Plating	Shell Material	Shielding	Contact Material	Features	Termination	Primary Material	Connector Type	Applications	Material Flammability Rating	Mounting Type	Contact Finish - Mating	Number of Positions	Fastening Type	Color	Current Rating (Amps)	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Cable Opening [Min]	Cable Opening [Min]	Cable Opening [Max]	Cable Opening [Max]	Orientation	Voltage Rating

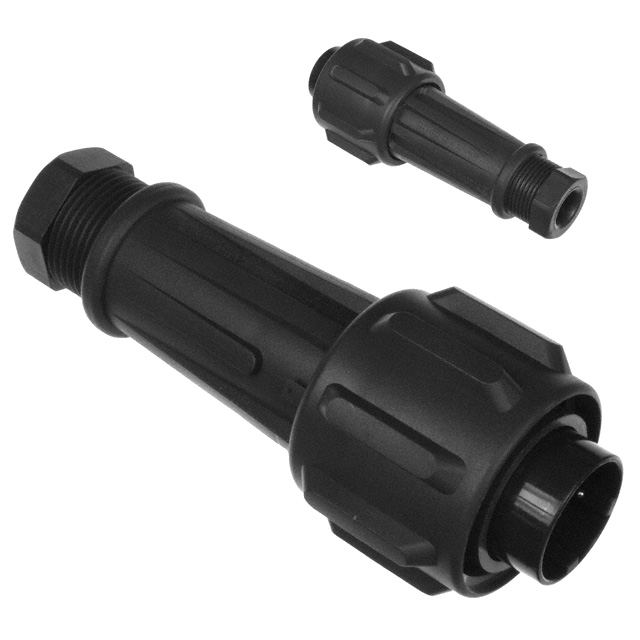

BULGIN LIMITED EXP-0911/02/P	Polyester	Polyester	Unshielded	Brass	Backshell Coupling Nut UV Resistant	Screw	Plastic	Plug Male Pins	Industrial	UL94 V-0	Free Hanging (In-Line)	Nickel	2	Threaded	Black	18 A	IP68 - Dust Tight Waterproof	55 °C	-20 ░C	0.512 "	13 mm	15 mm	0.591 in	Keyed	600 VAC

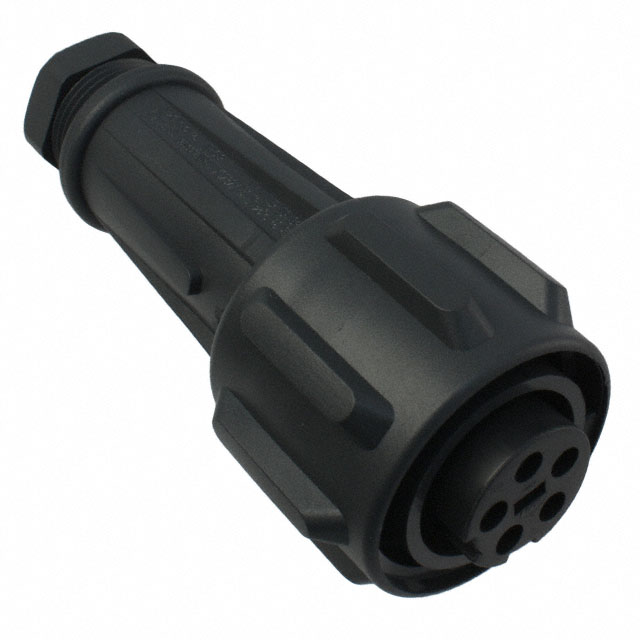

BULGIN LIMITED EXP-0911/05/S	Polyester	Polyester	Unshielded	Brass	Backshell Coupling Nut Trailing Neutral UV Resistant	Screw	Plastic	Plug Female Sockets	Industrial	UL94 V-0	Free Hanging (In-Line)	Nickel	5	Threaded	Black	18 A	IP68 - Dust Tight Waterproof	55 °C	-20 ░C	0.512 "	13 mm	15 mm	0.591 in	Keyed	600 VAC

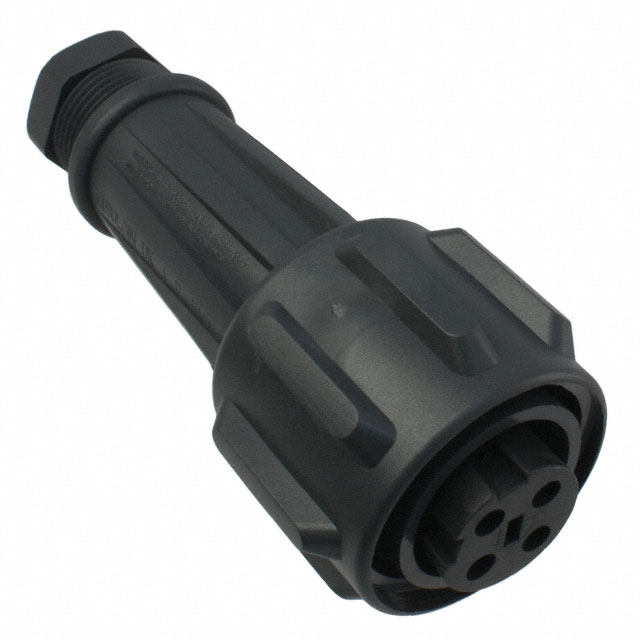

BULGIN LIMITED EXP-0911/04/S	Polyester	Polyester	Unshielded	Brass	Backshell Coupling Nut UV Resistant	Screw	Plastic	Plug Female Sockets	Industrial	UL94 V-0	Free Hanging (In-Line)	Nickel	4	Threaded	Black	18 A	IP68 - Dust Tight Waterproof	55 °C	-20 ░C	0.512 "	13 mm	15 mm	0.591 in	Keyed	600 VAC
BULGIN LIMITED EXP-0911/10/P	Polyester	Polyester	Unshielded	Brass	Backshell Coupling Nut UV Resistant	Screw	Plastic	Plug Male Pins	Industrial	UL94 V-0	Free Hanging (In-Line)	Nickel	10	Threaded	Black	10 A	IP68 - Dust Tight Waterproof	55 °C	-20 ░C	0.512 "	13 mm	15 mm	0.591 in	Keyed	250 VAC

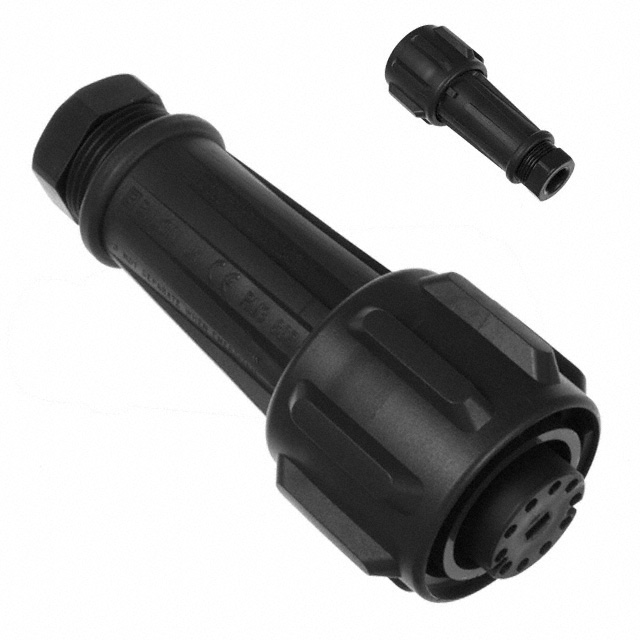

BULGIN LIMITED EXP-0911/10/S	Polyester	Polyester	Unshielded	Brass	Backshell Coupling Nut UV Resistant	Screw	Plastic	Plug Female Sockets	Industrial	UL94 V-0	Free Hanging (In-Line)	Nickel	10	Threaded	Black	10 A	IP68 - Dust Tight Waterproof	55 °C	-20 ░C	0.512 "	13 mm	15 mm	0.591 in	Keyed	250 VAC
