G81M07-P Series
Manufacturer: ODU
Beta
⌘K

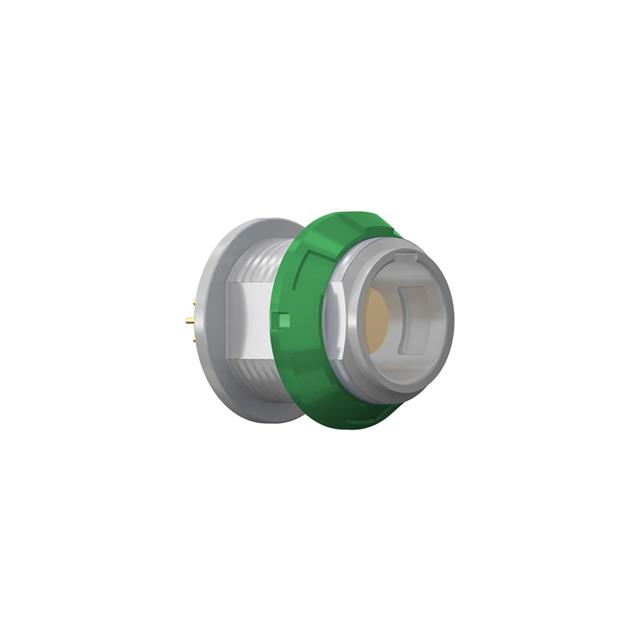

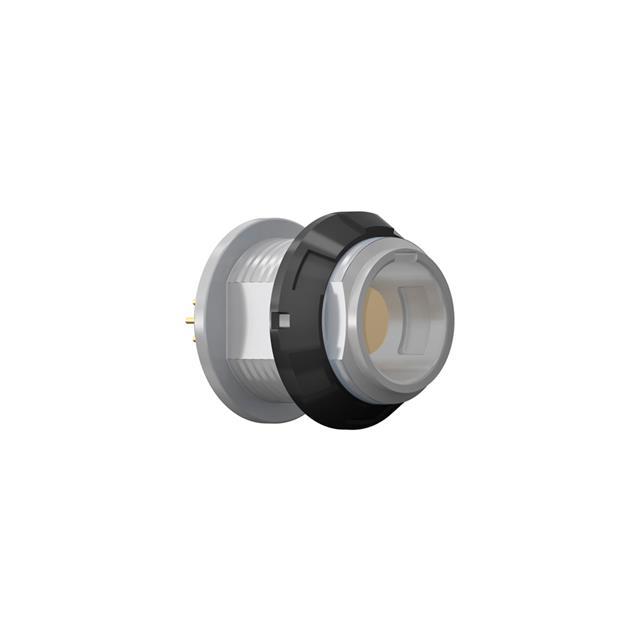

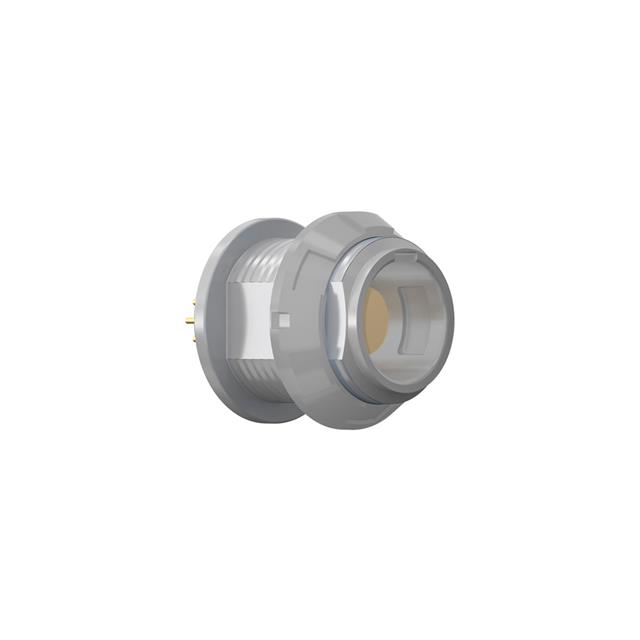

ODU MEDI-SNAP RECEPT, STY 8, SZ
| Part | Current Rating (Amps) | Fastening Type | Primary Material | Shielding | Shell Size - Insert | Orientation | Contact Material | Color | Operating Temperature [Max] | Operating Temperature [Min] | Insert Material | Ingress Protection | Mounting Type | Number of Positions | Material Flammability Rating | Mounting Feature | Applications | Shell Material | Contact Finish - Mating | Voltage Rating | Connector Type | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
4 A | Detent Lock Push-Pull | Plastic | Unshielded | 1 | 0 | Brass | Gray | 120 °C | -50 °C | Polyetheretherketone (PEEK) | IP50 - Dust Protected | Panel Mount | 10 | UL94 V-0 | Bulkhead - Front Side Nut | Industrial Medical Testing Equipment & Measurement | Polysulfone (PSU) | Gold | 25 V | Receptacle Female Sockets | ||
7.5 A | Detent Lock Push-Pull | Plastic | Unshielded | 1 | 0 | Brass | Gray | 120 °C | -50 °C | Polyetheretherketone (PEEK) | IP50 - Dust Protected | Panel Mount Through Hole | 4 | UL94 V-0 | Bulkhead - Front Side Nut | Industrial Medical Testing Equipment & Measurement | Polysulfone (PSU) | Gold | 48 VDC | Receptacle Female Sockets | Solder | |
6 A | Detent Lock Push-Pull | Plastic | Unshielded | 1 | 0 | Brass | Gray Red | 120 °C | -50 °C | Polyetheretherketone (PEEK) | IP50 - Dust Protected | Panel Mount Through Hole | 7 | UL94 V-0 | Bulkhead - Front Side Nut | Industrial Medical Testing Equipment & Measurement | Polysulfone (PSU) | Gold | 36 VDC | Receptacle Female Sockets | Solder | |
7.5 A | Detent Lock Push-Pull | Plastic | Unshielded | 1 | 0 | Brass | Blue Gray | 120 °C | -50 °C | Polyetheretherketone (PEEK) | IP50 - Dust Protected | Panel Mount Through Hole | 4 | UL94 V-0 | Bulkhead - Front Side Nut | Industrial Medical Testing Equipment & Measurement | Polysulfone (PSU) | Gold | 48 VDC | Receptacle Female Sockets | Solder | |
4 A | Detent Lock Push-Pull | Plastic | Unshielded | 1 | 0 | Brass | 120 °C | -50 °C | Polyetheretherketone (PEEK) | IP50 - Dust Protected | Panel Mount | 10 | UL94 V-0 | Bulkhead - Front Side Nut | Industrial Medical Testing Equipment & Measurement | Polysulfone (PSU) | Gold | 25 V | Receptacle Female Sockets | |||
4 A | Detent Lock Push-Pull | Plastic | Unshielded | 1 | 0 | Brass | Gray | 120 °C | -50 °C | Polyetheretherketone (PEEK) | IP50 - Dust Protected | Panel Mount Through Hole | 10 | UL94 V-0 | Bulkhead - Front Side Nut | Industrial Medical Testing Equipment & Measurement | Polysulfone (PSU) | Gold | 25 V | Receptacle Female Sockets | Solder | |
6 A | Detent Lock Push-Pull | Plastic | Unshielded | 1 | 0 | Brass | Blue Gray | 120 °C | -50 °C | Polyetheretherketone (PEEK) | IP50 - Dust Protected | Panel Mount Through Hole | 7 | UL94 V-0 | Bulkhead - Front Side Nut | Industrial Medical Testing Equipment & Measurement | Polysulfone (PSU) | Gold | 36 VDC | Receptacle Female Sockets | Solder | |
7.5 A | Detent Lock Push-Pull | Plastic | Unshielded | 1 | 0 | Brass | Blue Gray | 120 °C | -50 °C | Polyetheretherketone (PEEK) | IP50 - Dust Protected | Panel Mount Through Hole | 5 | UL94 V-0 | Bulkhead - Front Side Nut | Industrial Medical Testing Equipment & Measurement | Polysulfone (PSU) | Gold | 35 V | Receptacle Female Sockets | Solder | |
7.5 A | Detent Lock Push-Pull | Plastic | Unshielded | 1 | 0 | Brass | 120 °C | -50 °C | Polyetheretherketone (PEEK) | IP50 - Dust Protected | Panel Mount Through Hole | 5 | UL94 V-0 | Bulkhead - Front Side Nut | Industrial Medical Testing Equipment & Measurement | Polysulfone (PSU) | Gold | 35 V | Receptacle Female Sockets | Solder | ||
4 A | Detent Lock Push-Pull | Plastic | Unshielded | 1 | 0 | Brass | Gray | 120 °C | -50 °C | Polyetheretherketone (PEEK) | IP50 - Dust Protected | Panel Mount Through Hole | 10 | UL94 V-0 | Bulkhead - Front Side Nut | Industrial Medical Testing Equipment & Measurement | Polysulfone (PSU) | Gold | 25 V | Receptacle Female Sockets | Solder |
