1274824 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

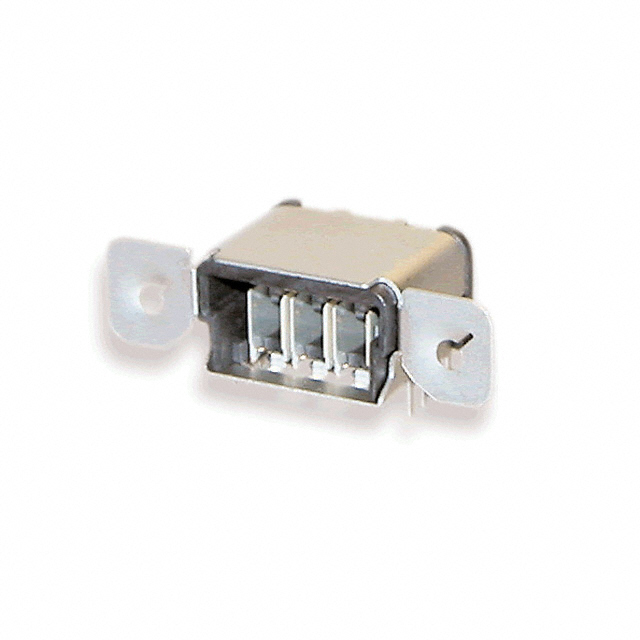

(1274824-2) LCP (LIQUID CRYSTAL POLYMER)
| Part | Body Material | Shield Termination | Frequency - Max [Max] | Connector Type | Impedance | Insertion Loss | Number of Ports | Center Contact Plating | Mating Cycles | Housing Color | Operating Temperature [Max] | Operating Temperature [Min] | Body Finish | Center Contact Material | Connector Style | Features | Cable Group | Mounting Type | Voltage Rating | Contact Termination | Dielectric Material | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Steel | Solder | 6000 MHz | Receptacle Non-Gendered | 50 Ohms | 0.4 dB | 1 | Tin | 500 | Black | 85 °C | -40 °C | Tin | Copper Alloy | QSL Three Port | Mounting Flange | 316 RG-174 | Surface Mount Right Angle Through Hole | 270 V | Solder | Liquid Crystal Polymer (LCP) | Push-Pull |
