CR16MCS9 Series
Manufacturer: Texas Instruments
Beta
⌘K

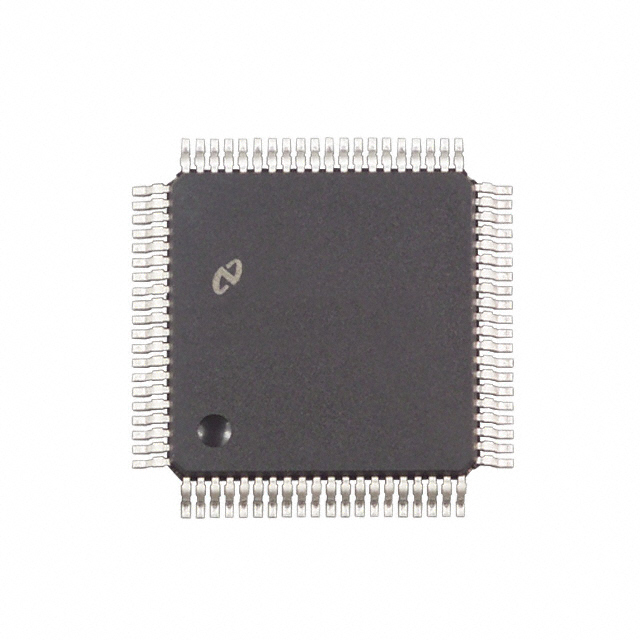

IC MCU 16BIT 64KB FLASH 80MQFP
| Part | Connectivity | Program Memory Size | Supplier Device Package | Core Processor | Voltage - Supply (Vcc/Vdd) [Max] | Voltage - Supply (Vcc/Vdd) [Min] | Number of I/O | Data Converters [custom] | Data Converters [custom] | Package / Case | Core Size | Oscillator Type | Speed | Program Memory Type | Mounting Type | EEPROM Size | Peripherals | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | ACCESS.Bus (2-Wire/I2C SMBus) CANbus Microwire/Plus (SPI) UART/USART | 64 KB | 80-QFP (14x14) | CR16B | 5.5 V | 4.5 V | 56 | 12 b | 8 | 80-QFP | 16-Bit | External | 16 MHz | FLASH | Surface Mount | 2K x 8 | POR PWM WDT | 70 °C | 0 °C |
Texas Instruments | ACCESS.Bus (2-Wire/I2C SMBus) CANbus Microwire/Plus (SPI) UART/USART | 64 KB | 80-QFP (14x14) | CR16B | 5.5 V | 4.5 V | 56 | 12 b | 8 | 80-QFP | 16-Bit | External | 16 MHz | FLASH | Surface Mount | 2K x 8 | POR PWM WDT | 85 °C | -40 °C |
Texas Instruments | ACCESS.Bus (2-Wire/I2C SMBus) CANbus Microwire/Plus (SPI) UART/USART | 64 KB | 80-QFP (14x14) | CR16B | 5.5 V | 4.5 V | 56 | 12 b | 8 | 80-QFP | 16-Bit | External | 16 MHz | FLASH | Surface Mount | 2K x 8 | POR PWM WDT | 125 °C | -40 °C |
