CT2844 Series

Catalog

WIRE SIL651BC 2.50 4MMOD BLACK

Part	Cable Type	Jacket Color	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Wire Gauge	Voltage	Conductor Strand [custom]	Conductor Strand [diameter]	Length	Length	Operating Temperature [Max]	Operating Temperature [Min]	Conductor Material	Jacket (Insulation) Material	Conductor Strand [custom]	Conductor Strand	Length [x]	Length [x]

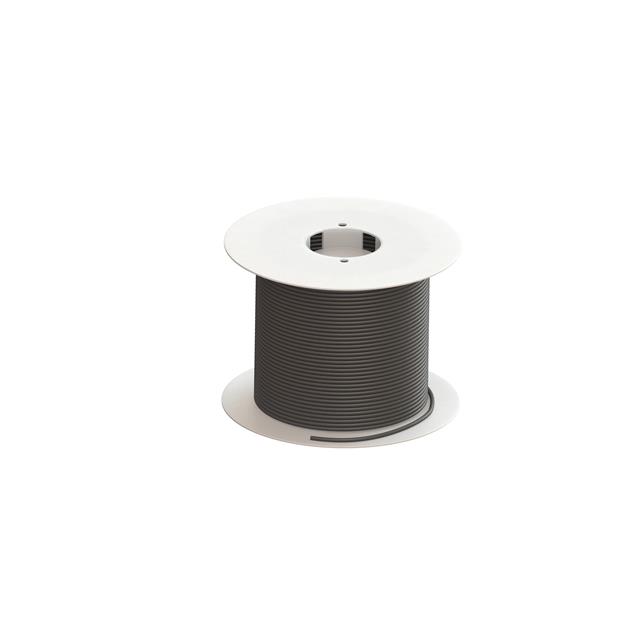

Cal Test Electronics CT2844A-0-50	Hook-Up	Black	0.157 in	3.99 mm	13 AWG	1 kV	7	0.0028 "	50 m	164 ft	180 °C	-60 °C	Copper Bare	Silicone Rubber
Cal Test Electronics CT2844-9-10	Test Lead	White			13 AWG	1 kV			10 m	32.81 ft	180 °C	-60 °C	Copper Bare		651	0.0028 "
Cal Test Electronics CT2844-2-50	Test Lead	Red			13 AWG	1 kV			50 m	164 ft	180 °C	-60 °C	Copper Bare		651	0.0028 "
Cal Test Electronics CT2844-6-100	Test Lead	Blue			13 AWG	1 kV					180 °C	-60 °C	Copper Bare		651	0.0028 "	328.1 ft	100 m
Cal Test Electronics CT2844A-0-100	Hook-Up	Black	0.157 in	3.99 mm	13 AWG	1 kV	7	0.0028 "			180 °C	-60 °C	Copper Bare	Silicone Rubber			328.1 ft	100 m
Cal Test Electronics CT2844-2-100	Test Lead	Red			13 AWG	1 kV					180 °C	-60 °C	Copper Bare		651	0.0028 "	328.1 ft	100 m
Cal Test Electronics CT2844-0-50	Test Lead	Black			13 AWG	1 kV			50 m	164 ft	180 °C	-60 °C	Copper Bare		651	0.0028 "
Cal Test Electronics CT2844-0-10	Test Lead	Black			13 AWG	1 kV			10 m	32.81 ft	180 °C	-60 °C	Copper Bare		651	0.0028 "
