MLH100 Series

Manufacturer: Honeywell Sensing and Productivity Solutions

Catalog

PRESSURE TRANSDUCERS

Part	Termination Style	Port Size [custom]	Port Size [x]	Port Size [x]	Port Size [custom]	Output Type	Maximum Pressure [Max]	Maximum Pressure [Max]	Accuracy	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Pressure Type	Output [Min]	Output [Max]	Features	Package / Case	Operating Pressure	Operating Pressure	Port Style	Voltage - Supply [Min]	Voltage - Supply [Max]	Port Size	Port Size	Port Size
Honeywell Sensing and Productivity Solutions MLH100PGD61B
Honeywell Sensing and Productivity Solutions MLH100PGB01A	Packard Metripak 150	NPT	0.25 "	6.35 mm	Male	Analog Voltage	2068.43 kPa	300 PSI	0.25 %	Industrial Automation	125 °C	-40 °C	Vented Gauge	0.5 V	4.5 V	Amplified Output Temperature Compensated	Cylinder Metal	689.48 kPa	100 PSI	Threaded
Honeywell Sensing and Productivity Solutions MLH100PSB10A	Connector					Analog Voltage	2068.43 kPa	300 PSI	0.25 %	Industrial Automation	125 °C	-40 °C	Sealed Gauge	0.5 V	4.5 V	Amplified Output Temperature Compensated	Cylinder Metal	689.48 kPa	100 PSI	Threaded	5 V	6 V	Male UNF	0.4375 " 11.11 mm
Honeywell Sensing and Productivity Solutions MLH100PGD14B						Analog Current	2068.43 kPa	300 PSI	0.25 %	Industrial Automation	125 °C	-40 °C	Vented Gauge	4 mA	20 mA	Amplified Output Temperature Compensated	Cylinder Metal	689.48 kPa	100 PSI	Threaded	9.5 V	30 VDC
Honeywell Sensing and Productivity Solutions MLH100PSB06A	Packard Metripak 150					Analog Voltage	2068.43 kPa	300 PSI	0.25 %	Industrial Automation	125 °C	-40 °C	Sealed Gauge	0.5 V	4.5 V	Amplified Output Temperature Compensated	Cylinder Metal	689.48 kPa	100 PSI	Threaded	5 V	6 V	Male	3.18 mm	0.125 "
Honeywell Sensing and Productivity Solutions MLH100PGD01B

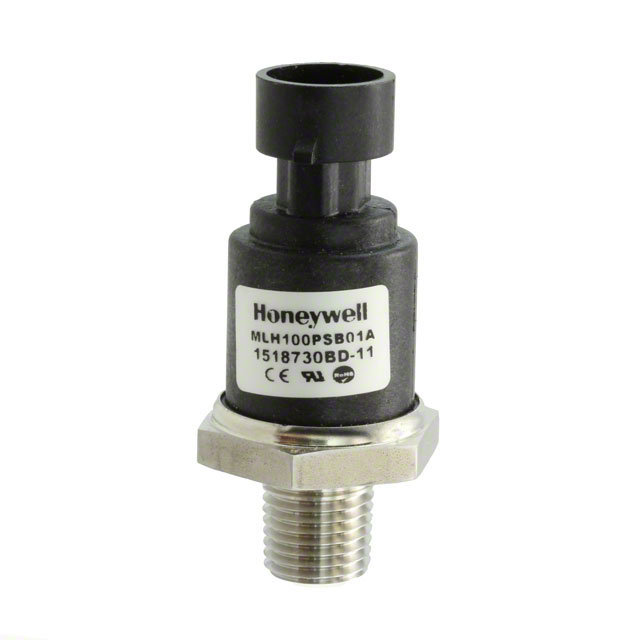

Honeywell Sensing and Productivity Solutions MLH100PSB01A	Packard Metripak 150	NPT	0.25 "	6.35 mm	Male	Analog Voltage	2068.43 kPa	300 PSI	0.25 %	Industrial Automation	125 °C	-40 °C	Sealed Gauge	0.5 V	4.5 V	Amplified Output Temperature Compensated	Cylinder Metal	689.48 kPa	100 PSI	Threaded	5 V	6 V
Honeywell Sensing and Productivity Solutions MLH100PGL06B	Cable 1m					Analog Current	2068.43 kPa	300 PSI	0.25 %	Industrial Automation	125 °C	-40 °C	Vented Gauge	4 mA	20 mA	Amplified Output Temperature Compensated	Cylinder Metal	689.48 kPa	100 PSI	Threaded	9.5 V	30 VDC	Male	3.18 mm	0.125 "
Honeywell Sensing and Productivity Solutions MLH100PST06A	Deutsch 3 Pin					Analog Voltage	2068.43 kPa	300 PSI	0.25 %	Industrial Automation	125 °C	-40 °C	Sealed Gauge	0.5 V	4.5 V	Amplified Output Temperature Compensated	Cylinder Metal	689.48 kPa	100 PSI	Threaded	5 V	6 V	Male	3.18 mm	0.125 "

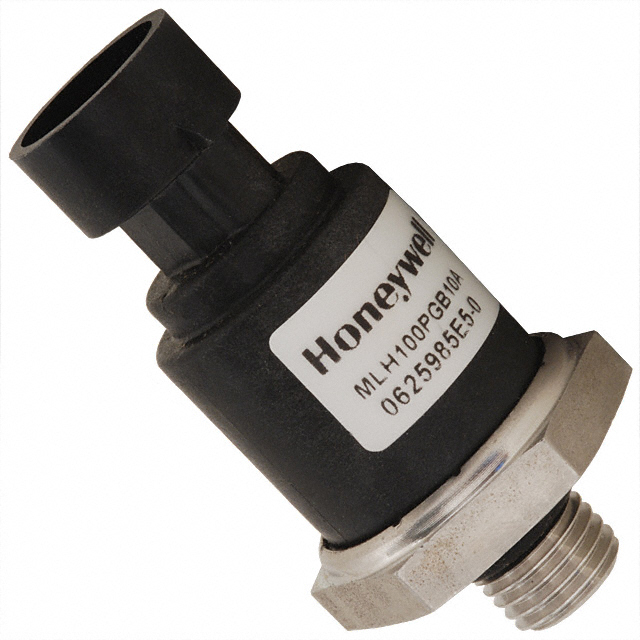

Honeywell Sensing and Productivity Solutions MLH100PGB10A	Packard Metripak 150					Analog Voltage	2068.43 kPa	300 PSI	0.25 %	Industrial Automation	125 °C	-40 °C	Vented Gauge	0.5 V	4.5 V	Amplified Output Temperature Compensated	Cylinder Metal	689.48 kPa	100 PSI	Threaded	5 V	6 V	Male UNF	0.4375 " 11.11 mm
