EP7312 Series

Catalog

IC MPU EP7 74MHZ 208LQFP

Part	Voltage - I/O	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Core Processor	Speed	Additional Interfaces	Display & Interface Controllers	Security Features	RAM Controllers	Mounting Type	Number of Cores/Bus Width	Package / Case

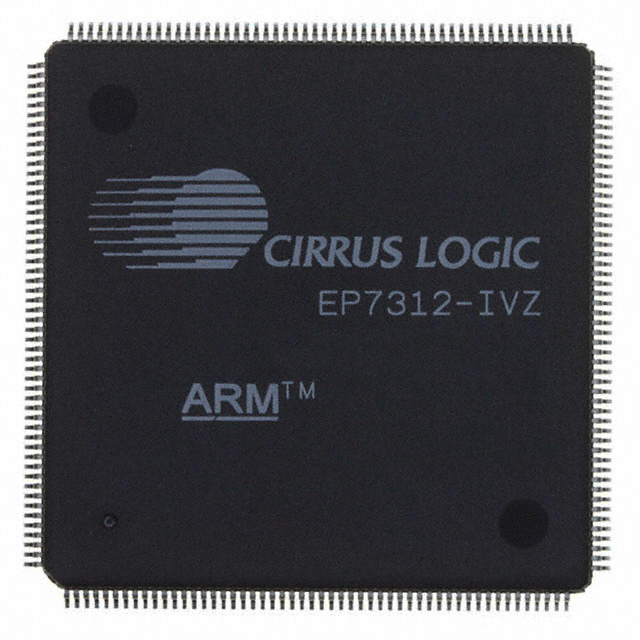

Cirrus Logic Inc. EP7312-IVZ	2.5 V 2.7 V 3 V 3.3 V	85 C	-40 ¯C	208-LQFP	ARM7TDMI	74 MHz	DAI IrDA SSI UART	Keypad LCD Touchscreen	Hardware ID	SDRAM	Surface Mount	1 32 Bit	208-LQFP

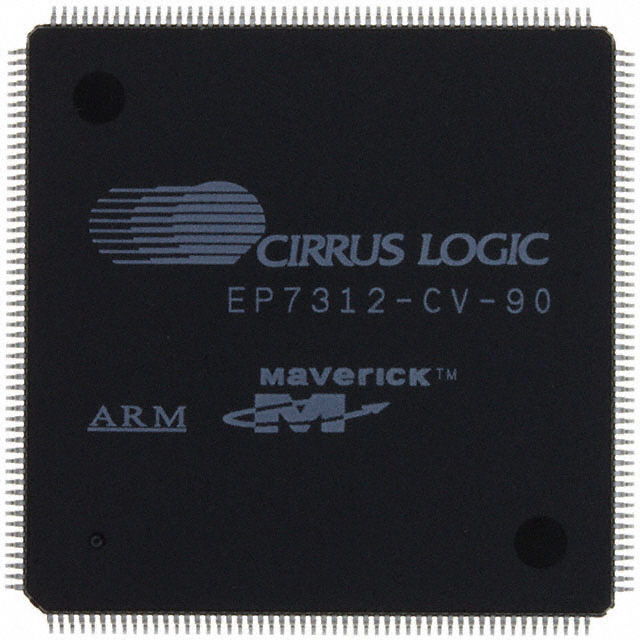

Cirrus Logic Inc. EP7312-CV-90	2.5 V 2.7 V 3 V 3.3 V	70 °C	0 °C	208-LQFP	ARM7TDMI	90 MHz	DAI IrDA SSI UART	Keypad LCD Touchscreen	Hardware ID	SDRAM	Surface Mount	1 32 Bit	208-LQFP

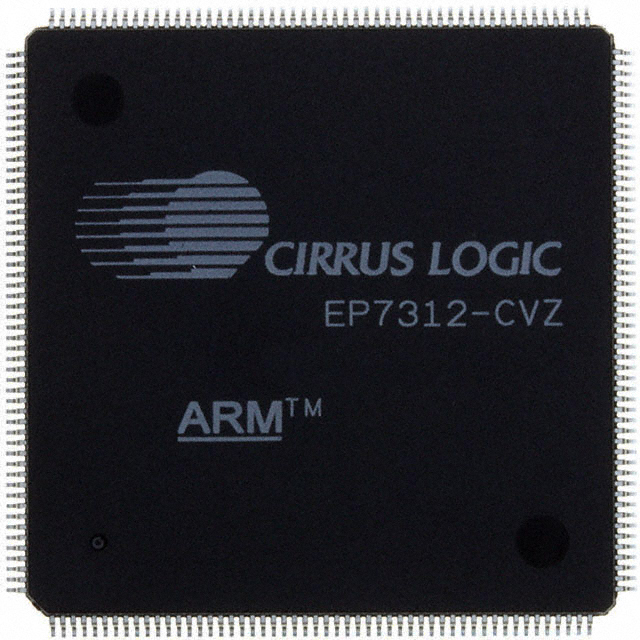

Cirrus Logic Inc. EP7312-CVZ	2.5 V 2.7 V 3 V 3.3 V	70 °C	0 °C	208-LQFP	ARM7TDMI	74 MHz	DAI IrDA SSI UART	Keypad LCD Touchscreen	Hardware ID	SDRAM	Surface Mount	1 32 Bit	208-LQFP
Cirrus Logic Inc. EP7312-CBZ	2.5 V 2.7 V 3 V 3.3 V	70 °C	0 °C	256-PBGA (17x17)	ARM7TDMI	74 MHz	DAI IrDA SSI UART	Keypad LCD Touchscreen	Hardware ID	SDRAM	Surface Mount	1 32 Bit	256-LFBGA

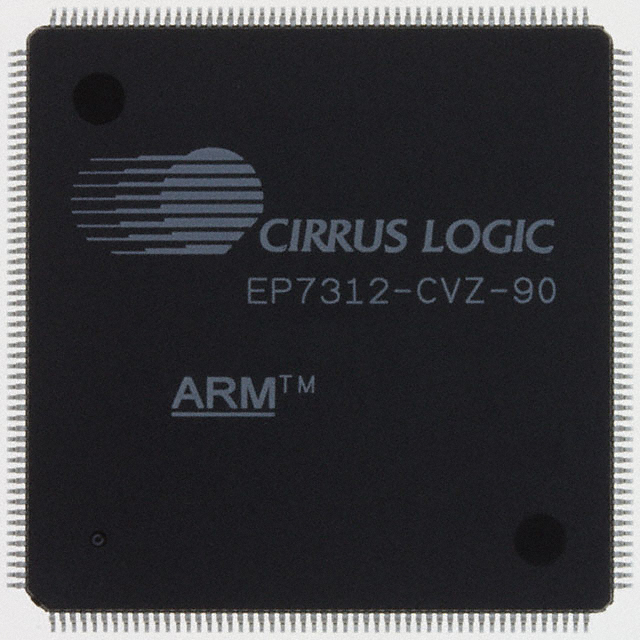

Cirrus Logic Inc. EP7312-CVZ-90	2.5 V 2.7 V 3 V 3.3 V	70 °C	0 °C	208-LQFP	ARM7TDMI	90 MHz	DAI IrDA SSI UART	Keypad LCD Touchscreen	Hardware ID	SDRAM	Surface Mount	1 32 Bit	208-LQFP
Cirrus Logic Inc. EP7312-IR-90	2.5 V 2.7 V 3 V 3.3 V	85 C	-40 ¯C	204-TFBGA (13x13)	ARM7TDMI	90 MHz	DAI IrDA SSI UART	Keypad LCD Touchscreen	Hardware ID	SDRAM	Surface Mount	1 32 Bit	204-TFBGA
Cirrus Logic Inc. EP7312-CV	2.5 V 2.7 V 3 V 3.3 V	70 °C	0 °C	208-LQFP	ARM7TDMI	74 MHz	DAI IrDA SSI UART	Keypad LCD Touchscreen	Hardware ID	SDRAM	Surface Mount	1 32 Bit	208-LQFP

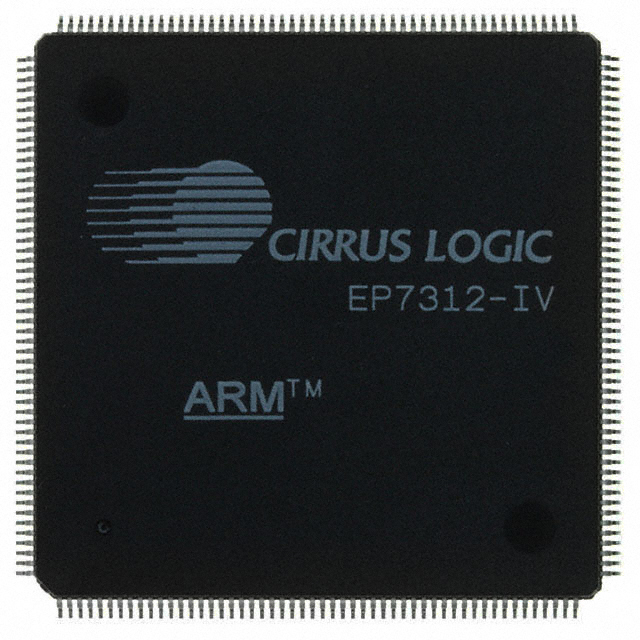

Cirrus Logic Inc. EP7312-IV	2.5 V 2.7 V 3 V 3.3 V	85 C	-40 ¯C	208-LQFP	ARM7TDMI	74 MHz	DAI IrDA SSI UART	Keypad LCD Touchscreen	Hardware ID	SDRAM	Surface Mount	1 32 Bit	208-LQFP

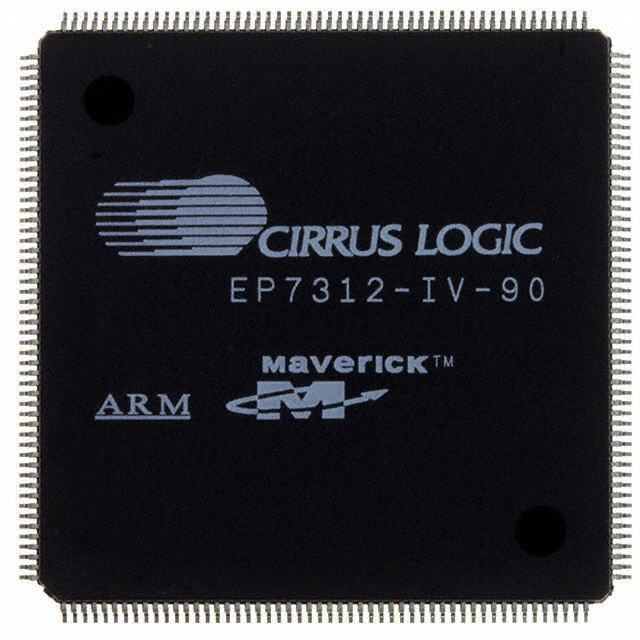

Cirrus Logic Inc. EP7312-IV-90	2.5 V 2.7 V 3 V 3.3 V	85 C	-40 ¯C	208-LQFP	ARM7TDMI	90 MHz	DAI IrDA SSI UART	Keypad LCD Touchscreen	Hardware ID	SDRAM	Surface Mount	1 32 Bit	208-LQFP

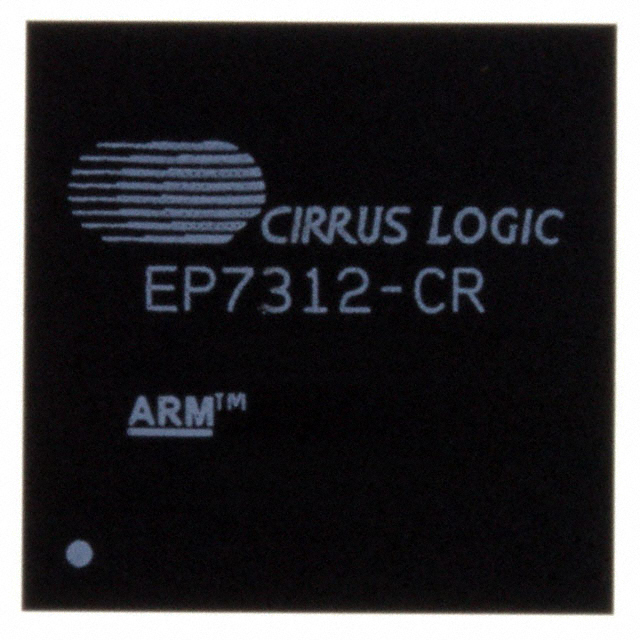

Cirrus Logic Inc. EP7312-CR	2.5 V 2.7 V 3 V 3.3 V	70 °C	0 °C	204-TFBGA (13x13)	ARM7TDMI	74 MHz	DAI IrDA SSI UART	Keypad LCD Touchscreen	Hardware ID	SDRAM	Surface Mount	1 32 Bit	204-TFBGA
