887-056 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 56POS 0.156

...

Part	Read Out	Card Type	Termination Rows	Material - Insulation	Contact Finish Thickness	Contact Finish Thickness	Number of Positions/Bay/Row [custom]	Termination	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Contact Type	Gender	Number of Positions	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Pitch [x]	Pitch [x]	Color	Contact Finish	Flange Feature	Mounting Type	Features	Flange Feature	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 887-056-542-207	Dual	Non Specified - Dual Edge	2	Polyphenylene Sulfide (PPS)	10 Áin	0.25 Ám	28	Wire Wrap	Copper Alloy	125 °C	-40 °C	2	Cantilever	Female	56	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	Black	Gold	Flush Mount M3 Threaded Insert Top Opening	Through Hole
EDAC Inc. 887-056-556-807	Dual	Non Specified - Dual Edge	2	Polyphenylene Sulfide (PPS)	10 Áin	0.25 Ám	28	Solder	Copper Alloy	125 °C	-40 °C	2	Cantilever	Female	56	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	Black	Gold	M3 Threaded Insert Top Mount Opening	Board Edge Straddle Mount	Card Extender

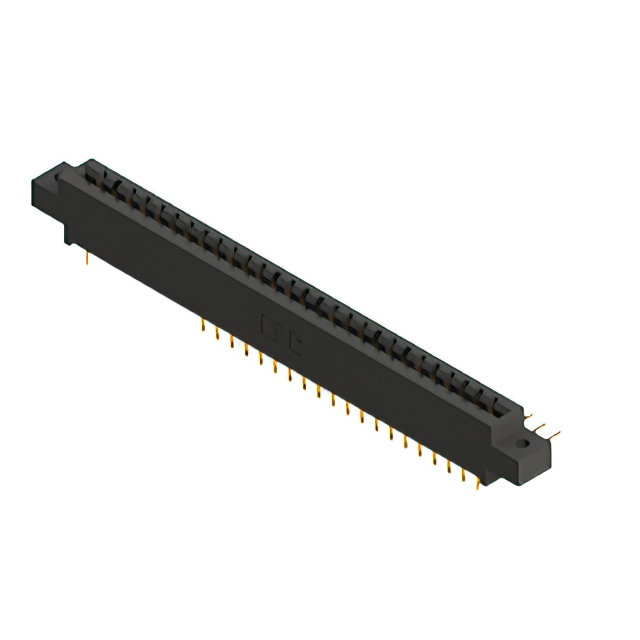

EDAC Inc. 887-056-558-802	Dual	Non Specified - Dual Edge	2	Polyphenylene Sulfide (PPS)	10 Áin	0.25 Ám	28	Solder	Copper Alloy	125 °C	-40 °C	2	Cantilever	Female	56	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	Black	Gold		Through Hole Right Angle		3.25 mm	0.128 in
EDAC Inc. 887-056-556-204	Dual	Non Specified - Dual Edge	2	Polyphenylene Sulfide (PPS)	10 Áin	0.25 Ám	28	Solder	Copper Alloy	125 °C	-40 °C	2	Cantilever	Female	56	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	Black	Gold	Flush Mount Top Opening Unthreaded	Board Edge Straddle Mount	Card Extender			3.96 mm	0.156 in
EDAC Inc. 887-056-541-203	Dual	Non Specified - Dual Edge	2	Polyphenylene Sulfide (PPS)	10 Áin	0.25 Ám	28	Wire Wrap	Copper Alloy	125 °C	-40 °C	2	Cantilever	Female	56	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	Black	Gold	Floating Bobbin Flush Mount	Through Hole				2.95 mm	0.116 in

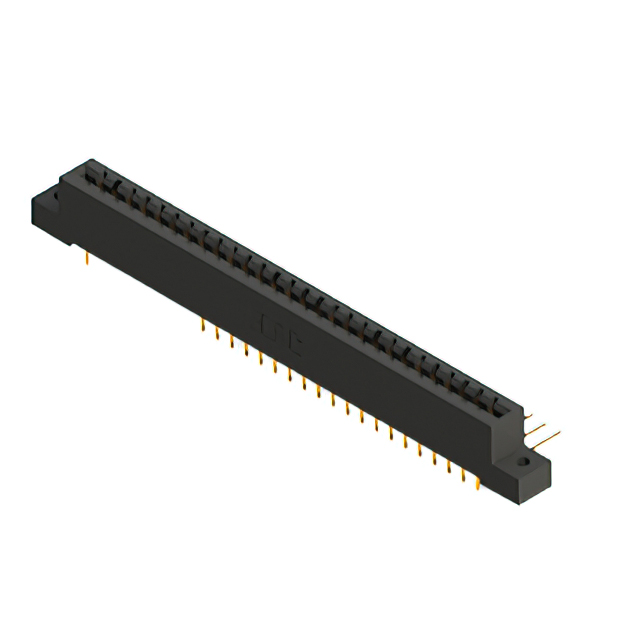

EDAC Inc. 887-056-558-202	Dual	Non Specified - Dual Edge	2	Polyphenylene Sulfide (PPS)	10 Áin	0.25 Ám	28	Solder	Copper Alloy	125 °C	-40 °C	2	Cantilever	Female	56	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	Black	Gold	Flush Mount Top Opening Unthreaded	Through Hole Right Angle				3.25 mm	0.128 "

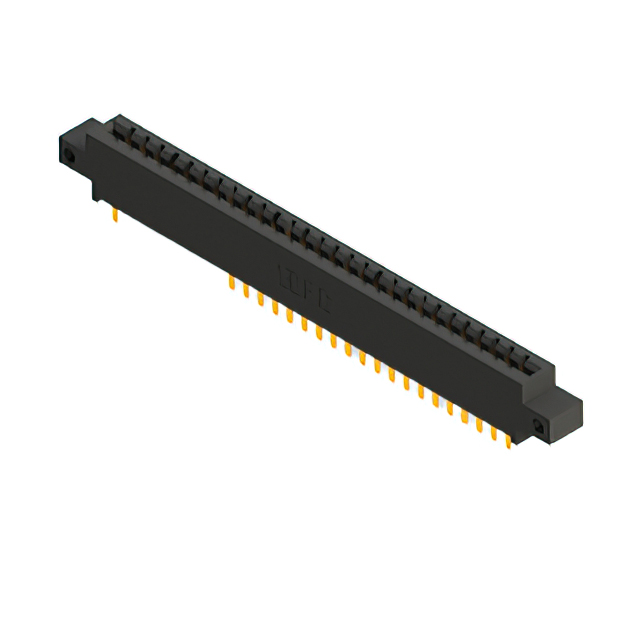

EDAC Inc. 887-056-544-812	Dual	Non Specified - Dual Edge	2	Polyphenylene Sulfide (PPS)	10 Áin	0.25 Ám	28	Wire Wrap	Copper Alloy	125 °C	-40 °C	2	Cantilever	Female	56	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	Black	Gold	Side Mount Opening Unthreaded	Through Hole		3.25 mm	0.128 in
EDAC Inc. 887-056-556-212	Dual	Non Specified - Dual Edge	2	Polyphenylene Sulfide (PPS)	10 Áin	0.25 Ám	28	Solder	Copper Alloy	125 °C	-40 °C	2	Cantilever	Female	56	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	Black	Gold	Flush Mount Side Opening Unthreaded	Board Edge Straddle Mount	Card Extender			3.25 mm	0.128 "
EDAC Inc. 887-056-559-208	Dual	Non Specified - Dual Edge	2	Polyphenylene Sulfide (PPS)	10 Áin	0.25 Ám	28	Solder	Copper Alloy	125 °C	-40 °C	2	Cantilever	Female	56	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	Black	Gold	4-40 Flush Mount Threaded Insert Top Opening	Through Hole Right Angle
EDAC Inc. 887-056-544-202	Dual	Non Specified - Dual Edge	2	Polyphenylene Sulfide (PPS)	10 Áin	0.25 Ám	28	Wire Wrap	Copper Alloy	125 °C	-40 °C	2	Cantilever	Female	56	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	Black	Gold	Flush Mount Top Opening Unthreaded	Through Hole				3.25 mm	0.128 "
