1241.6924 Series
Manufacturer: SCHURTER Inc.
Beta
⌘K
SWITCH PUSHBUTTON DPDT 5A 125V
| Part | Mechanical Life | Electrical Life | Switch Function | Illumination Type, Color | Panel Cutout Dimensions [diameter] | Type | Ingress Protection | Circuit | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Marking | Actuator Type | Illumination Voltage (Nominal) | Color - Actuator/Cap | Termination Style | Voltage Rating - AC | Mounting Type | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

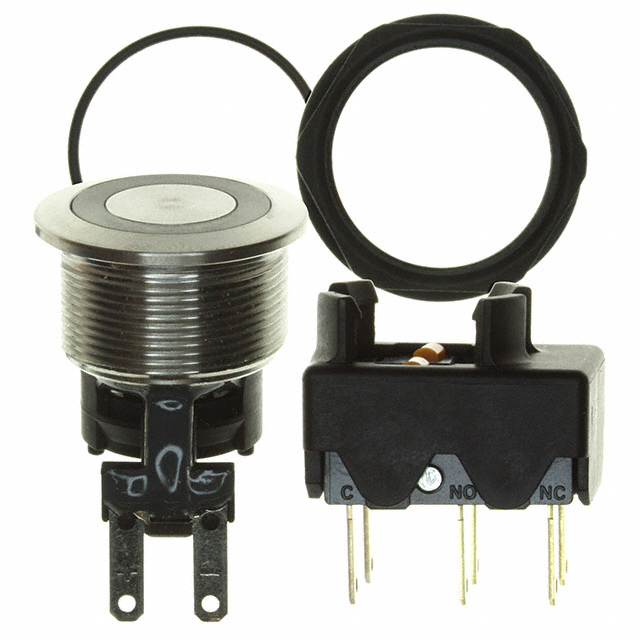

 SCHURTER Inc. | 1500000 Cycles | 200000 Cycles | On-Mom | Green LED | 19.1 mm | Anti-Vandal Illuminated | IP40 | DPDT | 85 °C | -25 °C | No Marking | Button Flush Round | 24 V | Silver | Quick Connect - 0.110" (2.8mm) | 125 V | Panel Mount Front | 5 A |

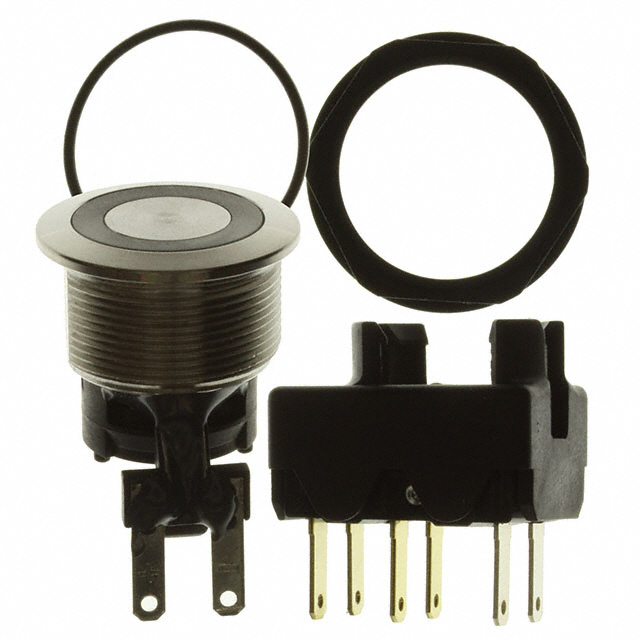

 SCHURTER Inc. | 1500000 Cycles | 200000 Cycles | On-Mom | LED Red | 19.1 mm | Anti-Vandal Illuminated | IP40 | DPDT | 85 °C | -25 °C | No Marking | Button Flush Round | 24 V | Silver | Quick Connect - 0.110" (2.8mm) | 125 V | Panel Mount Front | 5 A |
