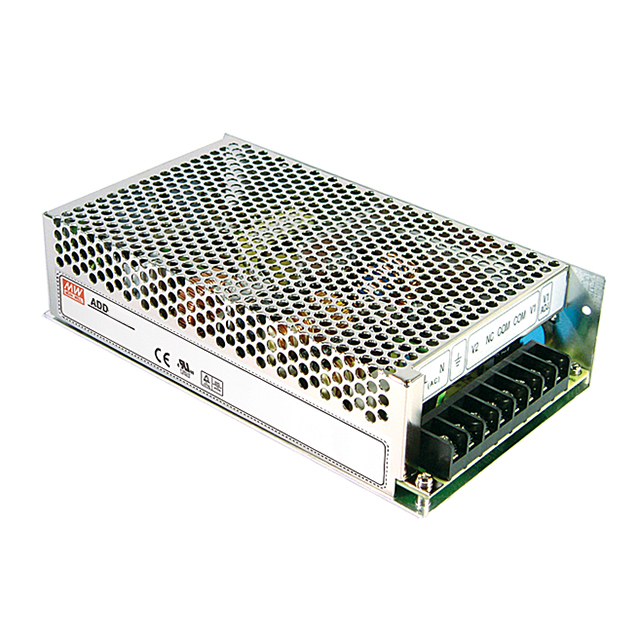

ADS-155 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
AC/DC CONVERTER 48V 5V 154W
| Part | Minimum Load Required | Voltage - Output 1 | Type | Features | Current - Output 2 | Power (Watts) | Voltage - Output 2 | Number of Outputs | Mounting Type | Approval Agency | Voltage - Isolation | Current - Output 1 | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Input [Max] | Voltage - Input [Min] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Applications | Efficiency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | 48 V | Enclosed | Adjustable Output PFC Universal Input | 3 A | 154 W | 5 V | 2 | Chassis Mount | CB CE cURus TUV | 3000 V | 2.9 A | -10 °C | 60 °C | 264 VAC 370 VDC | 88 VAC 124 VDC | 50 mm | 199 mm | 110 mm | 1.97 " | 7.83 in | 4.33 " | ITE (Commercial) | ||
MEAN WELL USA Inc. | 12 V | Enclosed | Adjustable Output PFC Universal Input | 3 A | 153 W | 5 V | 2 | Chassis Mount | CB CE cURus TUV | 3000 V | 11.5 A | -10 °C | 60 °C | 264 VAC 370 VDC | 88 VAC 124 VDC | 50 mm | 199 mm | 110 mm | 1.97 " | 7.83 in | 4.33 " | ITE (Commercial) | 77 % | |
MEAN WELL USA Inc. | 24 V | Enclosed | Adjustable Output PFC Universal Input | 3 A | 154 W | 5 V | 2 | Chassis Mount | CB CE cURus TUV | 3000 V | 5.8 A | -10 °C | 60 °C | 264 VAC 370 VDC | 88 VAC 124 VDC | 50 mm | 199 mm | 110 mm | 1.97 " | 7.83 in | 4.33 " | ITE (Commercial) |
