119K132 Series
Manufacturer: Rosenberger
Beta
⌘K
PSMP ADAPTER
| Part | Body Finish | Operating Temperature [Max] | Operating Temperature [Min] | Center Contact Material | Dielectric Material | Body Material | Insertion Loss | Conversion Type | Style | Adapter Series | Center Contact Plating | Convert From (Adapter End) | Fastening Type | Fastening Type | Impedance | Mounting Type | Adapter Type | Frequency - Max [Max] | Center Gender | Convert To (Adapter End) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

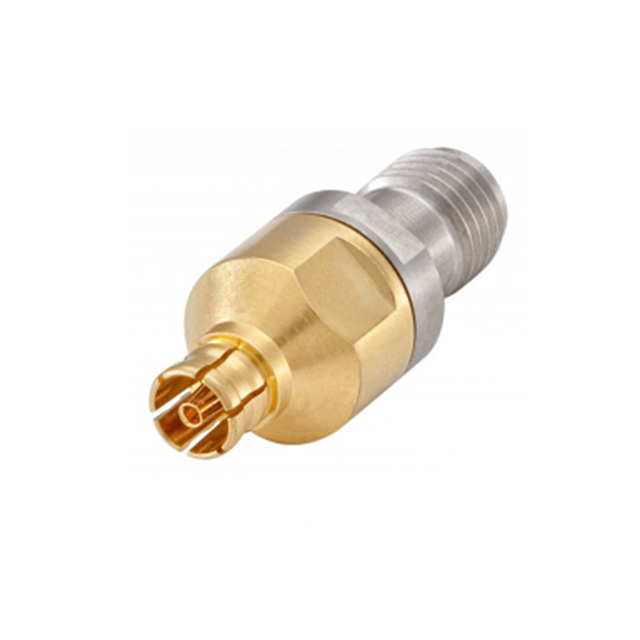

 Rosenberger | Gold | 155 C | -55 C | Beryllium Copper | Polytetrafluoroethylene (PTFE) | Beryllium Copper Stainless Steel | 0.16 dB | Same Series | Straight | PSMP to SMA | Gold | Female Socket PSMP Jack | Snap-On | Snap-On | 50 Ohms | Free Hanging (In-Line) | Plug to Jack | 10 GHz | ||
 Rosenberger | Gold Passivated | 155 C | -55 C | Beryllium Copper | Polytetrafluoroethylene (PTFE) | Beryllium Copper Stainless Steel | Between Series | Straight | SMA to PSMP | Gold | Female Socket PSMP Jack | Snap-On Threaded | 50 Ohms | Free Hanging (In-Line) | Jack to Jack | 10 GHz | Female to Female | SMA Jack Female Socket |
