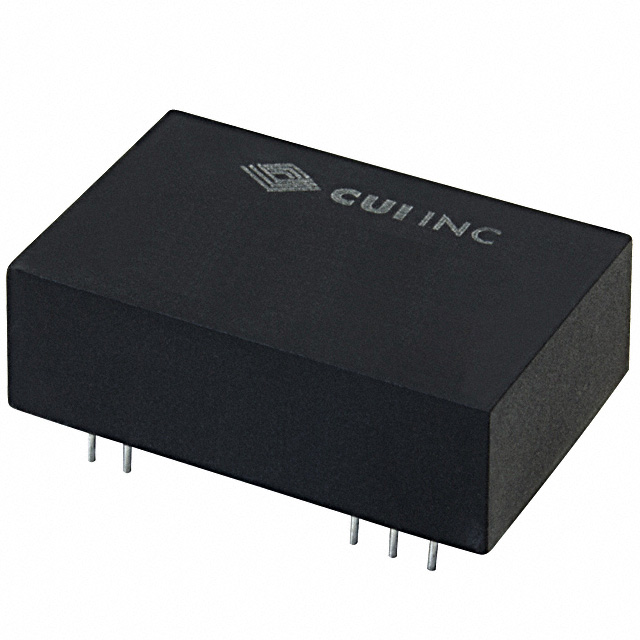

PVB3-D12 Series

Manufacturer: CUI Inc.

Catalog

DC DC CONVERTER +/-15V 3W

Part	Current - Output (Max)	Current - Output (Max)	Voltage - Input (Max) [Max]	Approval Agency	Applications	Voltage - Isolation	Voltage - Output 1	Voltage - Output 2	Power (Watts)	Voltage - Input (Min) [Min]	Standard Number	Type	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Mounting Type	Features	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Number of Outputs	Efficiency	Current - Output (Max) [Max]
CUI Inc. PVB3-D12-D15-D	100 mA	100 mA	18 V	EN	ITE (Commercial)	3000 V	15 V	-15 V	3 W	9 V	55024 55032	Isolated Module	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	Through Hole	OCP SCP	24-DIP Module 10 Leads	-40 C	105 ░C	2
CUI Inc. PVB3-D12-S5-D			18 V		ITE (Commercial)	3000 V	5 V		3 W	9 V		Isolated Module	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	Through Hole	OCP SCP	24-DIP Module 10 Leads	-40 C	105 ░C	1	80 %	600 mA
CUI Inc. PVB3-D12-D5-D			18 V	EN	ITE (Commercial)	3000 V	5 V	-5 V	3 W	9 V	55024 55032	Isolated Module	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	Through Hole	OCP SCP	24-DIP Module 10 Leads	-40 C	105 ░C	2	80 %	0.3 A
