BPRR Series

Power Inductors - SMD Chilisin Power - Inductor (IND) Ferrite SMD Shielded Type

Manufacturer: Pulse Electronics

Catalog

Power Inductors - SMD Chilisin Power - Inductor (IND) Ferrite SMD Shielded Type

Catalog

Power Inductors - SMD Chilisin Power - Inductor (IND) Ferrite SMD Shielded Type

Part	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Operating Temperature [Max]	Operating Temperature [Min]	Current - Saturation (Isat)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Inductance	Tolerance	Mounting Type	Shielding	Current Rating (Amps)	Material - Core	Inductance Frequency - Test	DC Resistance (DCR) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Pulse Electronics BPRR00101051151T00	Nonstandard	0.201 in	5.1 mm	125 °C	-40 C	1.12 A	0.394 in	10.1 mm	10 mm	0.398 in	150 µH	30 %	Surface Mount	Shielded	1.1 A	Ferrite	100 kHz
Pulse Electronics BPRR00101031560T00	Nonstandard	0.122 in	3.1 mm	125 °C	-40 C	1.36 A	0.394 in	10.1 mm	10 mm	0.398 in	56 µH	30 %	Surface Mount	Shielded	1.15 A	Ferrite	100 kHz	325 mOhm
Pulse Electronics BPRR00101031151M00	Nonstandard	0.122 in	3.1 mm	125 °C	-40 C	840 mA	0.394 in	10.1 mm	10 mm	0.398 in	150 µH	20 %	Surface Mount	Shielded	0.51 A	Ferrite	100 kHz	871 mOhm
Pulse Electronics BPRR00101051221K00	Nonstandard	0.201 in	5.1 mm	125 °C	-40 C	940 mA	0.394 in	10.1 mm	10 mm	0.398 in	220 µH	10 %	Surface Mount	Shielded	940 mA	Ferrite	100 kHz	500 mOhm
Pulse Electronics BPRR00101041150TA0	Nonstandard			125 °C	-40 C	4.15 A	0.394 in	10.1 mm	10 mm	0.398 in	15 µH	30 %	Surface Mount	Shielded	3.5 A	Ferrite	100 kHz	44.5 mOhm	4.1 mm	0.161 in
Pulse Electronics BPRR00101051330MA0	Nonstandard	0.201 in	5.1 mm	125 °C	-40 C	2.8 A	0.394 in	10.1 mm	10 mm	0.398 in	33 µH	20 %	Surface Mount	Shielded	2.6 A	Ferrite	100 kHz	84 mOhm
Pulse Electronics BPRR00101051101MA0	Nonstandard	0.201 in	5.1 mm	125 °C	-40 C	1.6 A	0.394 in	10.1 mm	10 mm	0.398 in	100 µH	20 %	Surface Mount	Shielded	1.4 A	Ferrite	100 kHz	253 mOhm

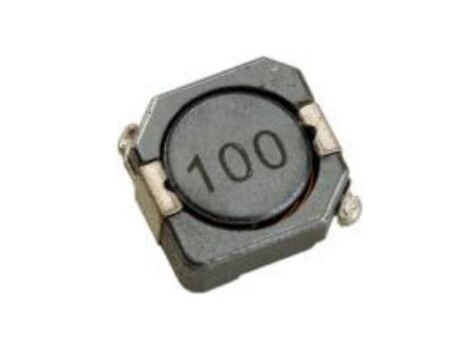

Pulse Electronics BPRR00101041270M00	Nonstandard			125 °C	-40 C	2.6 A	0.394 in	10.1 mm	10 mm	0.398 in	27 µH	20 %	Surface Mount	Shielded	2.3 A	Ferrite	100 kHz	88 mOhm	4.1 mm	0.161 in
Pulse Electronics BPRR001010311R5T00	Nonstandard	0.122 in	3.1 mm	125 °C	-40 C	8 A	0.394 in	10.1 mm	10 mm	0.398 in	1.5 µH	30 %	Surface Mount	Shielded	5.8 A	Ferrite	100 kHz	11 mOhm
Pulse Electronics BPRR001010512R5TA0	Nonstandard	0.201 in	5.1 mm	125 °C	-40 C	10 A	0.394 in	10.1 mm	10 mm	0.398 in	2.5 µH	30 %	Surface Mount	Shielded	8 A	Ferrite	100 kHz	12 mOhm
