RS022R05 Series

Catalog

SWITCH TACTILE SPST-NO 0.05A 12V

Part	Termination Style	Operating Force	Mounting Type	Actuator Length, Right Angle	Contact Rating @ Voltage	Actuator Type	Circuit	Switch Travel	Actuator Orientation	Switch Function	Illumination	Actuator Material	Mechanical Life	Actuator Length, Right Angle [x]	Outline [x]	Outline [y]
Littelfuse/Commercial Vehicle Products RS022R05B3	PC Pin	0.25 kgf	Through Hole Right Angle	3.85 mm	0.05 A 12 VDC	Standard	SPST-NO	0.25 mm	Side Actuated	Off-Mom	Non-Illuminated	Polybutylene Terephthalate (PBT)
Littelfuse/Commercial Vehicle Products RS022R05CH	PC Pin	100 gf	Through Hole Right Angle		0.05 A 12 VDC	Standard	SPST-NO	0.25 mm	Side Actuated	Off-Mom	Non-Illuminated	Polybutylene Terephthalate (PBT)	100000 Cycles	5.85 mm

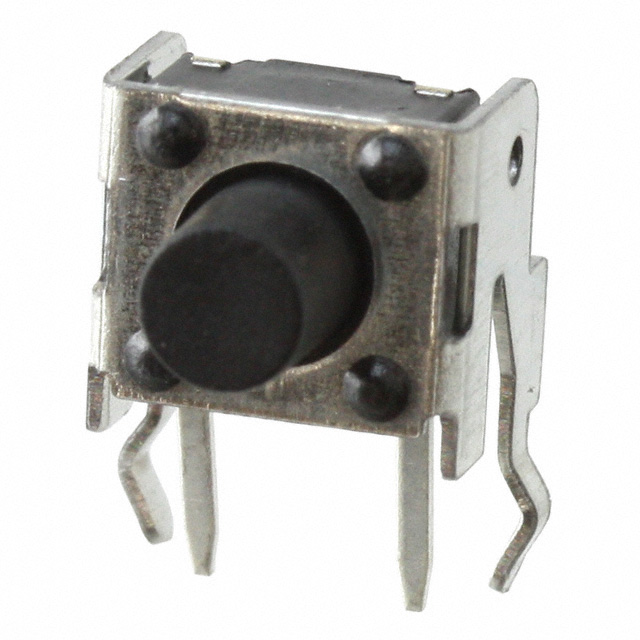

Littelfuse/Commercial Vehicle Products RS-022R05C1-PA	PC Pin		Through Hole Right Angle		0.05 A 12 VDC	Standard	SPST-NO	0.25 mm	Side Actuated	Off-Mom	Non-Illuminated	Nylon Polyamide (PA)	100000 Cycles	5.85 mm	7.5 mm	6.5 mm
Littelfuse/Commercial Vehicle Products RS022R05B1	PC Pin		Through Hole Right Angle	3.85 mm	0.05 A 12 VDC	Standard	SPST-NO	0.25 mm	Side Actuated	Off-Mom	Non-Illuminated	Polybutylene Terephthalate (PBT)	100000 Cycles
Littelfuse/Commercial Vehicle Products RS022R05E1	PC Pin		Through Hole Right Angle	6.85 mm	0.05 A 12 VDC	Standard	SPST-NO	0.25 mm	Side Actuated	Off-Mom	Non-Illuminated	Polybutylene Terephthalate (PBT)	100000 Cycles
Littelfuse/Commercial Vehicle Products RS022R05A3	PC Pin	0.25 kgf	Through Hole Right Angle	3.15 mm	0.05 A 12 VDC	Standard	SPST-NO	0.25 mm	Side Actuated	Off-Mom	Non-Illuminated	Polybutylene Terephthalate (PBT)
