D09S24 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

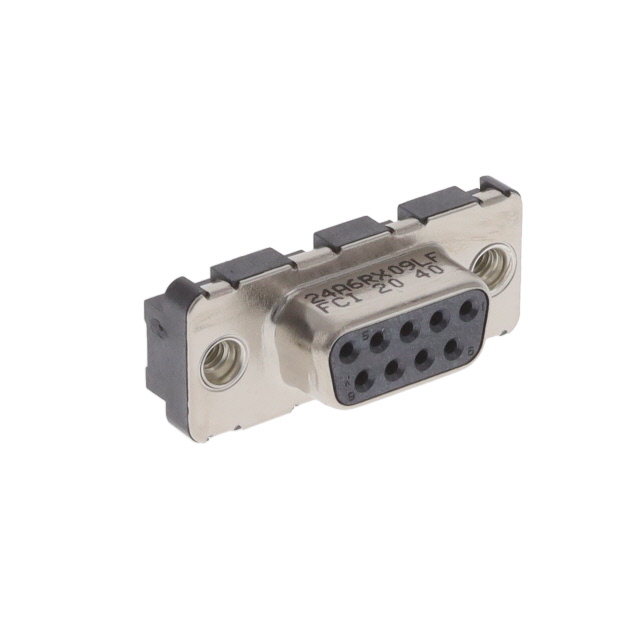

CONN D-SUB RCPT 9POS VERT SLDR
| Part | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Termination | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Shell Material, Finish | Mounting Type | Number of Rows | Contact Material | Connector Type | Flange Feature | Connector Style | Number of Positions | Color | Contact Finish Thickness | Contact Finish | Contact Type | Dielectric Material | Material Flammability Rating | Contact Finish Thickness | Contact Finish Thickness | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol ICC (FCI) | 300 VDC | -55 °C | 125 °C | 5 A | Solder | DE E | 1 | Steel Tin-Nickel Plated | Through Hole | 2 | Phosphor Bronze | Receptacle Female Sockets | Female Screwlock (M3) Mating Side | D-Sub | 9 | Black | Flash | Gold | Signal | Polybutylene Terephthalate (PBT) | UL94 V-0 | ||||
Amphenol ICC (FCI) | 300 VDC | -55 °C | 125 °C | 5 A | Solder | DE E | 1 | Through Hole | 2 | Phosphor Bronze | Receptacle Female Sockets | Housing/Shell (4-40) | D-Sub | 9 | Black | Gold | Signal | Polybutylene Terephthalate (PBT) | UL94 V-0 | 0.76 Ám | 30 Áin | ||||
Amphenol ICC (FCI) | 300 VDC | -55 °C | 125 °C | 5 A | Solder | DE E | 1 | Through Hole | 2 | Phosphor Bronze | Receptacle Female Sockets | Housing/Shell (4-40) | D-Sub | 9 | Black | Flash | Gold | Signal | Polybutylene Terephthalate (PBT) | UL94 V-0 | |||||
Amphenol ICC (FCI) | 300 VDC | -55 °C | 125 °C | 5 A | Solder | DE E | 1 | Nickel Plated Steel | Through Hole | 2 | Brass | Receptacle Female Sockets | Housing/Shell (4-40) | D-Sub | 9 | Black | Gold | Signal | Liquid Crystal Polymer (LCP) Glass Filled | UL94 V-0 | 0.76 Ám | 30 Áin | Board Guide | ||
Amphenol ICC (FCI) | 300 VDC | -55 °C | 125 °C | 5 A | Solder | DE E | 1 | Through Hole | 2 | Phosphor Bronze | Receptacle Female Sockets | Housing/Shell (Unthreaded) | D-Sub | 9 | Black | Flash | Gold | Signal | Polybutylene Terephthalate (PBT) | UL94 V-0 | |||||
Amphenol ICC (FCI) | 300 VDC | 5 A | Solder Paste | DE E | 1 | Nickel Plated Steel | Through Hole | 2 | Copper Alloy | Receptacle Female Sockets | Female Screwlock (4-40) Mating Side | D-Sub | 9 | Black | Gold | Signal | Liquid Crystal Polymer (LCP) Glass Filled | UL94 V-0 | 0.76 Ám | 30 Áin | Board Guide | -55 °C | |||
Amphenol ICC (FCI) | 300 VDC | -55 °C | 125 °C | 5 A | Solder | DE E | 1 | Steel Tin-Nickel Plated | Through Hole | 2 | Phosphor Bronze | Receptacle Female Sockets | Female Screwlock (4-40) Mating Side | D-Sub | 9 | Black | Flash | Gold | Signal | Polybutylene Terephthalate (PBT) | UL94 V-0 | ||||
Amphenol ICC (FCI) | 300 VDC | -55 °C | 125 °C | 5 A | Solder | DE E | 1 | Nickel Plated Steel | Through Hole | 2 | Copper Alloy | Receptacle Female Sockets | Female Screwlock (4-40) Mating Side | D-Sub | 9 | Black | Gold | Signal | Liquid Crystal Polymer (LCP) Glass Filled | UL94 V-0 | 0.76 Ám | 30 Áin | Board Guide | ||
 Amphenol ICC (FCI) | 300 VDC | 5 A | Solder Paste | DE E | 1 | Nickel Plated Steel | Through Hole | 2 | Copper Alloy | Receptacle Female Sockets | Housing/Shell (4-40) | D-Sub | 9 | Black | Gold | Signal | Liquid Crystal Polymer (LCP) Glass Filled | UL94 V-0 | 0.76 Ám | 30 Áin | Board Guide | -55 °C | |||
Amphenol ICC (FCI) | 300 VDC | -55 °C | 125 °C | 5 A | Solder | DE E | 1 | Through Hole | 2 | Phosphor Bronze | Receptacle Female Sockets | Housing/Shell (M3) | D-Sub | 9 | Black | Gold | Signal | Polybutylene Terephthalate (PBT) | UL94 V-0 | 0.76 Ám | 30 Áin |
