LCC300 Series

Catalog

CONN TERM RECT TONG 300 MCM

Part	Diameter - Barrel OD [diameter]	Diameter - Barrel OD [diameter]	Contact Finish	Diameter - Barrel ID [diameter]	Diameter - Barrel ID [diameter]	Contact Material	Insulation	Terminal Style	Terminal Type	Mounting Type	Wire Gauge	Termination	Width - Outer Edges [x]	Width - Outer Edges [x]	Length - Overall [x]	Length - Overall	Tab Thickness	Tab Thickness	Color	Diameter - Ring ID [diameter]	Diameter - Ring ID [diameter]	Stud/Tab Size	Length - Overall [x]	Diameter - Ring ID	Diameter - Ring ID

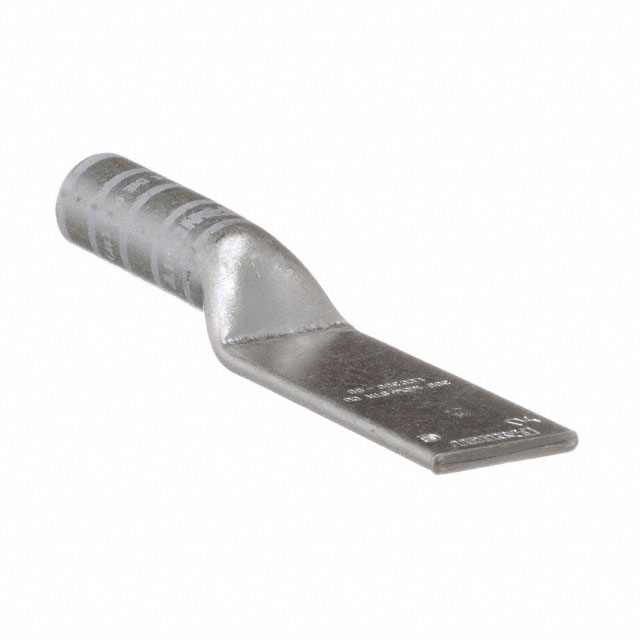

Panduit Corp LCC300-00-X	20.57 mm	0.81 in	Electro-Tin	0.65 in	16.51 mm	Copper	Non-Insulated	No Stud Hole	Rectangular Tongue	Free Hanging (In-Line)	300 MCM (kcmil)	Barrel Crimp	30.23 mm	1.19 in	5.94 in	150.88 mm	4.06 mm	0.16 in	White
Panduit Corp LCC300-38DH-X	20.57 mm	0.81 in	Electro-Tin	0.65 in	16.51 mm	Copper	Non-Insulated	Two Stud Holes	Rectangular Tongue	Free Hanging (In-Line)	300 MCM (kcmil)	Barrel Crimp	30.23 mm	1.19 in			4.06 mm	0.16 in	White	10.41 mm	0.41 "	0.375 Stud

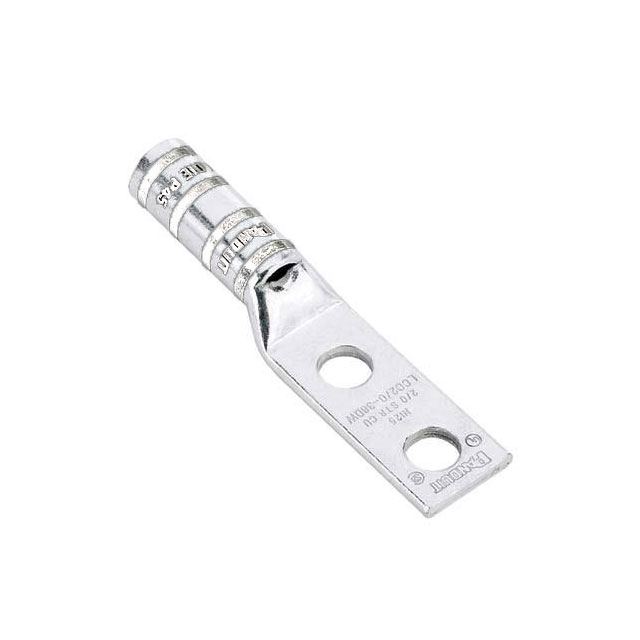

Panduit Corp LCC300-38DW-X	20.57 mm	0.81 in	Electro-Tin	0.65 in	16.51 mm	Copper	Non-Insulated	Two Stud Holes	Rectangular Tongue	Free Hanging (In-Line)	300 MCM (kcmil)	Barrel Crimp	30.23 mm	1.19 in	4.54 "		4.06 mm	0.16 in	White	10.41 mm	0.41 "	0.375 Stud	115.32 mm
Panduit Corp LCC300-38DF-X	20.57 mm	0.81 in	Electro-Tin	0.65 in	16.51 mm	Copper	Non-Insulated	Two Stud Holes	Rectangular Tongue	Free Hanging (In-Line) Right Angle	300 MCM (kcmil)	Barrel Crimp	30.23 mm	1.19 in			4.06 mm	0.16 in	White	10.41 mm	0.41 "	0.375 Stud

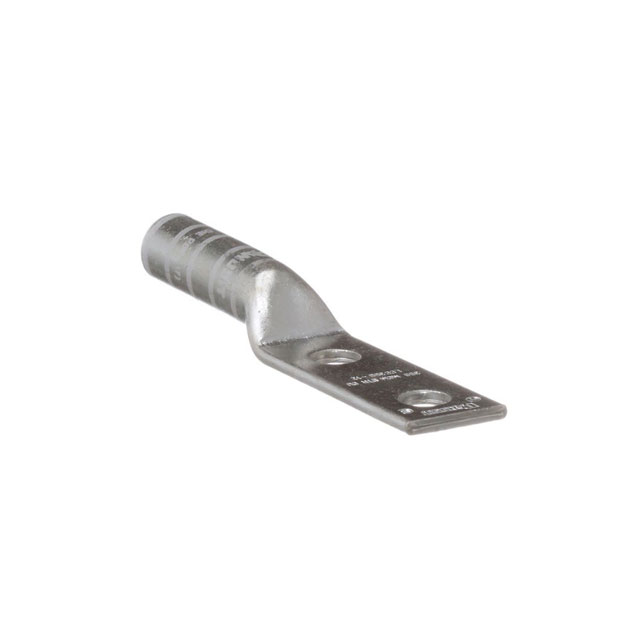

Panduit Corp LCC300-12-X	20.57 mm	0.81 in	Electro-Tin	0.65 in	16.51 mm	Copper	Non-Insulated	Two Stud Holes	Rectangular Tongue	Free Hanging (In-Line)	300 MCM (kcmil)	Barrel Crimp	30.23 mm	1.19 in	5.94 in	150.88 mm	4.06 mm	0.16 in	White			0.5 Stud		13.46 mm	0.53 in
