2317212 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

6P,2MM,REC,IDC,LATCH,26-30,STRIP

Part	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Wire Type	Fastening Type	Contact Finish	Number of Rows	Wire Gauge [Min]	Wire Gauge [Max]	Contact Type	Mounting Type	Cable Termination	Pitch [x]	Pitch [x]	Number of Positions	Color

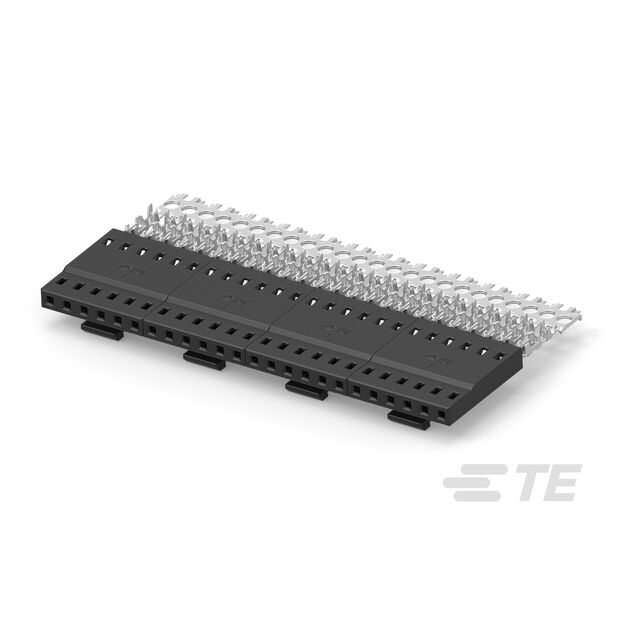

TE Connectivity Raychem Cable Protection 2317212-6	50 µin	1.27 µm	Receptacle	Discrete or Ribbon Cable	Latch Lock	Tin	1	26 AWG	30 AWG	Female Socket	Free Hanging (In-Line)	IDC	0.079 in	2 mm	6	Black

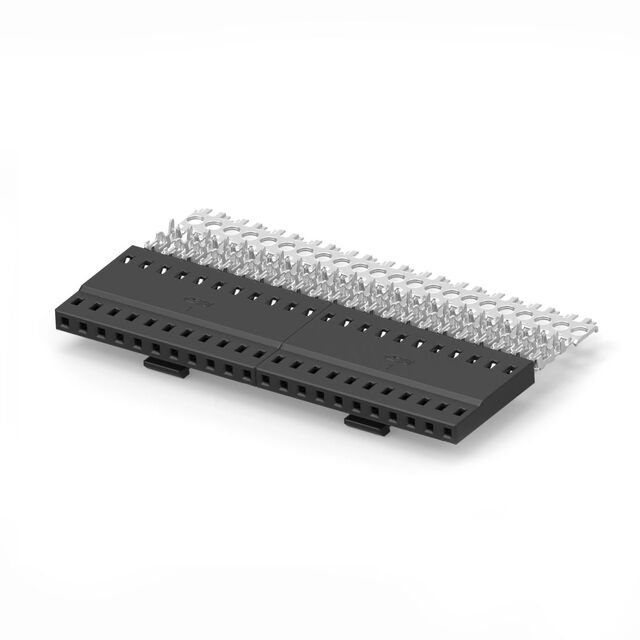

TE Connectivity Raychem Cable Protection 1-2317212-1	50 µin	1.27 µm	Receptacle	Discrete or Ribbon Cable	Latch Lock	Tin	1	26 AWG	30 AWG	Female Socket	Free Hanging (In-Line)	IDC	0.079 in	2 mm	11	Black
TE Connectivity Raychem Cable Protection 1-2317212-2	50 µin	1.27 µm	Receptacle	Discrete or Ribbon Cable	Latch Lock	Tin	1	26 AWG	30 AWG	Female Socket	Free Hanging (In-Line)	IDC	0.079 in	2 mm	12	Black
TE Connectivity Raychem Cable Protection 2317212-8	50 µin	1.27 µm	Receptacle	Discrete or Ribbon Cable	Latch Lock	Tin	1	26 AWG	30 AWG	Female Socket	Free Hanging (In-Line)	IDC	0.079 in	2 mm	8	Black

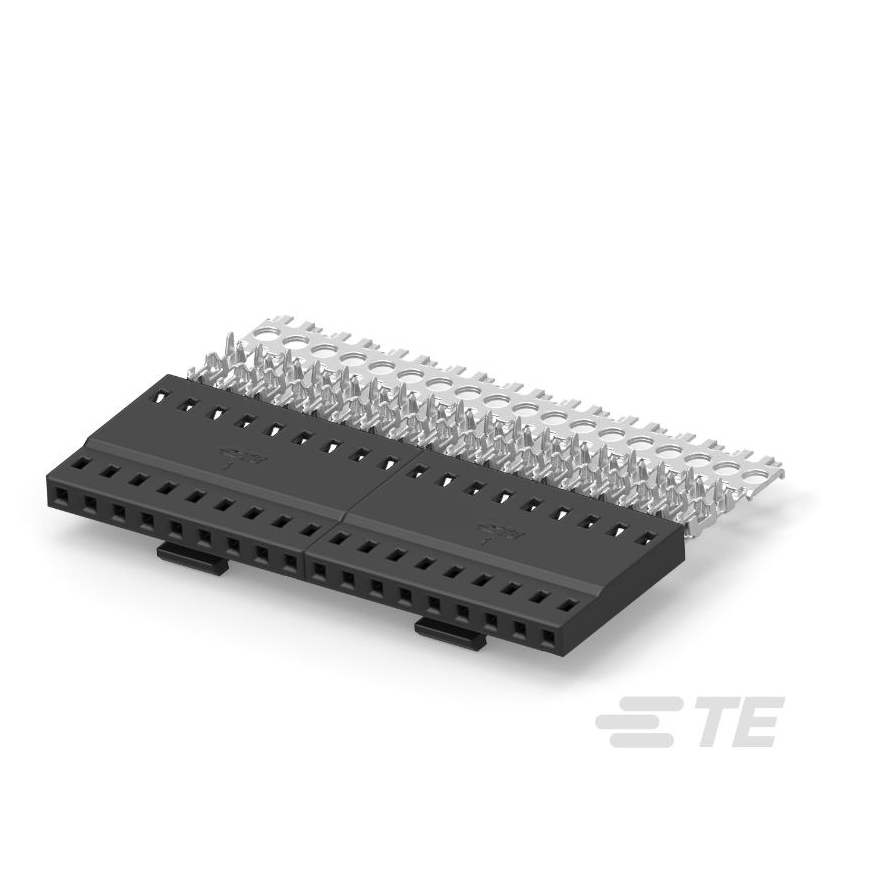

TE Connectivity Raychem Cable Protection 2317212-9	50 µin	1.27 µm	Receptacle	Discrete or Ribbon Cable	Latch Lock	Tin	1	26 AWG	30 AWG	Female Socket	Free Hanging (In-Line)	IDC	0.079 in	2 mm	9	Black

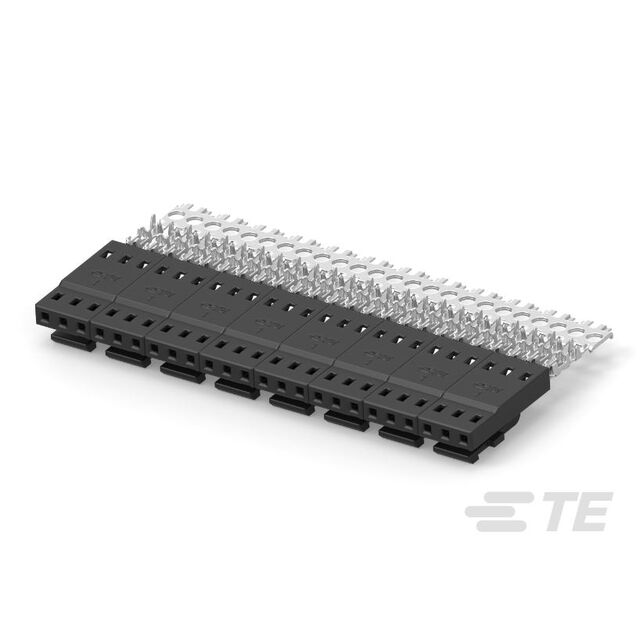

TE Connectivity Raychem Cable Protection 2317212-3	30 Áin	0.76 Ám	Receptacle	Discrete or Ribbon Cable	Latch Lock	Gold	1	26 AWG	30 AWG	Female Socket	Free Hanging (In-Line)	IDC	0.079 in	2 mm		Black
TE Connectivity Raychem Cable Protection 2317212-7	50 µin	1.27 µm	Receptacle	Discrete or Ribbon Cable	Latch Lock	Tin	1	26 AWG	30 AWG	Female Socket	Free Hanging (In-Line)	IDC	0.079 in	2 mm	7	Black
