2823400 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

5P,2MM,PL HDR,SRVT,2.8,SN,TB

Part	Insulation Color	Contact Finish - Post	Current Rating (Amps)	Termination	Style	Insulation Material	Voltage Rating	Contact Length - Post [x]	Contact Length - Post [x]	Pitch - Mating [x]	Pitch - Mating [x]	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shrouding	Insulation Height [custom]	Insulation Height [custom]	Contact Type	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Mating	Contact Length - Mating	Fastening Type	Contact Shape	Mounting Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Rows	Connector Type	Contact Material	Number of Positions

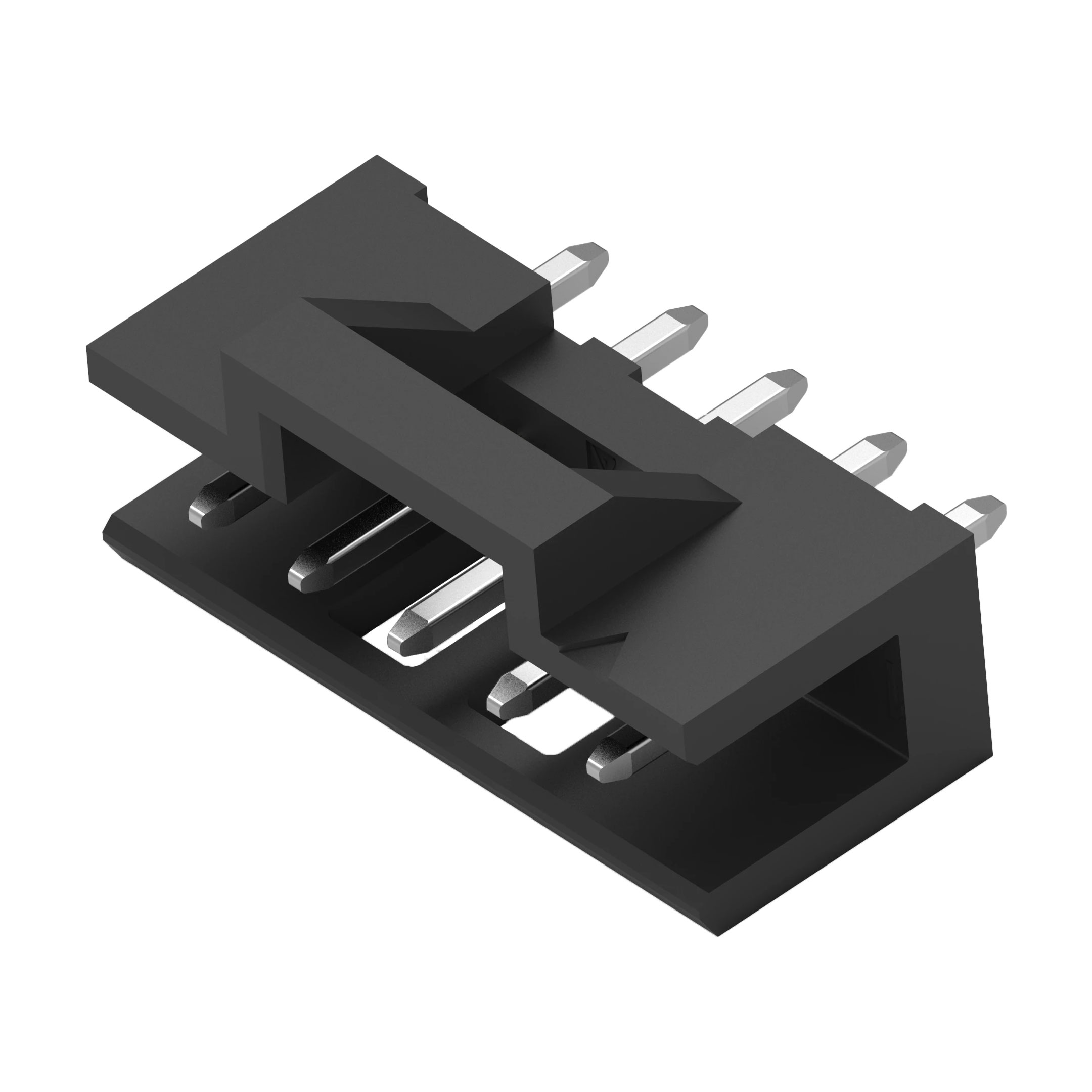

TE Connectivity Raychem Cable Protection 2823400-5	Black	Tin	2 A	Solder	Board to Board Cable	Thermoplastic	125 VAC	0.11 in	2.8 mm	0.079 in	2 mm	All	118.1 µin	3 µm	Shrouded - 2 Wall	5.51 mm	0.217 in	Male Pin	UL94 V-0	-40 °C	105 ░C	4 mm	0.157 in	Push-Pull	Square	Through Hole	0.3 µm	12 µin	1	Header	Phosphor Bronze
TE Connectivity Raychem Cable Protection 2823400-4	Black	Tin	2 A	Solder	Board to Board Cable	Thermoplastic	125 VAC	0.11 in	2.8 mm	0.079 in	2 mm	All	118.1 µin	3 µm	Shrouded - 2 Wall	5.51 mm	0.217 in	Male Pin	UL94 V-0	-40 °C	105 ░C	4 mm	0.157 in	Push-Pull	Square	Through Hole	0.3 µm	12 µin	1	Header	Phosphor Bronze	4

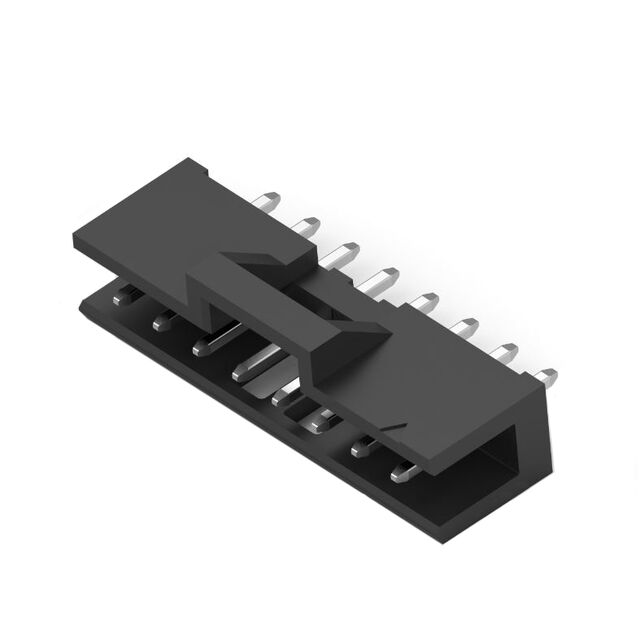

TE Connectivity Raychem Cable Protection 2823400-8	Black	Tin	2 A	Solder	Board to Board Cable	Thermoplastic	125 VAC	0.11 in	2.8 mm	0.079 in	2 mm	All	118.1 µin	3 µm	Shrouded - 2 Wall	5.51 mm	0.217 in	Male Pin	UL94 V-0	-40 °C	105 ░C	4 mm	0.157 in	Push-Pull	Square	Through Hole	0.3 µm	12 µin	1	Header	Phosphor Bronze	8
TE Connectivity Raychem Cable Protection 1-2823400-2	Black	Tin	2 A	Solder	Board to Board Cable	Thermoplastic	125 VAC	0.11 in	2.8 mm	0.079 in	2 mm	All	118.1 µin	3 µm	Shrouded - 2 Wall	5.51 mm	0.217 in	Male Pin	UL94 V-0	-40 °C	105 ░C	4 mm	0.157 in	Push-Pull	Square	Through Hole	0.3 µm	12 µin	1	Header	Phosphor Bronze	12
TE Connectivity Raychem Cable Protection 1-2823400-0	Black	Tin	2 A	Solder	Board to Board Cable	Thermoplastic	125 VAC	0.11 in	2.8 mm	0.079 in	2 mm	All	118.1 µin	3 µm	Shrouded - 2 Wall	5.51 mm	0.217 in	Male Pin	UL94 V-0	-40 °C	105 ░C	4 mm	0.157 in	Push-Pull	Square	Through Hole	0.3 µm	12 µin	1	Header	Phosphor Bronze	10
TE Connectivity Raychem Cable Protection 2823400-6	Black	Tin	2 A	Solder	Board to Board Cable	Thermoplastic	125 VAC	0.11 in	2.8 mm	0.079 in	2 mm	All	118.1 µin	3 µm	Shrouded - 2 Wall	5.51 mm	0.217 in	Male Pin	UL94 V-0	-40 °C	105 ░C	4 mm	0.157 in	Push-Pull	Square	Through Hole	0.3 µm	12 µin	1	Header	Phosphor Bronze	6
