3181 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K
CONN RING CIRC 4AWG #1/4 CRIMP
| Part | Features | Stud/Tab Size | Wire Gauge | Length - Overall [x] | Length - Overall [x] | Contact Finish | Width - Outer Edges [y] | Width - Outer Edges [y] | Thickness | Thickness | Contact Material | Mounting Type | Insulation | Termination | Terminal Type | Number of Wire Entries | Wire Gauge [Max] | Wire Gauge [Min] | Diameter - Ring ID [diameter] | Diameter - Ring ID [diameter] | Width - Outer Edges [x] | Width - Outer Edges [x] | Diameter - Barrel ID [diameter] | Diameter - Barrel ID [diameter] | Terminal Style | Length - Overall | Tab Thickness | Tab Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

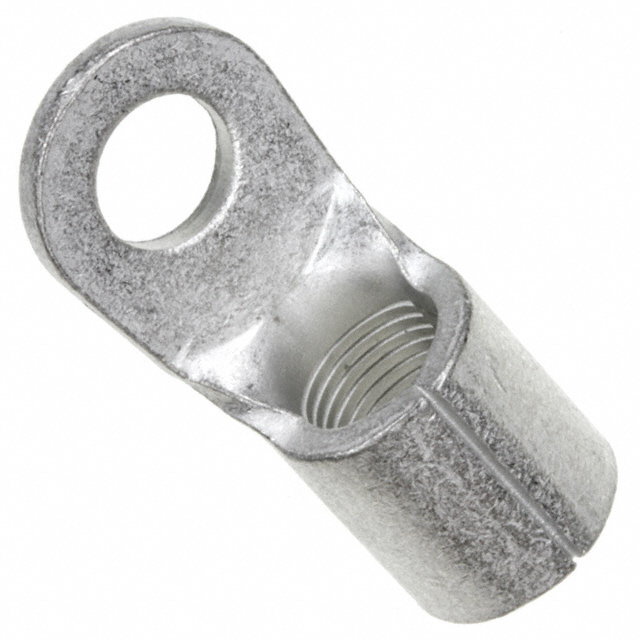

 TE Connectivity Raychem Cable Protection | Brazed Seam Serrated Termination | 0.25 Stud | 4 AWG | 1.199 in | 30.45 mm | Tin | 12.7 mm | 0.5 in | 1.78 mm | 0.07 in | Copper | Free Hanging (In-Line) | Non-Insulated | Crimp | Circular | |||||||||||||

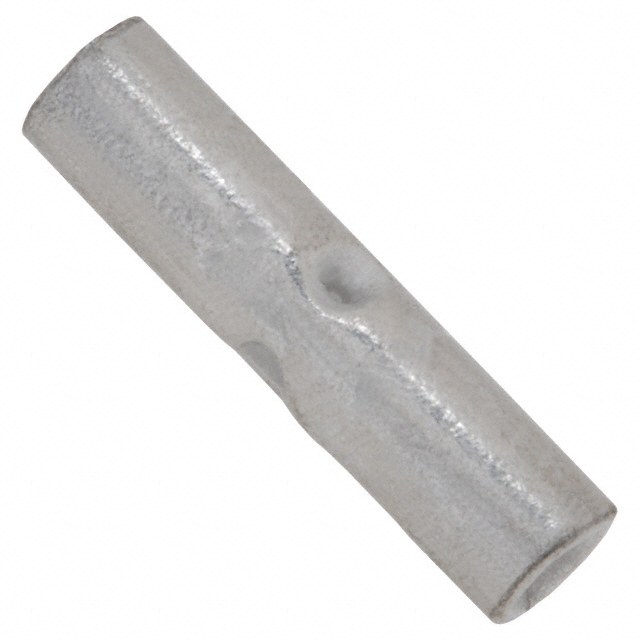

 TE Connectivity Raychem Cable Protection | Brazed Seam Serrated Mating Area | Non-Insulated | Crimp | Butt Splice Individual Openings Inline | 2 | 22 AWG | 16 AWG | |||||||||||||||||||||
TE Connectivity Raychem Cable Protection | Serrated Termination | 6 Stud | 0.529 in | Tin | Copper | Free Hanging (In-Line) | Non-Insulated | Crimp | Ring | 0.145 in | 3.68 mm | 0.296 in | 7.52 mm | 2.26 mm | 0.089 in | Single Stud Hole | 13.44 mm | 0.031 " | 0.79 mm |
