AST025 Series
Manufacturer: METZ CONNECT USA Inc.
Beta
⌘K
TERM BLK 4POS SIDE ENTRY 5MM PCB
| Part | Housing Material | Clamp Material - Plating | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material - Plating | Wire Gauge [Max] | Wire Gauge [Min] | Number of Levels | Current | Positions Per Level | Mating Orientation | Pitch | Pitch | Voltage | Wire Termination | Features | Mounting Type | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

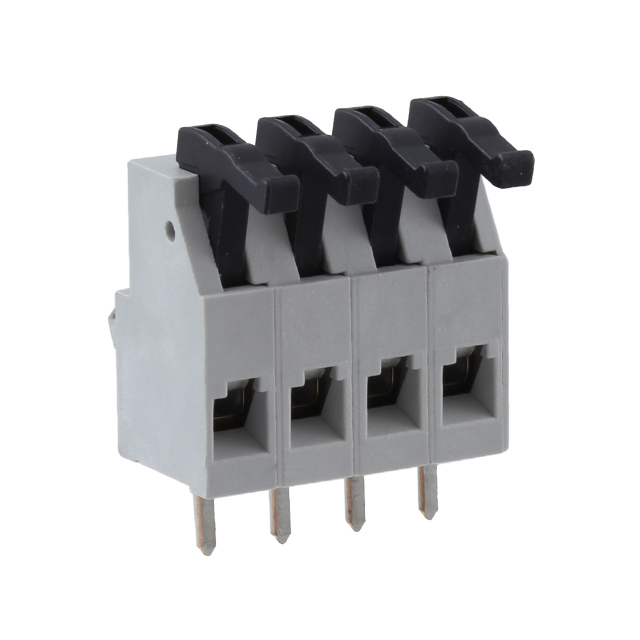

 METZ CONNECT USA Inc. | Polyamide (PA46) Nylon 4/6 | Steel | -40 C | 105 ░C | Copper Alloy - Tin Plated | 28 AWG | 14 AWG | 1 | 13 A | 4 | Horizontal with Board | 0.197 in | 5 mm | 300 VDC | Screwless - Spring Cage Tension Clamp | Lever Actuated | Through Hole | Gray |

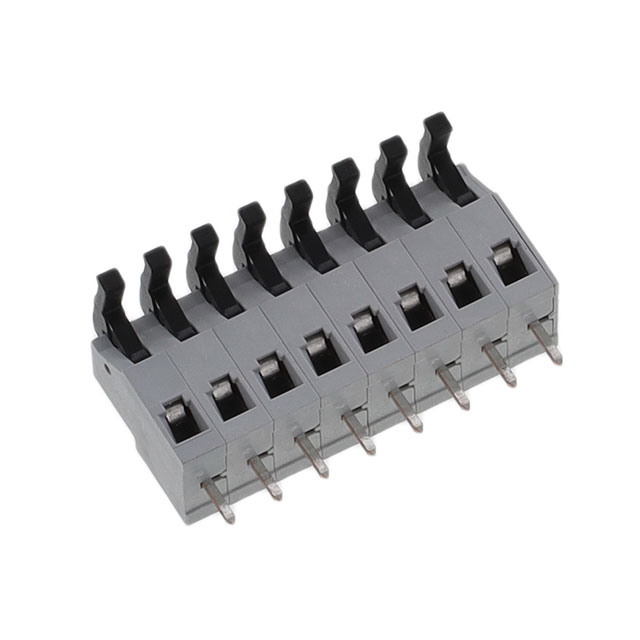

 METZ CONNECT USA Inc. | Polyamide (PA46) Nylon 4/6 | Steel | -40 C | 105 ░C | Copper Alloy - Tin Plated | 28 AWG | 14 AWG | 1 | 13 A | 8 | Horizontal with Board | 0.197 in | 5 mm | 300 VDC | Screwless - Spring Cage Tension Clamp | Lever Actuated | Through Hole | Gray |
 METZ CONNECT USA Inc. | Polyamide (PA46) Nylon 4/6 | Steel | -40 C | 105 ░C | Copper Alloy - Tin Plated | 28 AWG | 14 AWG | 1 | 13 A | 5 | Horizontal with Board | 0.197 in | 5 mm | 300 VDC | Screwless - Spring Cage Tension Clamp | Lever Actuated | Through Hole | Gray |
METZ CONNECT USA Inc. | Polyamide (PA46) Nylon 4/6 | Steel | -40 C | 105 ░C | Copper Alloy - Tin Plated | 28 AWG | 14 AWG | 1 | 13 A | 16 | Horizontal with Board | 0.197 in | 5 mm | 300 VDC | Screwless - Spring Cage Tension Clamp | Lever Actuated | Through Hole | Gray |
METZ CONNECT USA Inc. | Polyamide (PA46) Nylon 4/6 | Steel | -40 C | 105 ░C | Copper Alloy - Tin Plated | 28 AWG | 14 AWG | 1 | 13 A | 18 | Horizontal with Board | 0.197 in | 5 mm | 300 VDC | Screwless - Spring Cage Tension Clamp | Lever Actuated | Through Hole | Gray |

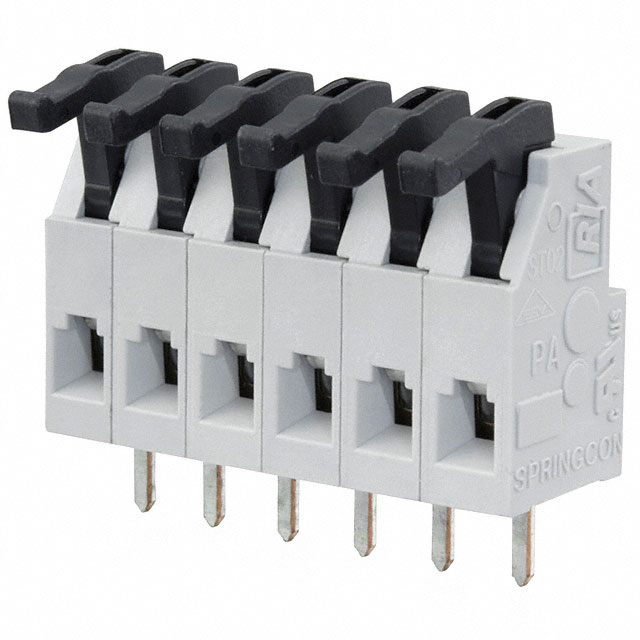

 METZ CONNECT USA Inc. | Polyamide (PA46) Nylon 4/6 | Steel | -40 C | 105 ░C | Copper Alloy - Tin Plated | 28 AWG | 14 AWG | 1 | 13 A | 6 | Horizontal with Board | 0.197 in | 5 mm | 300 VDC | Screwless - Spring Cage Tension Clamp | Lever Actuated | Through Hole | Gray |

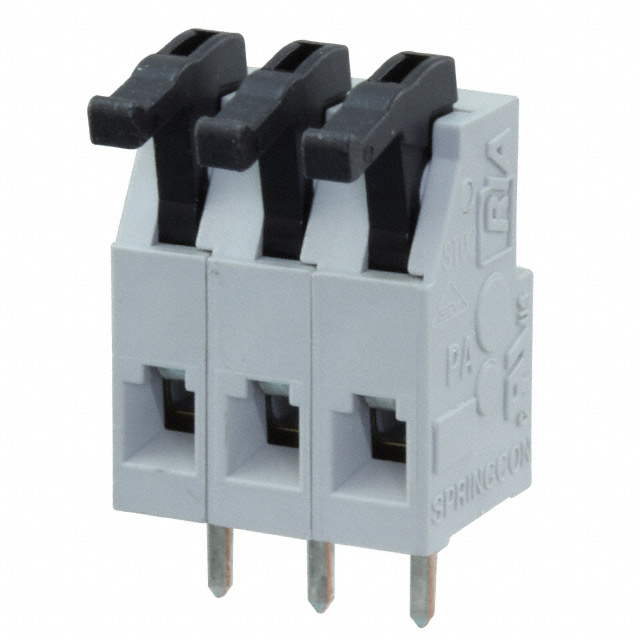

 METZ CONNECT USA Inc. | Polyamide (PA46) Nylon 4/6 | Steel | -40 C | 105 ░C | Copper Alloy - Tin Plated | 28 AWG | 14 AWG | 1 | 13 A | 3 | Horizontal with Board | 0.197 in | 5 mm | 300 VDC | Screwless - Spring Cage Tension Clamp | Lever Actuated | Through Hole | Gray |

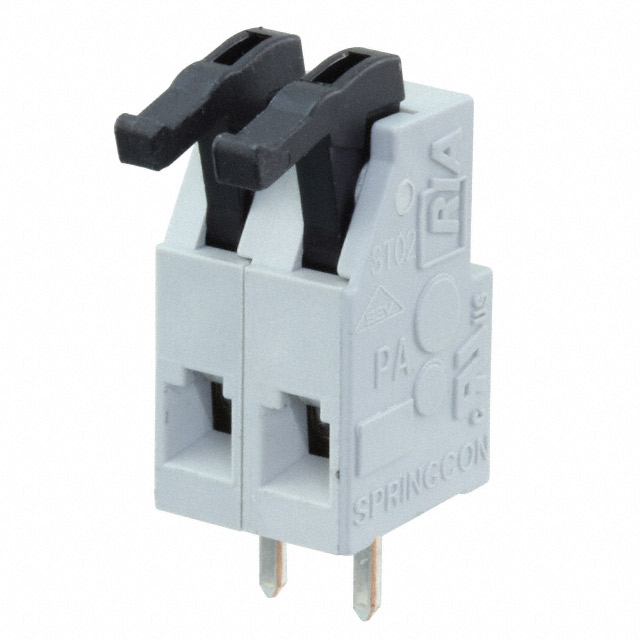

 METZ CONNECT USA Inc. | Polyamide (PA46) Nylon 4/6 | Steel | -40 C | 105 ░C | Copper Alloy - Tin Plated | 28 AWG | 14 AWG | 1 | 13 A | 2 | Horizontal with Board | 0.197 in | 5 mm | 300 VDC | Screwless - Spring Cage Tension Clamp | Lever Actuated | Through Hole | Gray |
METZ CONNECT USA Inc. | Polyamide (PA46) Nylon 4/6 | Steel | -40 C | 105 ░C | Copper Alloy - Tin Plated | 28 AWG | 14 AWG | 1 | 13 A | 9 | Horizontal with Board | 0.197 in | 5 mm | 300 VDC | Screwless - Spring Cage Tension Clamp | Lever Actuated | Through Hole | Gray |
METZ CONNECT USA Inc. | Polyamide (PA46) Nylon 4/6 | Steel | -40 C | 105 ░C | Copper Alloy - Tin Plated | 28 AWG | 14 AWG | 1 | 13 A | 11 | Horizontal with Board | 0.197 in | 5 mm | 300 VDC | Screwless - Spring Cage Tension Clamp | Lever Actuated | Through Hole | Gray |
