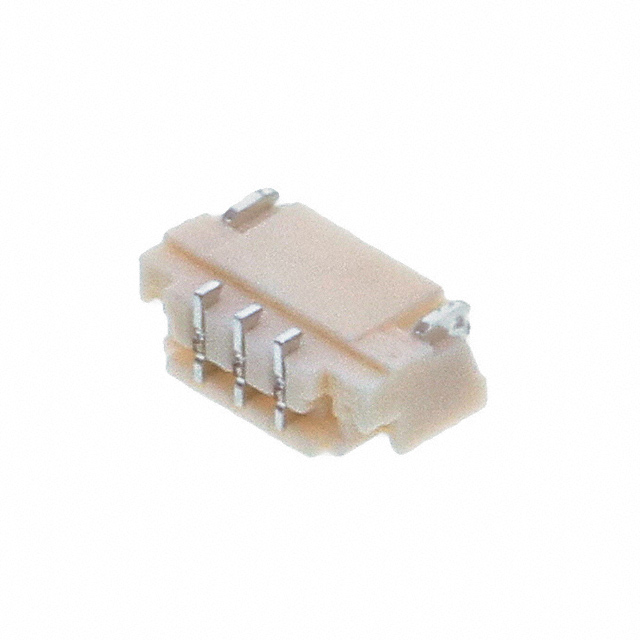

SM03B-SU Series
Manufacturer: JST Sales America Inc.
Beta
⌘K
CONN HEADER SMD R/A 3POS 0.8MM
| Part | Connector Type | Style | Insulation Material | Pitch - Mating | Pitch - Mating | Current Rating (Amps) | Contact Type | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Termination | Number of Positions Loaded | Material Flammability Rating | Voltage Rating | Contact Finish - Post | Features | Mounting Type | Fastening Type | Number of Rows | Insulation Color | Shrouding | Contact Shape | Insulation Height [z] | Insulation Height [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Header | Board to Cable/Wire | Nylon Polyamide (PA) | 0.8 mm | 0.031 in | 0.2 A 0.5 A | Outer Shroud Contact | Copper Alloy | 85 °C | -25 °C | Solder | All | UL94 V-0 | 30 VDC | Tin | Solder Retention | Right Angle Surface Mount | Push-Pull | 1 | Natural | Shrouded - 4 Wall | Rectangular | 0.069 in | 1.75 mm |
