1982101 Series

Catalog

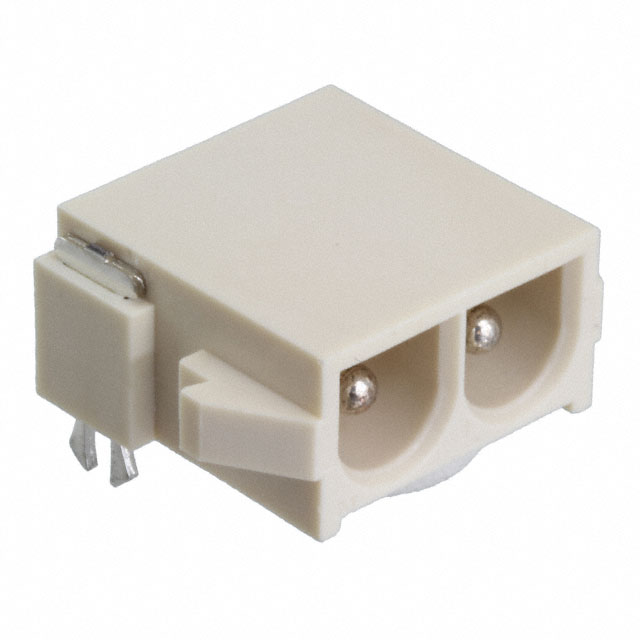

CONN HEADER R/A 2POS 6.35MM

Part	Style	Applications	Termination	Contact Shape	Number of Positions Loaded	Fastening Type	Insulation Height	Insulation Height	Contact Finish - Mating	Connector Type	Contact Length - Mating [x]	Contact Length - Mating [x]	Contact Material	Mounting Type	Contact Type	Number of Positions	Contact Length - Post	Contact Length - Post	Pitch - Mating	Pitch - Mating	Insulation Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Rows	Shrouding	Insulation Material
TE Connectivity Raychem Cable Protection 1982101-1	Board to Board Cable	General Purpose	Solder	Circular	All	Locking Ramp	0.311 in	7.9 mm	Silver	Header	8.7 mm	0.343 in	Copper	Through Hole Right Angle	Male Pin	2	0.157 in	4 mm	6.35 mm	0.25 in	Natural	196.9 µin	5 µm	1	Shrouded - 4 Wall	Glass Filled Nylon 4/6 Polyamide (PA46)
