25TQC Series

Manufacturer: Panasonic Electronic Components

Catalog

TANTALUM POLYMER CAPACITOR, 22 ΜF, ± 20%, 25 V, D, 0.07 OHM, 2917 [7343 METRIC]

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Capacitance	Mounting Type	Manufacturer Size Code	Height - Seated (Max) [Max]	Height - Seated (Max)	Voltage - Rated	Type	Operating Temperature [Min]	Operating Temperature [Max]	ESR (Equivalent Series Resistance)	Package / Case	Lifetime @ Temp.	Tolerance	Features	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]

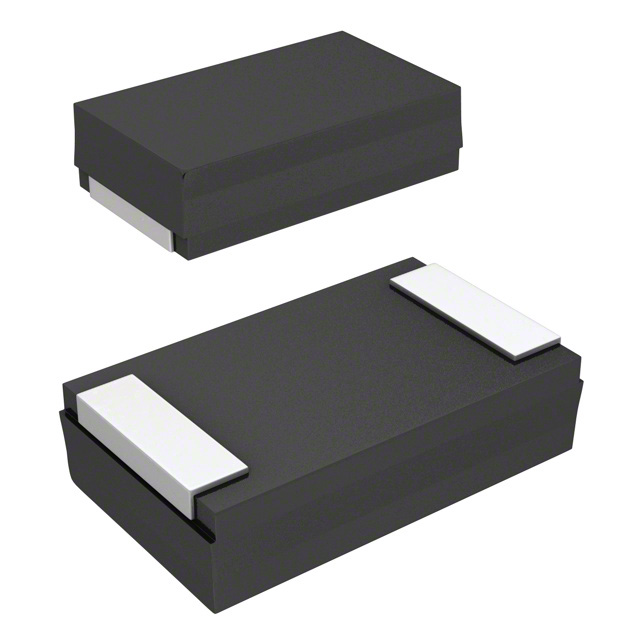

Panasonic Electronic Components 25TQC22MYFT	0.169 "	7.3 mm	0.287 "	4.3 mm	22 µF	Surface Mount	D15	0.059 "	1.5 mm	25 VDC	Molded	-55 C	105 ░C	70 mOhm	2917 (7343 Metric)	2000 Hrs	20 %	General Purpose

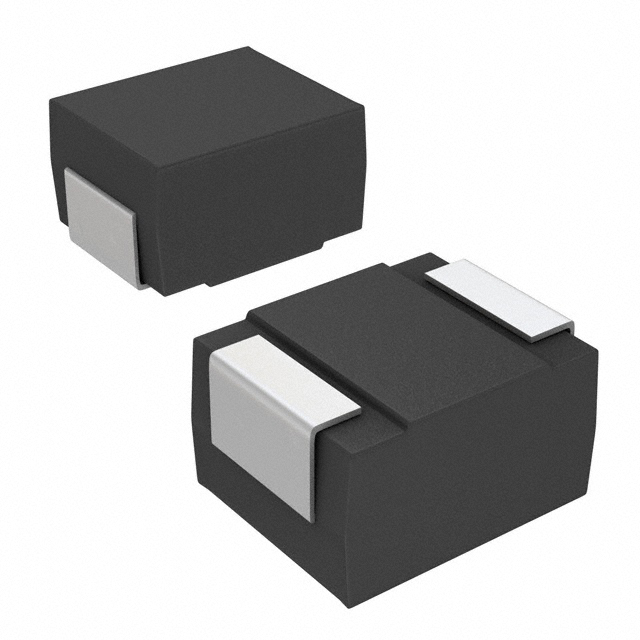

Panasonic Electronic Components 25TQC15MYFB	0.11 "	3.5 mm	0.138 in	2.8 mm	15 µF	Surface Mount	B2			25 VDC	Molded	-55 C	105 ░C	100 mOhm	1411	2000 Hrs	20 %	General Purpose	3528 Metric	0.079 in	2 mm
Panasonic Electronic Components 25TQC100MD3	0.169 "	7.3 mm	0.287 "	4.3 mm	100 µF	Surface Mount	D3L			25 VDC	Molded	-55 C	105 ░C	60 mOhm	2917 (7343 Metric)	2000 Hrs	20 %	General Purpose				0.118 "	3 mm
Panasonic Electronic Components 25TQC15MYFD	0.169 "	7.3 mm	0.287 "	4.3 mm	15 µF	Surface Mount	D2			25 VDC	Molded	-55 C	105 ░C	90 mOhm	2917 (7343 Metric)	2000 Hrs	20 %	General Purpose		0.079 in	2 mm
Panasonic Electronic Components 25TQC22MYFB	0.11 "	3.5 mm	0.138 in	2.8 mm	22 µF	Surface Mount	B2			25 VDC	Molded	-55 C	105 ░C	100 mOhm	1210 1411 (3528 Metric)	2000 Hrs	20 %	General Purpose		0.079 in	2 mm
Panasonic Electronic Components 25TQC68MYF	0.169 "	7.3 mm	0.287 "	4.3 mm	68 µF	Surface Mount	D3L			25 VDC	Molded	-55 C	105 ░C	70 mOhm	2917 (7343 Metric)	2000 Hrs	20 %	General Purpose				0.118 "	3 mm
