ERJ-3RE Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

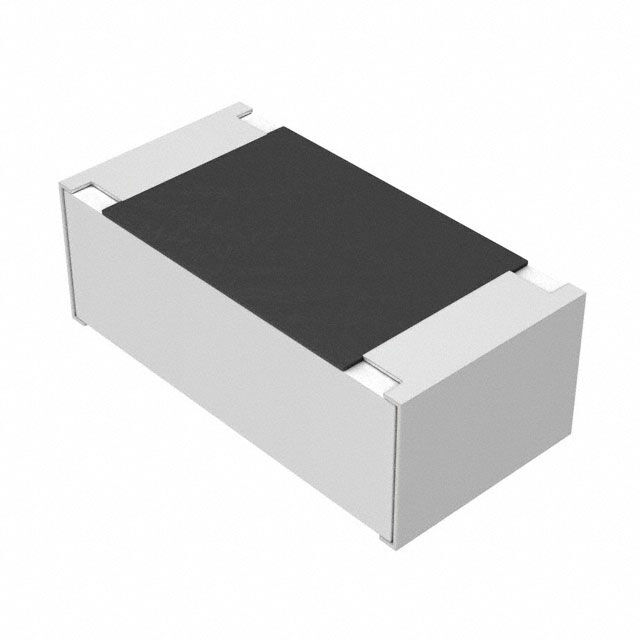

RES 86.6 OHM 0.5% 1/10W 0603

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Package / Case	Composition	Features	Power (Watts)	Power (Watts)	Temperature Coefficient	Number of Terminations	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Operating Temperature [Max]	Operating Temperature [Min]	Ratings	Resistance
Panasonic Industrial Automation Sales ERJ-3RED86R6V	0.8 mm	0.063 in	1.6 mm	0.031 in	0603 (1608 Metric)	Thick Film	Automotive AEC-Q200	0.1 W	0.1 W	100 ppm/°C	2	0.022 in	0.55 mm	155 °C	-55 °C	AEC-Q200	86.6 Ohms
Panasonic Industrial Automation Sales ERJ-3RED3163V	0.8 mm	0.063 in	1.6 mm	0.031 in	0603 (1608 Metric)	Thick Film	Automotive AEC-Q200	0.1 W	0.1 W	100 ppm/°C	2	0.022 in	0.55 mm	155 °C	-55 °C	AEC-Q200	316 kOhms
Panasonic Industrial Automation Sales ERJ-3RED84R5V	0.8 mm	0.063 in	1.6 mm	0.031 in	0603 (1608 Metric)	Thick Film	Automotive AEC-Q200	0.1 W	0.1 W	100 ppm/°C	2	0.022 in	0.55 mm	155 °C	-55 °C	AEC-Q200	84.5 Ohms
Panasonic Industrial Automation Sales ERJ-3RED6813V	0.8 mm	0.063 in	1.6 mm	0.031 in	0603 (1608 Metric)	Thick Film	Automotive AEC-Q200	0.1 W	0.1 W	100 ppm/°C	2	0.022 in	0.55 mm	155 °C	-55 °C	AEC-Q200	681 kOhms
Panasonic Industrial Automation Sales ERJ-3RED24R9V	0.8 mm	0.063 in	1.6 mm	0.031 in	0603 (1608 Metric)	Thick Film	Automotive AEC-Q200	0.1 W	0.1 W	50 ppm/°C	2	0.022 in	0.55 mm	155 °C	-55 °C	AEC-Q200	24.9 Ohms
Panasonic Industrial Automation Sales ERJ-3RED16R2V	0.8 mm	0.063 in	1.6 mm	0.031 in	0603 (1608 Metric)	Thick Film	Automotive AEC-Q200	0.1 W	0.1 W	50 ppm/°C	2	0.022 in	0.55 mm	155 °C	-55 °C	AEC-Q200	16.2 Ohms
Panasonic Industrial Automation Sales ERJ-3RED51R0V	0.8 mm	0.063 in	1.6 mm	0.031 in	0603 (1608 Metric)	Thick Film	Automotive AEC-Q200	0.1 W	0.1 W	100 ppm/°C	2	0.022 in	0.55 mm	155 °C	-55 °C	AEC-Q200	51 Ohms
Panasonic Industrial Automation Sales ERJ-3RED18R2V	0.8 mm	0.063 in	1.6 mm	0.031 in	0603 (1608 Metric)	Thick Film	Automotive AEC-Q200	0.1 W	0.1 W	100 ppm/°C	2	0.022 in	0.55 mm	155 °C	-55 °C	AEC-Q200	18.2 Ohms
Panasonic Industrial Automation Sales ERJ-3RED59R0V	0.8 mm	0.063 in	1.6 mm	0.031 in	0603 (1608 Metric)	Thick Film	Automotive AEC-Q200	0.1 W	0.1 W	50 ppm/°C	2	0.022 in	0.55 mm	155 °C	-55 °C	AEC-Q200	59 Ohms
Panasonic Industrial Automation Sales ERJ-3RED11R0V	0.8 mm	0.063 in	1.6 mm	0.031 in	0603 (1608 Metric)	Thick Film	Automotive AEC-Q200	0.1 W	0.1 W	100 ppm/°C	2	0.022 in	0.55 mm	155 °C	-55 °C	AEC-Q200	11 Ohms
