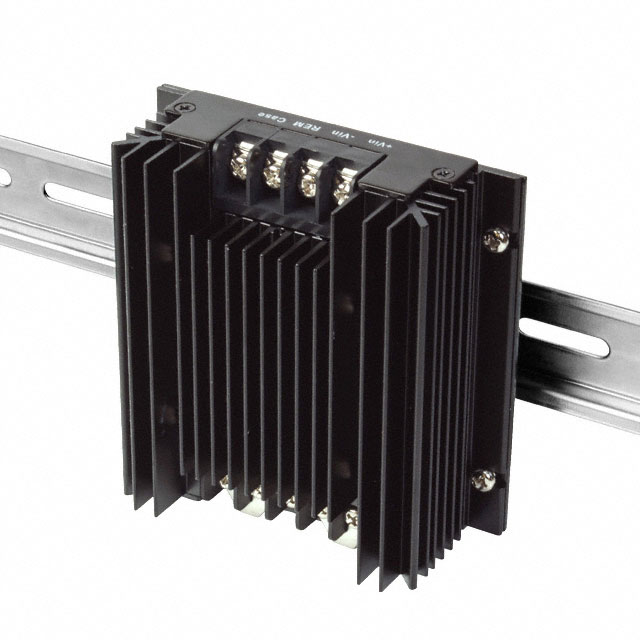

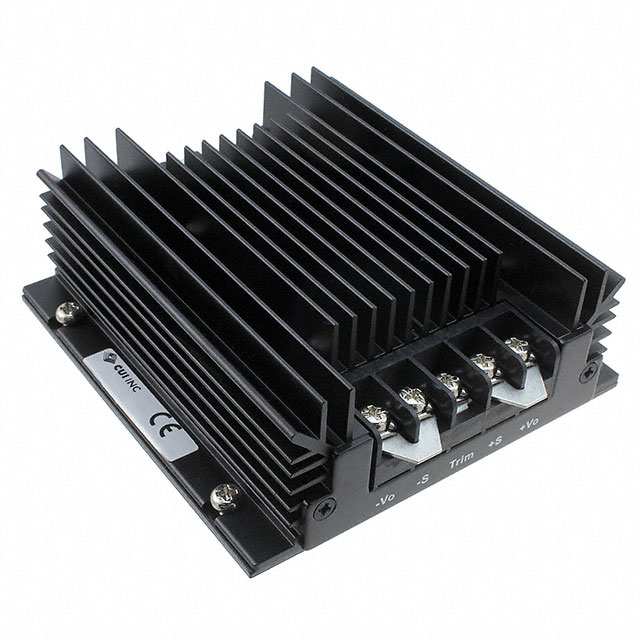

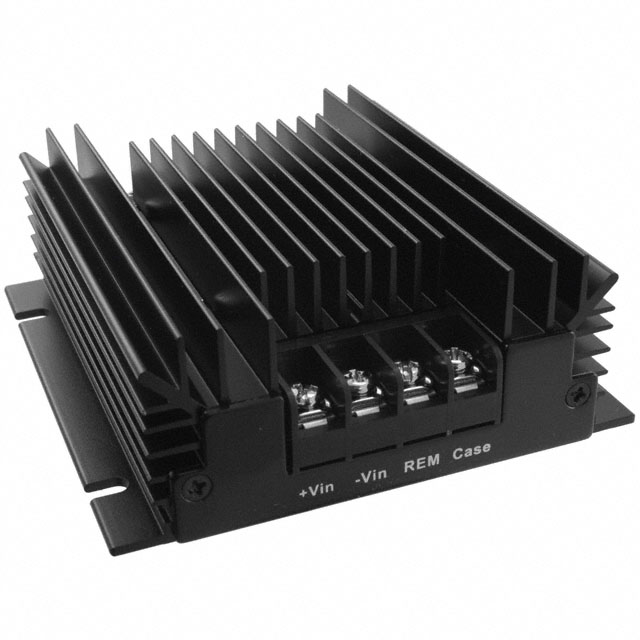

VHK75W Series

Manufacturer: CUI Inc.

Catalog

ISOLATED DC/DC CONVERTERS - DIN RAIL MOUNT DC-DC ISOLATED, 75 W, 9-36 VDC INPUT, 24 VDC, 3.1 A, SINGLE REGULATED OUTPUT, DIN-RAIL

Part	Approval Agency	Efficiency	DC Voltage - Input (Max) [Max]	Power (Watts)	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Input Type	Voltage - Output 1	Operating Temperature [Max]	Operating Temperature [Min]	DC Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Number of Outputs	Type	Current - Output (Max)	Voltage - Input (Min) [Min]	Mounting Type	Voltage - Input (Max) [Max]
CUI Inc. VHK75W-Q24-S24-DIN	CE	83 %	36 V	75 W	2.07 "	52.6 mm	107.4 mm	4.23 "	101.9 mm	4.01 in	DC	24 V	85 °C	-40 C	9 V	3.12 A	1
CUI Inc. VHK75W-Q48-S15		83.5 %		75 W	1.5 in	38.1 mm	108 mm	4.25 in	101.6 mm	4 "		15 V	85 °C	-40 C			1	Enclosed	5 A	18 V	Chassis Mount	75 V
CUI Inc. VHK75W-Q24-S24		83 %		75 W	1.5 in	38.1 mm	108 mm	4.25 in	101.6 mm	4 "		24 V	85 °C	-40 C		3.12 A	1	Enclosed		9 V	Chassis Mount	36 V
CUI Inc. VHK75W-Q24-S5		80 %		75 W	1.5 in	38.1 mm	108 mm	4.25 in	101.6 mm	4 "		5 V	85 °C	-40 C		15 A	1	Enclosed		9 V	Chassis Mount	36 V
CUI Inc. VHK75W-Q24-S48				75 W	1.5 in	38.1 mm	108 mm	4.25 in	101.6 mm	4 "		48 V	85 °C	-40 C		1.56 A	1	Enclosed		9 V	Chassis Mount	36 V
CUI Inc. VHK75W-Q24-S12-DIN	CE	81.5 %	36 V	75 W	2.07 "	52.6 mm	107.4 mm	4.23 "	101.9 mm	4.01 in	DC	12 V	85 °C	-40 C	9 V	6.25 A	1
CUI Inc. VHK75W-Q48-S15-DIN	CE	83.5 %	75 V	75 W	2.07 "	52.6 mm	107.4 mm	4.23 "	101.9 mm	4.01 in	DC	15 V	85 °C	-40 C	18 V		1		5 A
CUI Inc. VHK75W-Q48-S12		82.5 %		75 W	1.5 in	38.1 mm	108 mm	4.25 in	101.6 mm	4 "		12 V	85 °C	-40 C		6.25 A	1	Enclosed		18 V	Chassis Mount	75 V
CUI Inc. VHK75W-Q48-S48		84 %		75 W	1.5 in	38.1 mm	108 mm	4.25 in	101.6 mm	4 "		48 V	85 °C	-40 C		1.56 A	1	Enclosed		18 V	Chassis Mount	75 V
CUI Inc. VHK75W-Q48-S3R3	CE	78 %		75 W	1.5 in	38.1 mm	108 mm	4.25 in	101.6 mm	4 "		3.3 V	85 °C	-40 C		15 A	1	Enclosed		18 V	Chassis Mount	75 V
