5275-1 Series

Catalog

CONN PC PIN SQUARE 0.025 TINLEAD

Part	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Length - Overall	Length - Overall	Contact Material	Mounting Type	Insulation	Contact Finish Thickness	Contact Finish Thickness	Pin Size - Above Flange	Pin Size - Above Flange	Flange Diameter [diameter]	Flange Diameter [diameter]	Terminal Style	Contact Finish	Terminal Type	Length - Above Flange [x]	Length - Above Flange [x]	Termination
Mill-Max Manufacturing Corp. 5275-1-05-01-00-00-01-0	0.89 mm	0.035 in	11.18 mm	0.44 in	Brass Alloy	Through Hole	Non-Insulated	200 Áin	5.08 Ám	0.025 in	0.64 mm	0.06 in	1.52 mm	Single End	Tin-Lead	PC Pin	10.67 mm	0.42 in	Press-Fit Square Wire Wrap

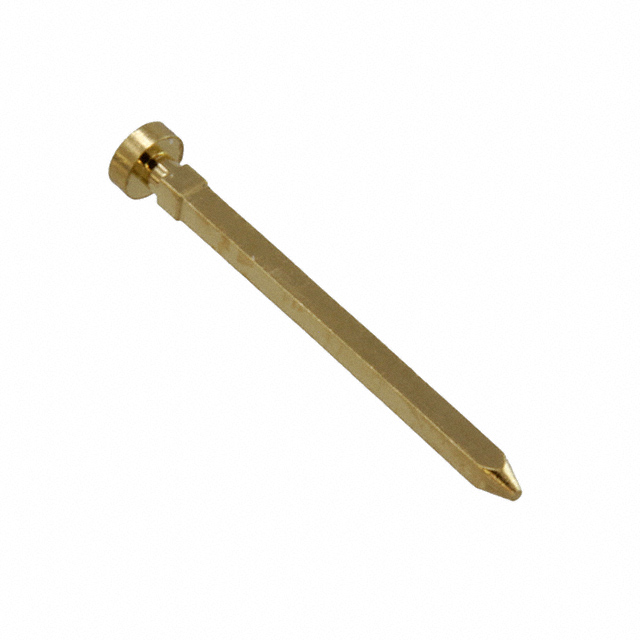

Mill-Max Manufacturing Corp. 5275-1-05-15-00-00-01-0	0.89 mm	0.035 in	11.18 mm	0.44 in	Brass Alloy	Through Hole	Non-Insulated	10 Áin	0.25 Ám	0.025 in	0.64 mm	0.06 in	1.52 mm	Single End	Gold	PC Pin	10.67 mm	0.42 in	Press-Fit Square Wire Wrap
Mill-Max Manufacturing Corp. 5275-1-05-80-00-00-01-0	0.89 mm	0.035 in	11.18 mm	0.44 in	Brass Alloy	Through Hole	Non-Insulated	200 Áin	5.08 Ám	0.025 in	0.64 mm	0.06 in	1.52 mm	Single End	Tin	PC Pin	10.67 mm	0.42 in	Press-Fit Square Wire Wrap
