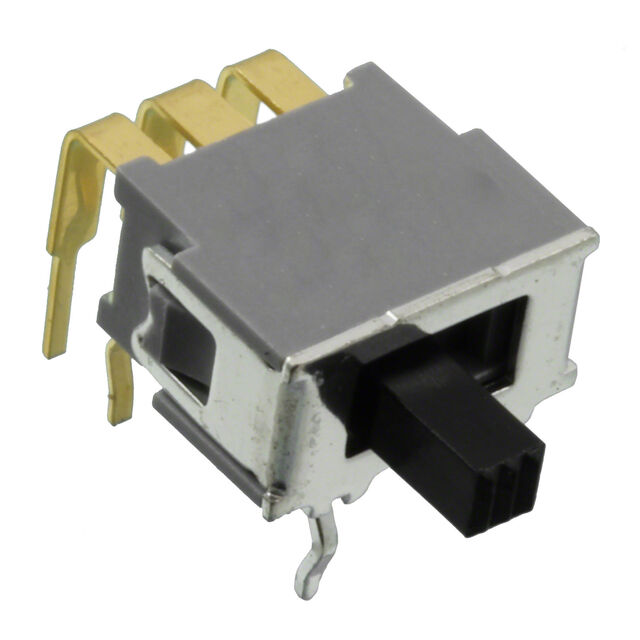

AS2D-6M Series
Manufacturer: Nidec Components Corporation
Beta
⌘K
SWITCH SLIDE DPDT 50MA 48V
| Part | Actuator Length [x] | Current Rating (Amps) | Contact Finish | Actuator Type | Contact Timing | Mounting Type | Voltage Rating - DC | Voltage Rating - AC | Switch Function | Termination Style | Operating Force [Max] | Operating Force [Min] | Electrical Life | Operating Temperature [Max] | Operating Temperature [Min] | Switch Travel [custom] | Circuit |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Nidec Components Corporation | 4.3 mm | 50 mA | Gold | Standard | Non-Shorting | Through Hole Right Angle | 48 V | 48 V | On-On | PC Pin | 500 gf | 70 gf | 10000 Cycles | 85 °C | -20 C | 2.2 mm | DPDT |
