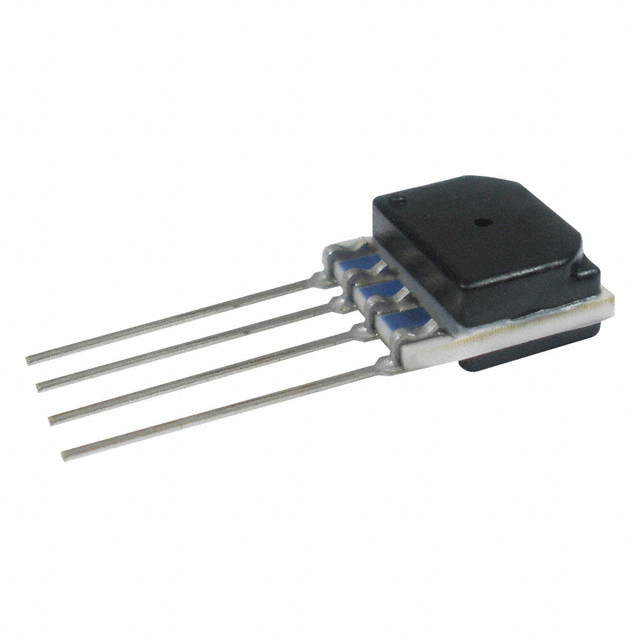

SSCSNNN Series

Catalog

TRUSTABILITY PRESSURE SENSOR

Part	Output Type	Maximum Pressure	Maximum Pressure	Output	Applications	Mounting Type	Features	Accuracy	Port Style	Package / Case	Voltage - Supply [Max]	Voltage - Supply [Min]	Supplier Device Package	Termination Style	Operating Pressure	Operating Pressure	Operating Temperature [Max]	Operating Temperature [Min]	Output [Max]	Output [Min]
Honeywell Sensing and Productivity Solutions SSCSNNN060PA2A3	I2C	120 PSI	827.37 kPa	12 b	Board Mount	Through Hole	Amplified Output Temperature Compensated	0.25 %	No Port	4-SIP Module	3.6 V	3 V	4-SIP	PC Pin	413.69 kPa	60 PSI	85 °C	-40 C
Honeywell Sensing and Productivity Solutions SSCSNNN600MAAA3	Analog Voltage	29.01 PSI	200 kPa		Board Mount	Through Hole	Amplified Output Temperature Compensated	0.25 %	No Port	4-SIP Module	3.6 V	3 V	4-SIP	PC Pin	60 kPa	8.7 PSI	85 °C	-40 C	2.97 V	0.33 V
