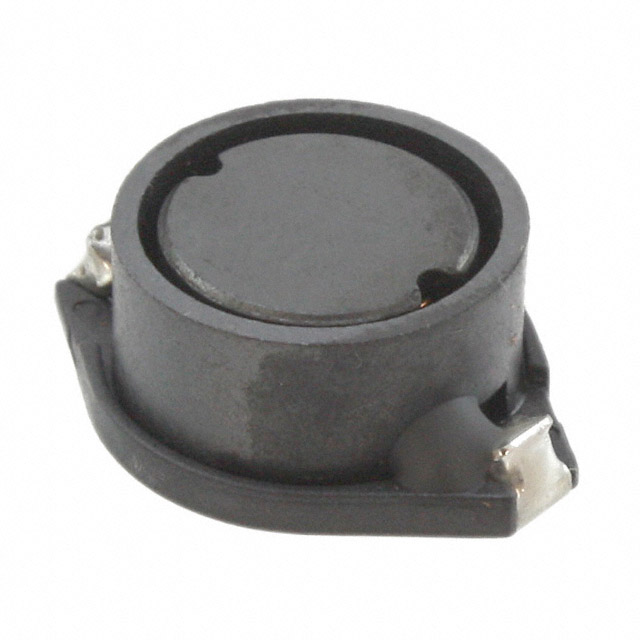

SRR1806 Series
Manufacturer: Bourns Inc.
Beta
⌘K
POWER INDUCTOR (SMD), 220 ΜH, 1 A, SHIELDED, 1.9 A, SRR1806 SERIES
| Part | Package / Case | Mounting Type | Type | Tolerance | Inductance Frequency - Test | Q @ Freq | Inductance | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | DC Resistance (DCR) | Shielding | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Frequency - Self Resonant | Material - Core | Current - Saturation (Isat) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | Nonstandard | Surface Mount | Drum Core Wirewound | 20 % | 100 kHz | 29 796 kHz | 220 µH | 125 °C | -40 C | 1 A | 510 mOhm | Shielded | 7.1 mm | 0.28 in | 3.5 MHz | Ferrite | 1.9 A |
Bourns Inc. | Nonstandard | Surface Mount | Drum Core Wirewound | 20 % | 100 kHz | 2.52 MHz 56 | 10 µH | 125 °C | -40 C | 4 A | 33 mOhm | Shielded | 7.1 mm | 0.28 in | 19 MHz | Ferrite | 8.2 A |
Bourns Inc. | Nonstandard | Surface Mount | Drum Core Wirewound | 20 % | 100 kHz | 27 796 kHz | 470 µH | 125 °C | -40 C | 0.64 A | 1 Ohm | Shielded | 7.1 mm | 0.28 in | 2.4 MHz | Ferrite | 1.3 A |
