EZG.1B Series

Manufacturer: LEMO

Catalog

CONN RCPT FMALE 14POS GOLD SLDR

Part	Current Rating (Amps)	Termination	Fastening Type	Mounting Type	Shell Size - Insert	Material Flammability Rating	Contact Finish - Mating	Features	Shell Material	Shielding	Ingress Protection	Shell Finish	Insert Material	Orientation [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Primary Material	Contact Material	Color	Shell Size - Insert [custom]	Shell Size - Insert [custom]
LEMO EZG.1B.314.CLN	2 A	Solder	Push-Pull	Through Hole	314	UL94 V-0	Gold	Board Lock	Brass	Shielded	IP50 - Dust Protected	Chrome	Polyetheretherketone (PEEK)	G	-55 C	250 °C	Receptacle Female Sockets	1.5 Ám	59 Áin	14	Metal	Bronze	Silver
LEMO EZG.1B.316.CLN	1.5 A	Solder	Push-Pull	Through Hole		UL94 V-0	Gold	Board Lock	Brass	Shielded	IP50 - Dust Protected	Chrome	Polyetheretherketone (PEEK)	G	-55 C	250 °C	Receptacle Female Sockets	1.5 Ám	59 Áin	16	Metal	Bronze	Silver	316
LEMO EZG.1B.310.CLN	2.5 A	Solder	Push-Pull	Through Hole	310	UL94 V-0	Gold	Board Lock	Brass	Shielded	IP50 - Dust Protected	Chrome	Polyetheretherketone (PEEK)	G	-55 C	250 °C	Receptacle Female Sockets	1.5 Ám	59 Áin	10	Metal	Bronze	Silver
LEMO EZG.1B.308.NLN	5 A	Solder	Push-Pull	Through Hole	308	UL94 V-0	Gold	Board Lock	Brass	Shielded	IP50 - Dust Protected	Nickel	Polyetheretherketone (PEEK)	G	-55 C	250 °C	Receptacle Female Sockets	1.5 Ám	59 Áin	8	Metal	Bronze	Silver
LEMO EZG.1B.307.NLN	7 A	Solder	Push-Pull	Through Hole		UL94 V-0	Gold	Board Lock	Brass	Shielded	IP50 - Dust Protected	Nickel	Polyetheretherketone (PEEK)	G	-55 C	250 °C	Receptacle Female Sockets	1.5 Ám	59 Áin	7	Metal	Bronze	Silver		307
LEMO EZG.1B.307.CLN	7 A	Solder	Push-Pull	Through Hole		UL94 V-0	Gold	Board Lock	Brass	Shielded	IP50 - Dust Protected	Chrome	Polyetheretherketone (PEEK)	G	-55 C	250 °C	Receptacle Female Sockets	1.5 Ám	59 Áin	7	Metal	Bronze	Silver		307

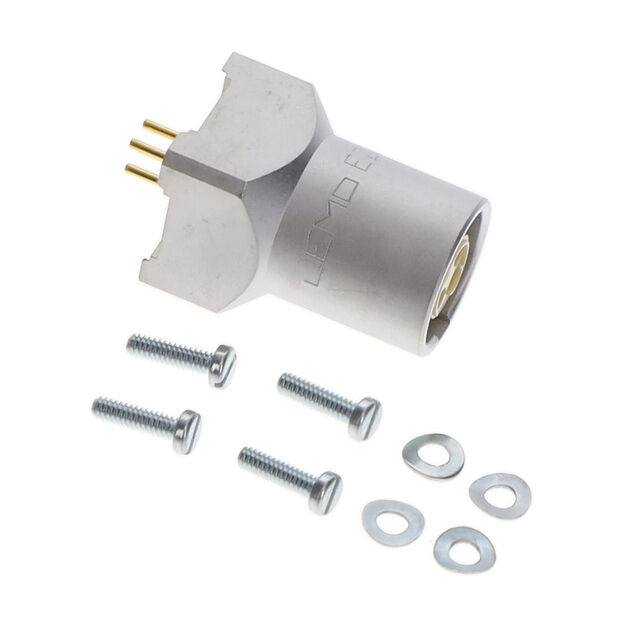

LEMO EZG.1B.304.CLN	10 A	Solder	Push-Pull	Through Hole	304	UL94 V-0	Gold	Board Lock	Brass	Shielded	IP50 - Dust Protected	Chrome	Polyetheretherketone (PEEK)	G	-55 C	250 °C	Receptacle Female Sockets	1.5 Ám	59 Áin	4	Metal	Bronze	Silver
LEMO EZG.1B.308.CLN	5 A	Solder	Push-Pull	Through Hole	308	UL94 V-0	Gold	Board Lock	Brass	Shielded	IP50 - Dust Protected	Chrome	Polyetheretherketone (PEEK)	G	-55 C	250 °C	Receptacle Female Sockets	1.5 Ám	59 Áin	8	Metal	Bronze	Silver

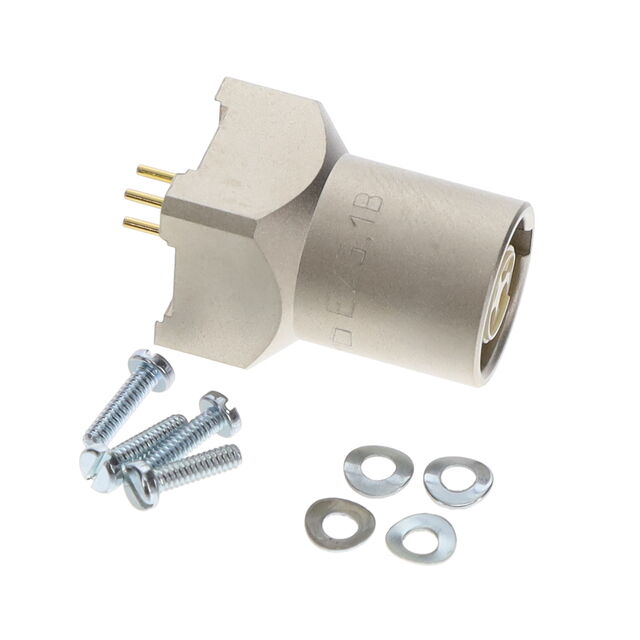

LEMO EZG.1B.304.NLN	10 A	Solder	Push-Pull	Through Hole	304	UL94 V-0	Gold	Board Lock	Brass	Shielded	IP50 - Dust Protected	Nickel	Polyetheretherketone (PEEK)	G	-55 C	250 °C	Receptacle Female Sockets	1.5 Ám	59 Áin	4	Metal	Bronze	Silver
