ODIN-W260 Series
Manufacturer: u-blox
Beta
⌘K
RF TXRX MOD BT WIFIU.FL SMD
| Part | Serial Interfaces | Data Rate | Operating Temperature (Min) | Operating Temperature (Max) | Antenna Type | Current - Receiving | Protocol | Sensitivity | Current - Transmitting | Modulation | Voltage - Supply (Maximum) | Voltage - Supply (Minimum) | Frequency Range 1 (Min) | Frequency Range 2 (Min) | Frequency Range 2 (Max) | Frequency Range 1 (Max) | Power - Output | RF Family/Standard | Mounting Type | Package / Case | Supplied Contents | For Use With/Related Products | Utilized IC / Part | Type | Contents | Frequency | Frequency | Memory Type | Memory Size (Flash) | Memory Size (SRAM) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

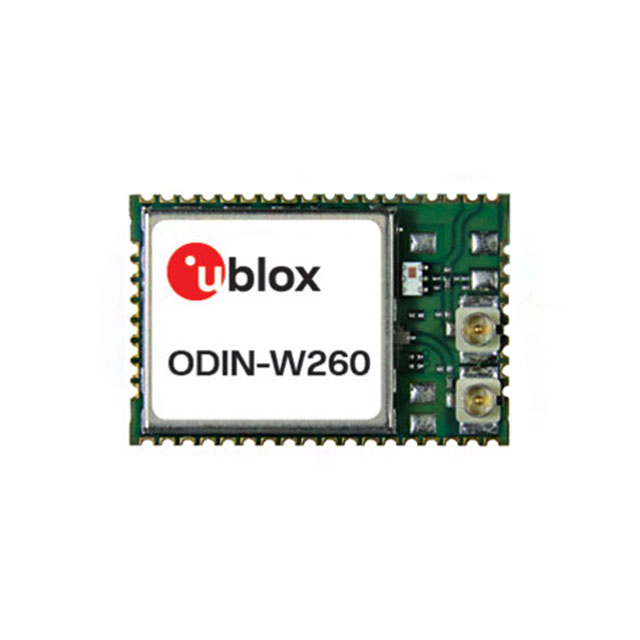

 u-blox | ADC GPIO I2C SPI UART | 130 Mbps | -40 °C | 85 °C | Antenna Not Included U.FL | 140 mA | 802.11a 802.11b 802.11g 802.11n Bluetooth v4.0 +EDR | -95 dBm | 250 mA | 4DQPSK 8DPSK CCK DSSS GFSK OFDM | 3.6 V | 3 V | 2.4 GHz | 5.18 GHz | 5.825 GHz | 2.5 GHz | 18 dBm | Bluetooth WiFi | Surface Mount | 52-SMD Module | ||||||||||

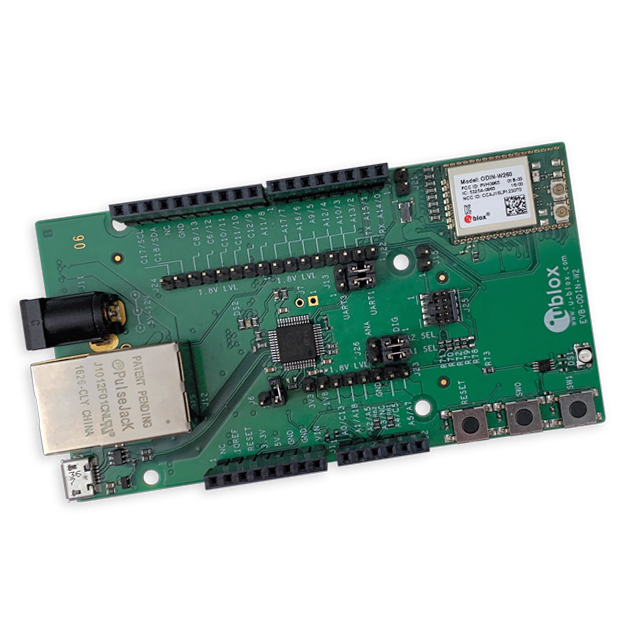

 u-blox | Board(s) Cable(s) | ODIN-W260 | ODIN-W260 | 802.11 a/b/g/n (Wi-Fi Bluetooth® Smart Ready 4.x Dual Mode (BLE) Transceiver WiFi WLAN) | Board Cable | 2.4 GHz 5 GHz | 2.4GHz 5GHz | |||||||||||||||||||||||
u-blox | ADC GPIO I2C SPI UART | 130 Mbps | -40 °C | 85 °C | Antenna Not Included U.FL | 140 mA | 802.11a 802.11b 802.11g 802.11n Bluetooth v4.0 +EDR | -95 dBm | 250 mA | 4DQPSK 8DPSK CCK DSSS GFSK OFDM | 3.6 V | 3 V | 2.4 GHz | 5.18 GHz | 5.825 GHz | 2.5 GHz | 18 dBm | Bluetooth WiFi | Surface Mount | 52-SMD Module | STM32 TI WL8 | Flash RAM | 2 MB | 256 kB |
