1408149 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

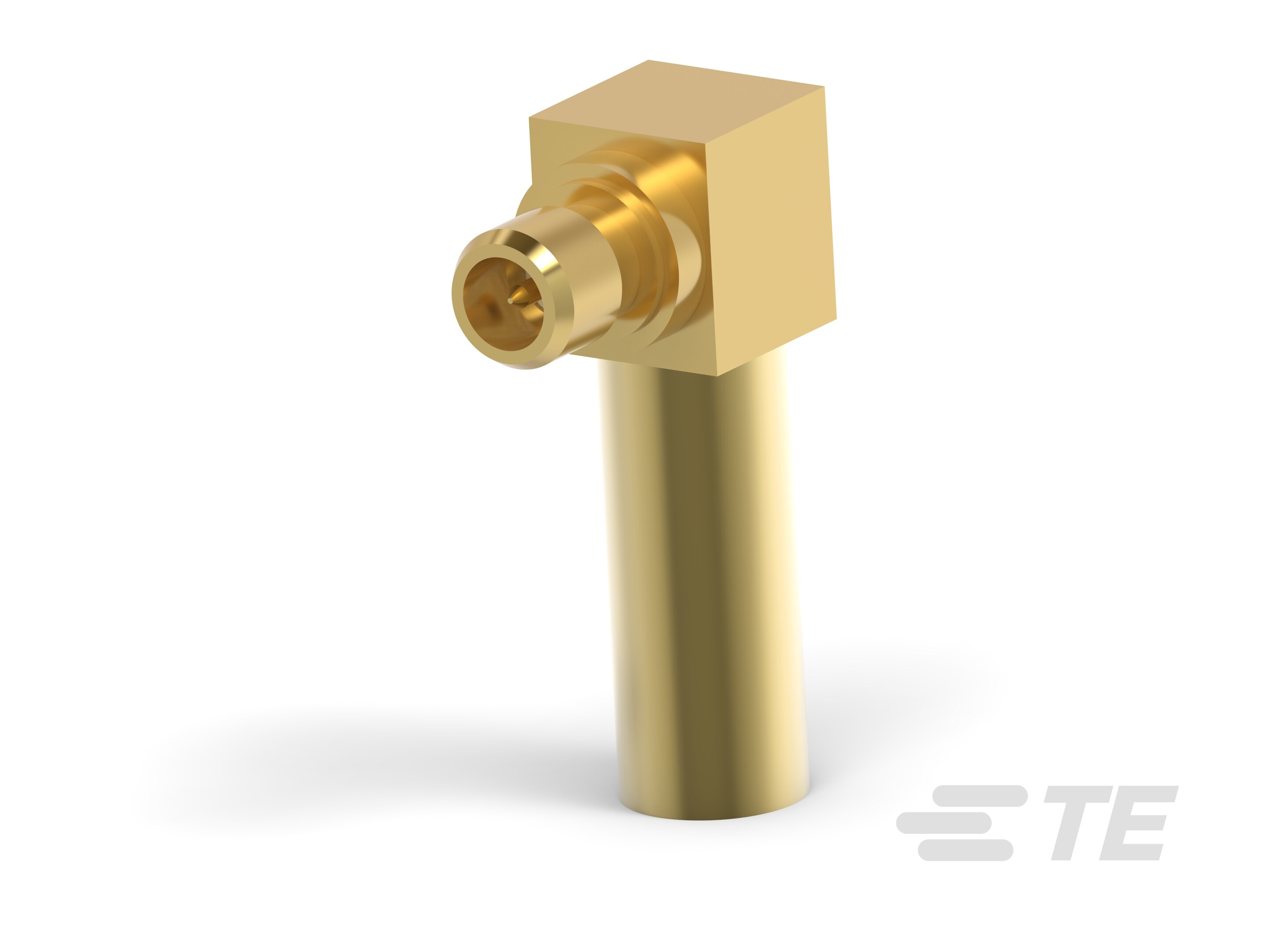

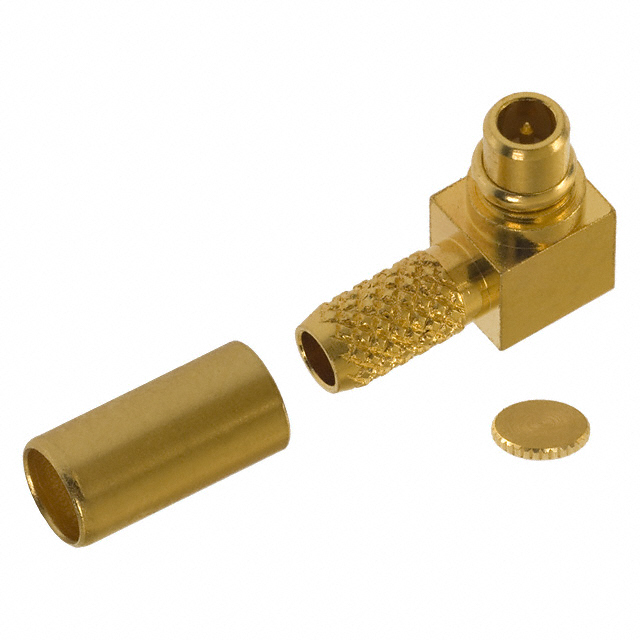

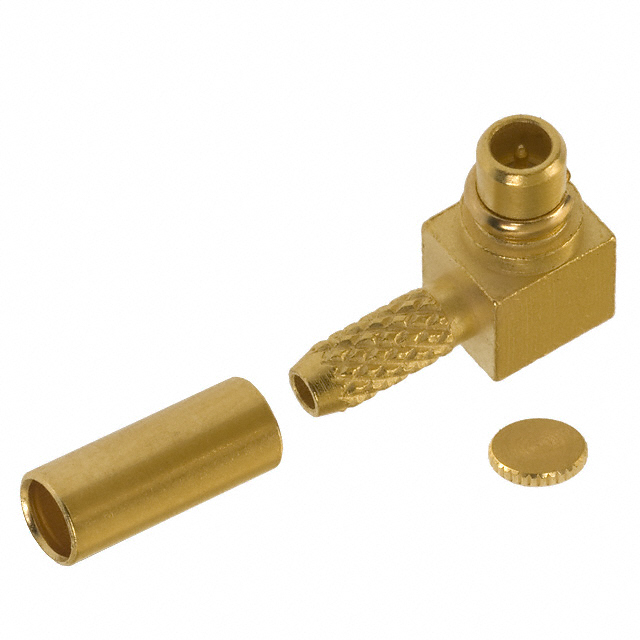

CONN MMCX PLUG R/A 50 OHM SOLDER
| Part | Voltage Rating | Operating Temperature [Max] | Operating Temperature [Min] | Includes | Mating Cycles | Center Contact Plating | Connector Style | Frequency - Max [Max] | Mounting Type | Contact Termination | Fastening Type | Shield Termination | Connector Type | Number of Ports | Cable Group | Impedance | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 170 V | 155 C | -55 C | 1 Connector 1 End Cap 1 Ferrule | 500 | Gold | MMCX | 6000 MHz | Free Hanging (In-Line) Right Angle | Solder | Snap-On | Crimp | Plug Male Pin | 1 | RD-316 | 50 Ohms | |
 TE Connectivity AMP Connectors | 170 V | 155 C | -55 C | 1 Connector 1 End Cap 1 Ferrule | 500 | Gold | MMCX | 6000 MHz | Free Hanging (In-Line) Right Angle | Solder | Snap-On | Crimp | Plug Male Pin | 1 | RG-178 | 50 Ohms | 196 |
 TE Connectivity AMP Connectors | 170 V | 155 C | -55 C | 1 Connector 1 End Cap 1 Ferrule | 500 | Gold | MMCX | 6000 MHz | Free Hanging (In-Line) Right Angle | Solder | Snap-On | Crimp | Plug Male Pin | 1 | RG-316 | 50 Ohms |
