002202 Series

Manufacturer: Molex

Catalog

CONN FFC VERT 16POS 2.54MM PCB

Part	Height Above Board [z]	Height Above Board [z]	Operating Temperature [Min]	Operating Temperature [Max]	FFC, FCB Thickness	Contact Material	Connector/Contact Type	Pitch	Pitch	Mounting Type	Voltage Rating	Features	Housing Material	Cable End Type	Termination	Flat Flex Type	Number of Positions	Material Flammability Rating	Contact Finish	Number of Rows	Pitch - Mating	Pitch - Mating	Fastening Type	Style	Current Rating (Amps)	Number of Positions Loaded	Connector Type	Contact Type	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Color	Contact Shape	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Applications	Insulation Material
Molex 0022023163	6.5 mm	0.256 in	-40 C	105 ░C	0.3 mm	Phosphor Bronze	Contacts Vertical - 1 Sided	0.1 "	2.54 mm	Through Hole	200 V	Low Insertion Force (LIF)	Polyester	Straight	Solder	FFC	16	UL94 V-0	Tin
Molex 0022022095			-40 C	80 °C		Brass				Through Hole	250 VAC	Board Hooks			Solder		9	UL94 V-0		1	0.1 "	2.54 mm	Push-Pull	Board to Board Cable	2.5 A	All	Receptacle	Cat Ear Female Non-Gendered	0.311 in	7.9 mm	0.132 in	3.35 mm	Tin	100 çin	2.54 çm	White	Square	2.54 µm	100 µin	Automotive General Purpose Medical Telecommunications	Nylon Polyamide (PA)
Molex 0022023123	6.5 mm	0.256 in	-40 C	105 ░C	0.3 mm	Phosphor Bronze	Contacts Vertical - 1 Sided	0.1 "	2.54 mm	Through Hole	200 V	Low Insertion Force (LIF)	Polyester	Straight	Solder	FFC	12	UL94 V-0	Tin
Molex 0022023113	6.5 mm	0.256 in	-40 C	105 ░C	0.3 mm	Phosphor Bronze	Contacts Vertical - 1 Sided	0.1 "	2.54 mm	Through Hole	200 V	Low Insertion Force (LIF)	Polyester	Straight	Solder	FFC	11	UL94 V-0	Tin
Molex 0022027113			-40 C	80 °C		Brass				Through Hole	250 VAC				Solder		11	UL94 V-0		1	0.1 "	2.54 mm	Push-Pull	Board to Board Cable	2.5 A	All	Receptacle	Cat Ear Female Non-Gendered	0.311 in	7.9 mm	0.132 in	3.35 mm	Tin	100 çin	2.54 çm	White	Square	2.54 µm	100 µin	Automotive General Purpose Medical Telecommunications	Nylon Polyamide (PA)
Molex 0022027093			-40 C	80 °C		Brass				Through Hole	250 VAC				Solder		9	UL94 V-0		1	0.1 "	2.54 mm	Push-Pull	Board to Board Cable	2.5 A	All	Receptacle	Cat Ear Female Non-Gendered	0.311 in	7.9 mm	0.132 in	3.35 mm	Tin	100 çin	2.54 çm	White	Square	2.54 µm	100 µin	Automotive General Purpose Medical Telecommunications	Nylon Polyamide (PA)

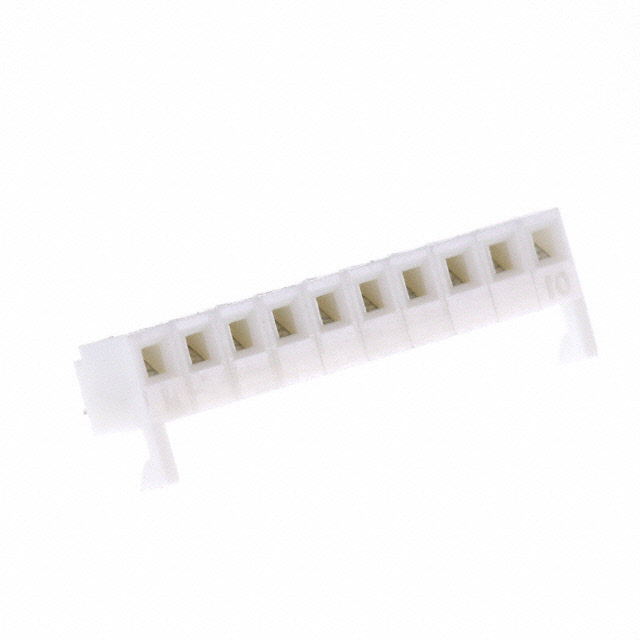

Molex 0022022105			-40 C	80 °C		Brass				Through Hole	250 VAC	Board Hooks			Solder		10	UL94 V-0		1	0.1 "	2.54 mm	Push-Pull	Board to Board Cable	2.5 A	All	Receptacle	Cat Ear Female Non-Gendered	0.311 in	7.9 mm	0.132 in	3.35 mm	Tin	100 çin	2.54 çm	White	Square	2.54 µm	100 µin	Automotive General Purpose Medical Telecommunications	Nylon Polyamide (PA)
Molex 0022022185			-40 C	80 °C		Brass				Through Hole	250 VAC	Board Hooks			Solder		18	UL94 V-0		1	0.1 "	2.54 mm	Push-Pull	Board to Board Cable	2.5 A	All	Receptacle	Cat Ear Female Non-Gendered	0.311 in	7.9 mm	0.132 in	3.35 mm	Tin	100 çin	2.54 çm	White	Square	2.54 µm	100 µin	Automotive General Purpose Medical Telecommunications	Nylon Polyamide (PA)
Molex 0022027163			-40 C	80 °C		Brass				Through Hole	250 VAC				Solder		16	UL94 V-0		1	0.1 "	2.54 mm	Push-Pull	Board to Board Cable	2.5 A	All	Receptacle	Cat Ear Female Non-Gendered	0.311 in	7.9 mm	0.132 in	3.35 mm	Tin	100 çin	2.54 çm	White	Square	2.54 µm	100 µin	Automotive General Purpose Medical Telecommunications	Nylon Polyamide (PA)

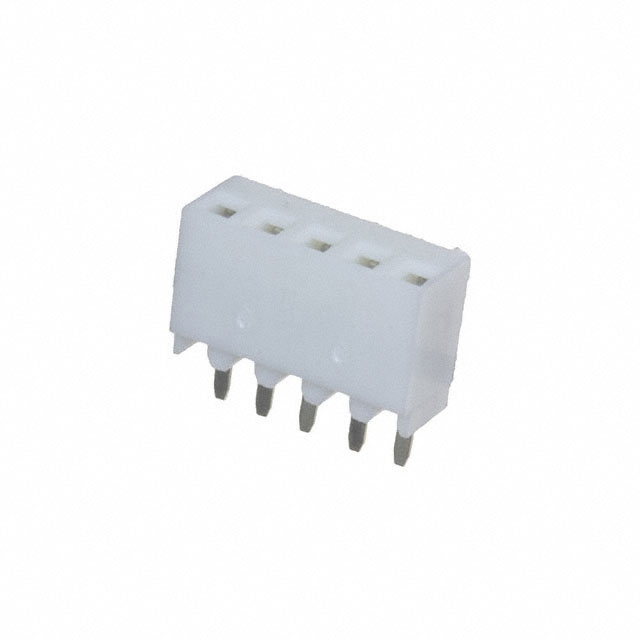

Molex 0022027053			-40 C	80 °C		Brass				Through Hole	250 VAC				Solder		5	UL94 V-0		1	0.1 "	2.54 mm	Push-Pull	Board to Board Cable	2.5 A	All	Receptacle	Cat Ear Female Non-Gendered	0.311 in	7.9 mm	0.132 in	3.35 mm	Tin	100 çin	2.54 çm	White	Square	2.54 µm	100 µin	Automotive General Purpose Medical Telecommunications	Nylon Polyamide (PA)
