858VA03 Series
Manufacturer: NorComp Inc.
Beta
⌘K

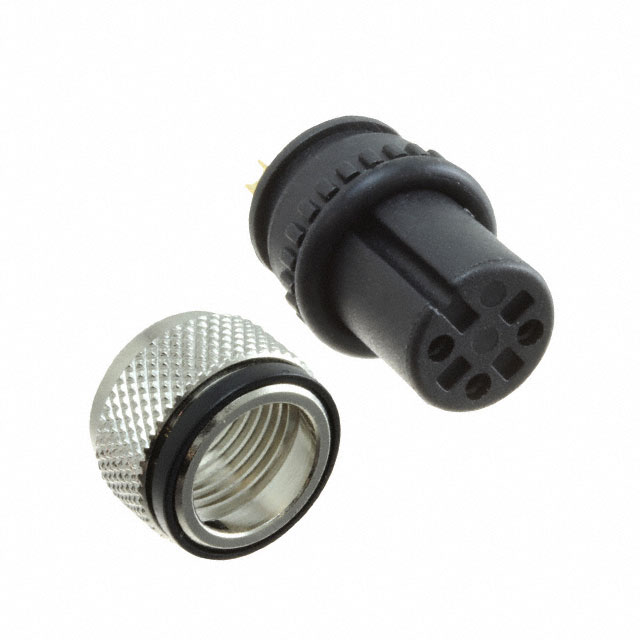

CONN PLUG FMALE 3P GOLD SLDR CUP
| Part | Shell Finish | Features | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Orientation | Ingress Protection | Mounting Type | Color | Fastening Type | Contact Finish - Mating | Shielding | Connector Type | Material Flammability Rating | Applications | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Shell Size - Insert | Insert Material | Current Rating (Amps) | Primary Material | Voltage Rating | Shell Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NorComp Inc. | Nickel | Coupling Nut | Brass | -40 C | 105 ░C | A | IP67 - Dust Tight Waterproof | Free Hanging (In-Line) | Black Silver | Threaded | Gold | Unshielded | Plug Female Sockets | UL94 V-0 | Industrial Medical | 0.25 µm | 10 µin | M12-3 | Nylon 6/6 Polyamide (PA66) | 4 A | Metal | 250 V | Brass |
