JB15HLPF Series

Catalog

ILLUMINATED LOW PROFILE PROCESS SEALED TACTILE

Part	Switch Travel	Actuator Material	Mechanical Life	Circuit	Actuator Orientation	Illumination Voltage (Nominal)	Contact Rating @ Voltage	Ingress Protection	Outline [x]	Outline [y]	Illumination Type, Color	Features	Illumination	Switch Function	Actuator Height off PCB, Vertical [z]	Mounting Type	Operating Force	Actuator Type	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style

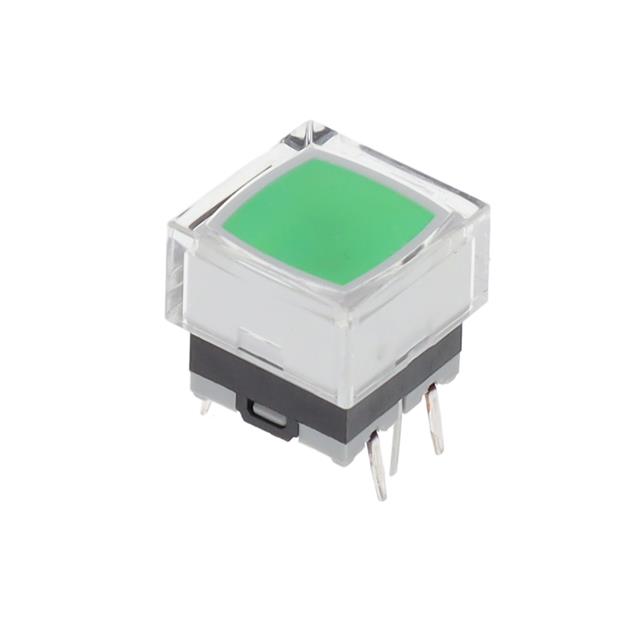

NKK Switches JB15HLPF-JF	0.3 mm	Polyacetal	1000000 Cycles	SPST-NO	Top Actuated	2.1 VDC	0.125 A 24 VDC	IP67 - Dust Tight Waterproof	10 mm	10 mm	Green LED	Process Sealed	Illuminated	Off-Mom	11.2 mm	Through Hole	265 gf	Square Button	-25 °C	70 °C	PC Pin

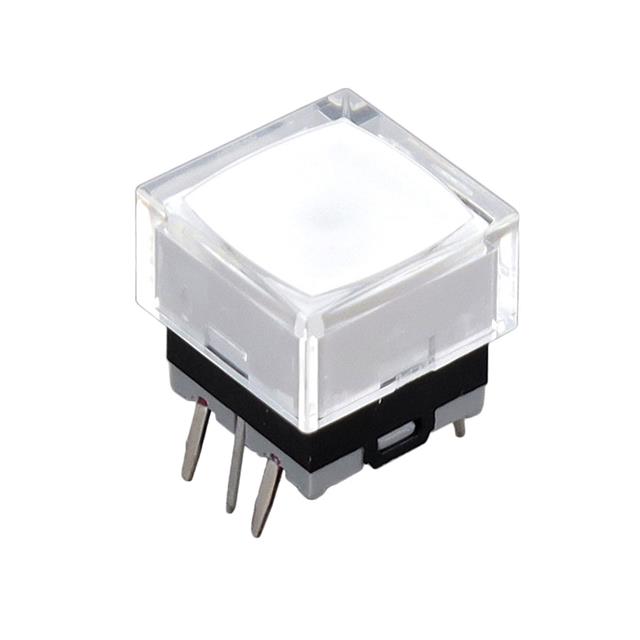

NKK Switches JB15HLPF-JB	0.3 mm	Polyacetal	1000000 Cycles	SPST-NO	Top Actuated	2.1 VDC	0.125 A 24 VDC	IP67 - Dust Tight Waterproof	10 mm	10 mm	Green LED	Process Sealed	Illuminated	Off-Mom	11.2 mm	Through Hole	265 gf	Square Button	-25 °C	70 °C	PC Pin
