M2013TX Series

Catalog

SWITCH ROCKER SPDT 6A 125V

Part	Electrical Life	Mechanical Life	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Color - Actuator/Cap	Actuator Marking	Actuator Type	Termination Style	Switch Function	Current Rating (Amps)	Approval Agency	Voltage Rating - DC	Voltage Rating - AC	Mounting Type	Features
NKK Switches M2013TXW13-DF	25000 Steps	50000 Cycles	85 °C	-30 ░C	SPDT	Green	No Marking	Concave	PC Pin	On-Off-On	3 A 6 A	CSA UL	30 V	125 V	Through Hole	Epoxy Sealed Terminals
NKK Switches M2013TXG45-DC	50000 Cycles	50000 Cycles	85 °C	-30 ░C	SPDT	Red	No Marking	Concave	PC Pin	On-Off-On	0.4 VA	CSA UL	28 V	28 V	Right Angle Through Hole Vertical	Epoxy Sealed Terminals

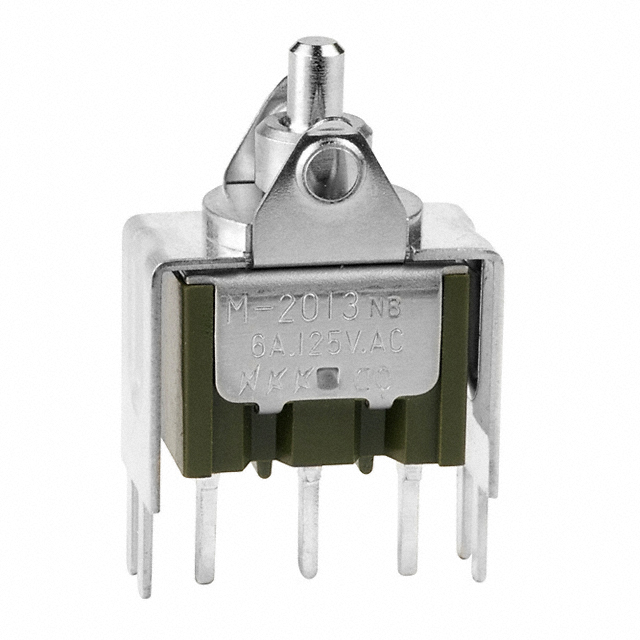

NKK Switches M2013TXW13	25000 Steps	50000 Cycles	85 °C	-30 ░C	SPDT		Varies by Cap	Actuator Arm Cap Required	PC Pin	On-Off-On	3 A 6 A	CSA UL	30 V	125 V	Through Hole	Epoxy Sealed Terminals
NKK Switches M2013TXG13-FA	50000 Cycles	50000 Cycles	85 °C	-30 ░C	SPDT	Black	No Marking	Concave	PC Pin	On-Off-On	0.4 VA	CSA UL	28 V	28 V	Through Hole	Epoxy Sealed Terminals
NKK Switches M2013TXG13-GA	50000 Cycles	50000 Cycles	85 °C	-30 ░C	SPDT	Black	No Marking	Paddle	PC Pin	On-Off-On	0.4 VA	CSA UL	28 V	28 V	Through Hole	Epoxy Sealed Terminals
NKK Switches M2013TXW13-DC	25000 Steps	50000 Cycles	85 °C	-30 ░C	SPDT	Red	No Marking	Concave	PC Pin	On-Off-On	3 A 6 A	CSA UL	30 V	125 V	Through Hole	Epoxy Sealed Terminals
NKK Switches M2013TXG13-EA
NKK Switches M2013TXW41-DH	25000 Steps	50000 Cycles	85 °C	-30 ░C	SPDT		No Marking	Concave	PC Pin	On-Off-On	3 A 6 A	CSA UL	30 V	125 V	Right Angle Through Hole Vertical	Epoxy Sealed Terminals
NKK Switches M2013TXW13-GH	25000 Steps	50000 Cycles	85 °C	-30 ░C	SPDT		No Marking	Paddle	PC Pin	On-Off-On	3 A 6 A	CSA UL	30 V	125 V	Through Hole	Epoxy Sealed Terminals
NKK Switches M2013TXW41/CUL			85 °C	-30 ░C	SPDT		Varies by Cap	Actuator Arm Cap Required	PC Pin	On-Off-On	3 A 6 A	CSA UL			Right Angle Through Hole Vertical	Epoxy Sealed Terminals
