737-022 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SGL FMALE 22POS 0.156

Part	Material - Insulation	Termination Rows	Number of Positions/Bay/Row	Contact Finish	Number of Rows	Number of Positions	Contact Type	Pitch	Pitch	Termination	Color	Operating Temperature [Min]	Operating Temperature [Max]	Read Out	Contact Material	Card Type	Contact Finish Thickness	Contact Finish Thickness	Gender	Card Thickness [Max]	Card Thickness [Min]	Mounting Type	Termination Rows [custom]	Number of Rows [custom]
EDAC Inc. 737-022-520-106	Polyester Thermoplastic	1	22	Gold	1	22	Cantilever	3.96 mm	0.156 in	Press-Fit	Black	-40 C	105 ░C	Single	Copper Alloy	Non Specified - Single Edge	30 Áin	0.76 Ám	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole
EDAC Inc. 737-022-540-106	Polyester Thermoplastic	1	22	Gold	1	22	Cantilever	3.96 mm	0.156 in	Press-Fit Wire Wrap	Black	-40 C	105 ░C	Single	Copper Alloy	Non Specified - Single Edge	30 Áin	0.76 Ám	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole
EDAC Inc. 737-022-525-206	Polyester Thermoplastic		11	Gold		22	Cantilever	3.96 mm	0.156 in	Press-Fit	Black	-40 C	105 ░C	Dual	Copper Alloy	Non Specified - Dual Edge	30 Áin	0.76 Ám	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	2	2
EDAC Inc. 737-022-545-206	Polyester Thermoplastic		11	Gold		22	Cantilever	3.96 mm	0.156 in	Press-Fit Wire Wrap	Black	-40 C	105 ░C	Dual	Copper Alloy	Non Specified - Dual Edge	30 Áin	0.76 Ám	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	2	2
EDAC Inc. 737-022-522-101	Polyester Thermoplastic	1	22	Gold	1	22	Cantilever	3.96 mm	0.156 in	Press-Fit	Black	-40 C	105 ░C	Single	Copper Alloy	Non Specified - Single Edge	30 Áin	0.76 Ám	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole
EDAC Inc. 737-022-525-101	Polyester Thermoplastic	1	22	Gold	1	22	Cantilever	3.96 mm	0.156 in	Press-Fit	Black	-40 C	105 ░C	Single	Copper Alloy	Non Specified - Single Edge	30 Áin	0.76 Ám	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole

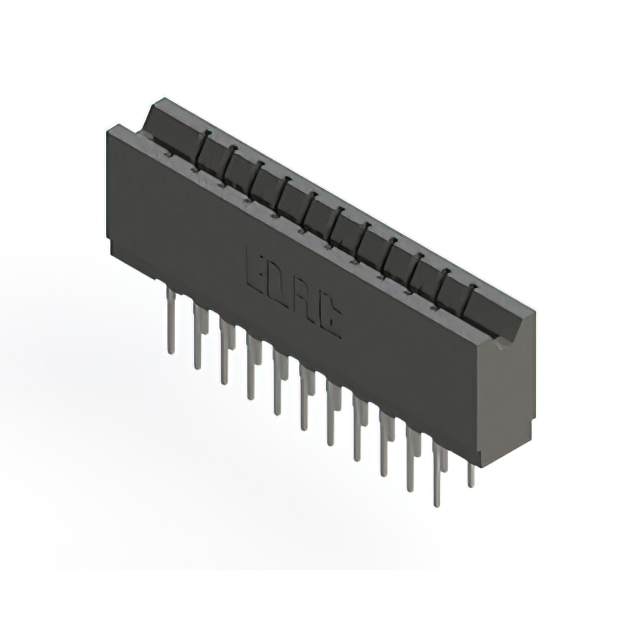

EDAC Inc. 737-022-522-206	Polyester Thermoplastic		11	Gold		22	Cantilever	3.96 mm	0.156 in	Press-Fit	Black	-40 C	105 ░C	Dual	Copper Alloy	Non Specified - Dual Edge	30 Áin	0.76 Ám	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	2	2

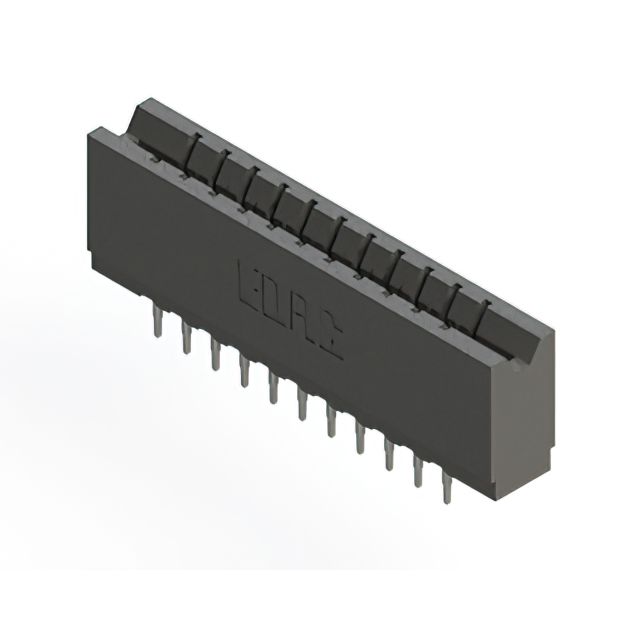

EDAC Inc. 737-022-520-206	Polyester Thermoplastic		11	Gold		22	Cantilever	3.96 mm	0.156 in	Press-Fit	Black	-40 C	105 ░C	Dual	Copper Alloy	Non Specified - Dual Edge	30 Áin	0.76 Ám	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	2	2
EDAC Inc. 737-022-541-101	Polyester Thermoplastic	1	22	Gold	1	22	Cantilever	3.96 mm	0.156 in	Press-Fit Wire Wrap	Black	-40 C	105 ░C	Single	Copper Alloy	Non Specified - Single Edge	30 Áin	0.76 Ám	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole
