892-056 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 56POS 0.100

...

Part	Material - Insulation	Termination Rows [custom]	Termination	Contact Type	Number of Positions/Bay/Row	Card Thickness [Max]	Card Thickness [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Read Out	Pitch	Pitch	Mounting Type	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Gender	Color	Number of Positions	Number of Rows [custom]	Card Type	Contact Finish	Number of Rows	Termination Rows

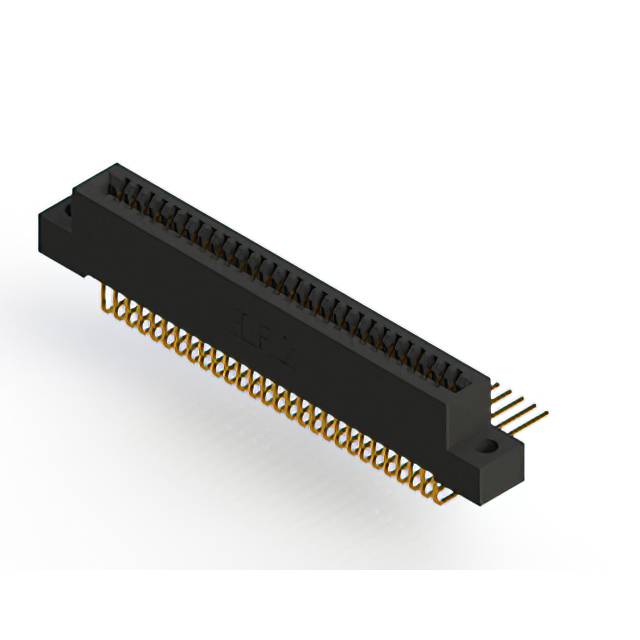

EDAC Inc. 892-056-558-204	Polyphenylene Sulfide (PPS)	2	Solder	Cantilever	28	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	0.25 Ám	10 Áin	Copper Alloy	Dual	0.1 "	2.54 mm	Right Angle Through Hole	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	Female	Black	56	2	Non Specified - Dual Edge	Gold

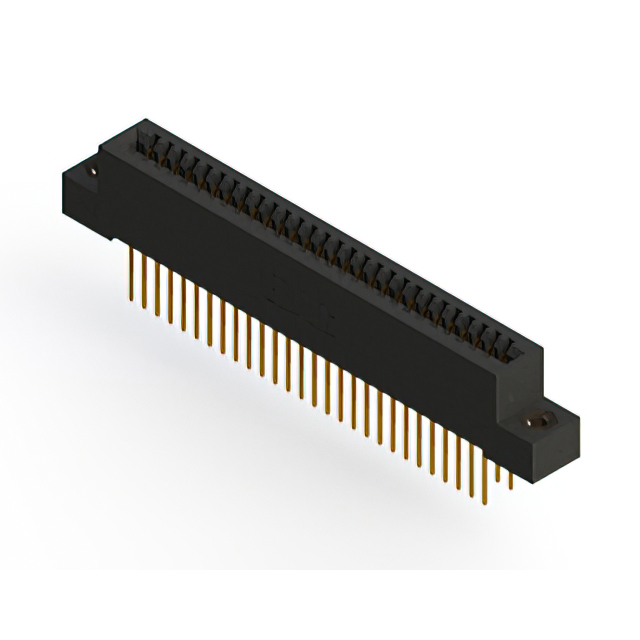

EDAC Inc. 892-056-523-208	Polyphenylene Sulfide (PPS)	2	Solder	Cantilever	28	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	0.25 Ám	10 Áin	Copper Alloy	Dual	0.1 "	2.54 mm	Through Hole	4-40 Flush Mount Threaded Insert Top Opening			Female	Black	56	2	Non Specified - Dual Edge	Gold

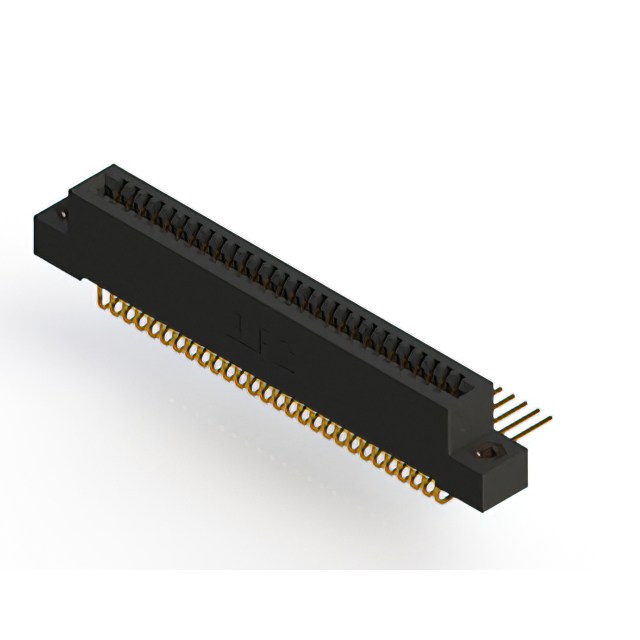

EDAC Inc. 892-056-559-207	Polyphenylene Sulfide (PPS)	2	Solder	Cantilever	28	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	0.25 Ám	10 Áin	Copper Alloy	Dual	0.1 "	2.54 mm	Right Angle Through Hole	Flush Mount M3 Threaded Insert Top Opening			Female	Black	56	2	Non Specified - Dual Edge	Gold
EDAC Inc. 892-056-558-102	Polyphenylene Sulfide (PPS)		Solder	Cantilever	56	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	0.25 Ám	10 Áin	Copper Alloy	Single	0.1 "	2.54 mm	Right Angle Through Hole	Flush Mount Top Opening Unthreaded	0.128 "	3.25 mm	Female	Black	56		Non Specified - Single Edge	Gold	1	1

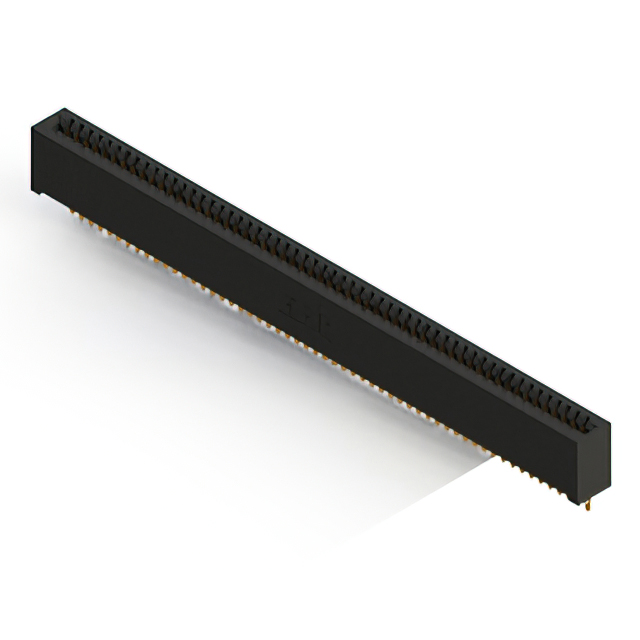

EDAC Inc. 892-056-500-101	Polyphenylene Sulfide (PPS)		Solder Eyelet(s)	Cantilever	56	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	0.25 Ám	10 Áin	Copper Alloy	Single	0.1 "	2.54 mm	Through Hole				Female	Black	56		Non Specified - Single Edge	Gold	1	1

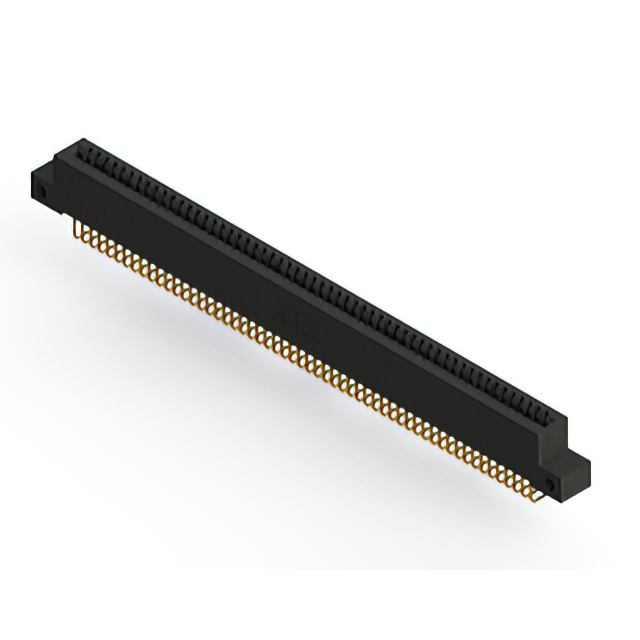

EDAC Inc. 892-056-558-112	Polyphenylene Sulfide (PPS)		Solder	Cantilever	56	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	0.25 Ám	10 Áin	Copper Alloy	Single	0.1 "	2.54 mm	Right Angle Through Hole	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	Female	Black	56		Non Specified - Single Edge	Gold	1	1
EDAC Inc. 892-056-523-201	Polyphenylene Sulfide (PPS)	2	Solder	Cantilever	28	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	0.25 Ám	10 Áin	Copper Alloy	Dual	0.1 "	2.54 mm	Through Hole				Female	Black	56	2	Non Specified - Dual Edge	Gold
EDAC Inc. 892-056-544-102	Polyphenylene Sulfide (PPS)		Wire Wrap	Cantilever	56	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	0.25 Ám	10 Áin	Copper Alloy	Single	0.1 "	2.54 mm	Through Hole	Flush Mount Top Opening Unthreaded	0.128 "	3.25 mm	Female	Black	56		Non Specified - Single Edge	Gold	1	1
EDAC Inc. 892-056-520-201	Polyphenylene Sulfide (PPS)	2	Solder	Cantilever	28	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	0.25 Ám	10 Áin	Copper Alloy	Dual	0.1 "	2.54 mm	Through Hole				Female	Black	56	2	Non Specified - Dual Edge	Gold
EDAC Inc. 892-056-558-203	Polyphenylene Sulfide (PPS)	2	Solder	Cantilever	28	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	0.25 Ám	10 Áin	Copper Alloy	Dual	0.1 "	2.54 mm	Right Angle Through Hole	Floating Bobbin Flush Mount	0.116 "	2.95 mm	Female	Black	56	2	Non Specified - Dual Edge	Gold
