6609053 Series

Catalog

PWR ENT RCPT IEC320-C14 PANEL QC

Part	Connector Style	Current Rating - Filter	Connector Type	Mounting Type	Termination	Termination	Termination	Filter Type	Approval Agency	Applications	Configuration	Current	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Rated AC	Termination Style	Frequency - Operating [Max]	Frequency - Operating [Min]	Inductance
TE Connectivity Corcom Filters 6609053-3	IEC 320-C14	3 A	Receptacle Male Blades	Flange Panel Mount	6.3 mm	Quick Connect	0.25 "	Filtered (EMI RFI) - Commercial	CSA UL VDE
TE Connectivity Corcom Filters 6609053-1				Chassis Mount				Single Phase	CSA UR VDE	General Purpose	Single Stage	3 A	40 °C	-10 °C	250 V	Quick Connect	60 Hz	50 Hz	36.8 mH
TE Connectivity Corcom Filters 6609053-5				Chassis Mount				Single Phase	CSA UR VDE	General Purpose	Single Stage	6 A	40 °C	-10 °C	250 V	Quick Connect	60 Hz	50 Hz	18.5 mH
TE Connectivity Corcom Filters 6609053-4	IEC 320-C14	3 A	Receptacle Male Blades	Flange Panel Mount	6.3 mm	Quick Connect	0.25 "	Filtered (EMI RFI) - Commercial	CSA UL VDE

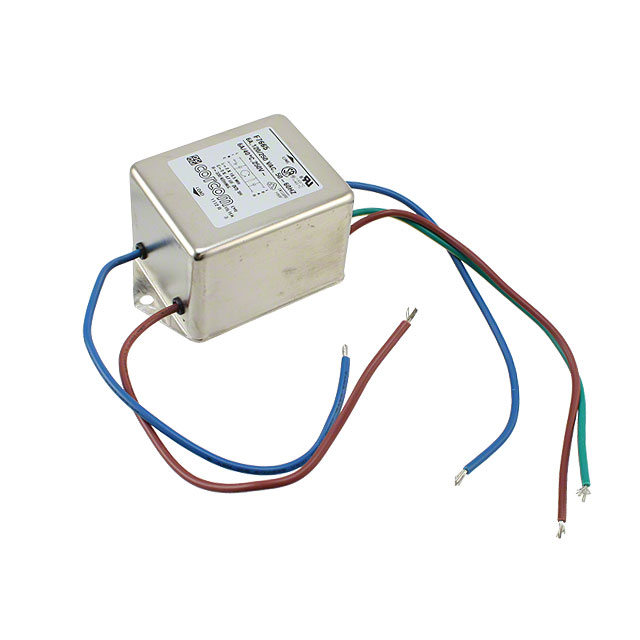

TE Connectivity Corcom Filters 6609053-2				Chassis Mount				Single Phase	CSA UR VDE	General Purpose	Single Stage	3 A	40 °C	-10 °C	250 V	Wire Leads	60 Hz	50 Hz	36.8 mH
