SM14B-ZE Series
Manufacturer: JST Sales America Inc.
Beta
⌘K

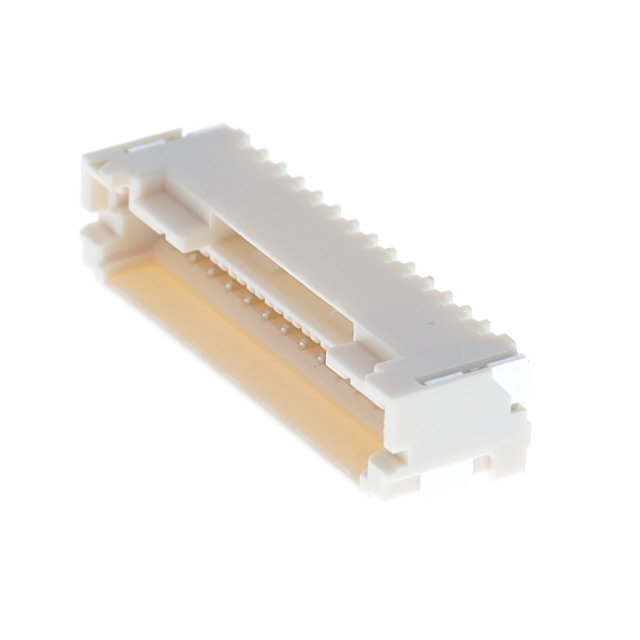

CONN HEADER SMD R/A 14POS 1.5MM
| Part | Contact Finish - Post | Features | Insulation Color | Number of Positions Loaded | Contact Material | Number of Rows | Insulation Material | Operating Temperature [Max] | Operating Temperature [Min] | Style | Material Flammability Rating | Contact Shape | Mounting Type | Fastening Type | Insulation Height [z] | Insulation Height [z] | Contact Type | Current Rating (Amps) | Number of Positions | Connector Type | Shrouding | Termination | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Tin | Solder Retention | Natural | All | Copper Alloy | 1 | Nylon Polyamide (PA) | 85 °C | -25 °C | Board to Cable/Wire | UL94 V-0 | Rectangular | Right Angle Surface Mount | Locking Ramp | 0.228 " | 5.8 mm | Outer Shroud Contact | 2 A | 14 | Header | Shrouded - 4 Wall | Solder | 100 V |
