M2410 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

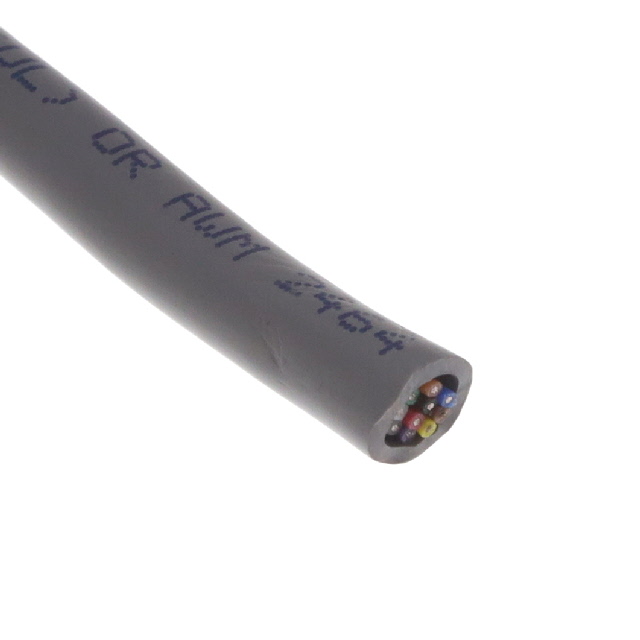

CABLE 10COND 28AWG SHLD 3000'
| Part | Shield Material | Shield Coverage | Number of Conductors [custom] | Length | Length | Shield Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Material | Conductor Insulation | Cable Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Strand [custom] | Conductor Strand [custom] | Features | Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Jacket Color | Wire Gauge | Jacket (Insulation) Material | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum Copper Tinned | 65 % 100 % | 10 | 914.4 m | 3000 ' | Braid Foil | 0.813 mm | 0.032 in | Copper Tinned | Poly-Vinyl Chloride (PVC) | Multi-Conductor | 0.23 in | 5.84 mm | 7 | 36 AWG | Drain Wire Rip Cord | 300 VDC | 80 °C | -20 ░C | Slate | 28 AWG | Poly-Vinyl Chloride (PVC) | UL Style 2464 |
