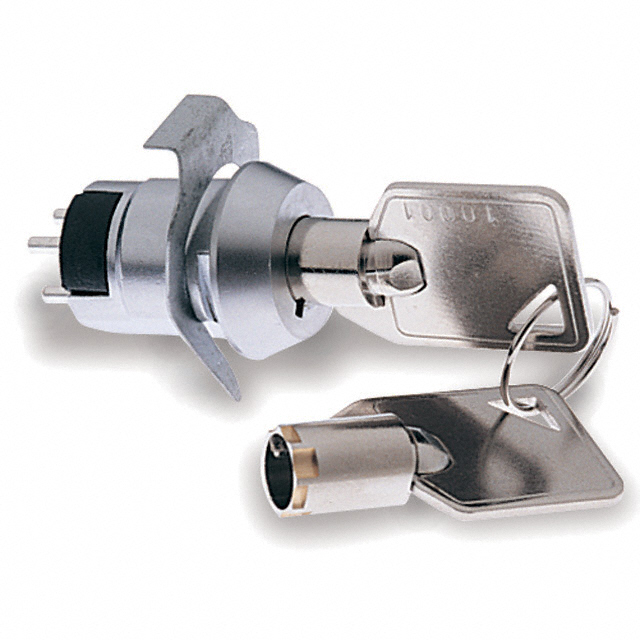

KO124 Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH KEYLOCK 2POS SPST 2A 125V
| Part | Depth Behind Flange | Termination Style | Actuator Type | Mounting Type | Panel Cutout Dimensions [diameter] | Number of Positions | Key Removable Positions | Contact Finish | Contact Material | Switch Function | Circuit | Voltage Rating - AC | Angle of Throw | Contact Timing | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 27.7 mm | Solder Lug | Tubular Key | Panel Mount | 19 mm | 2 | All | Silver | Copper Alloy | Off-On | SPST | 125 V | 90 ° | Not Specified | 2 A |
E-Switch | 27.7 mm | Solder Lug | Tubular Key | Panel Mount | 19 mm | 2 | All | Silver | Copper Alloy | On-On | SPDT | 125 V | 90 ° | Not Specified | 2 A |
E-Switch | 27.7 mm | Solder Lug | Tubular Key | Panel Mount | 19 mm | All | Silver | Copper Alloy | Off-On-On | SPDT | 125 V | 45 ° 90 ° | Not Specified | 2 A |
