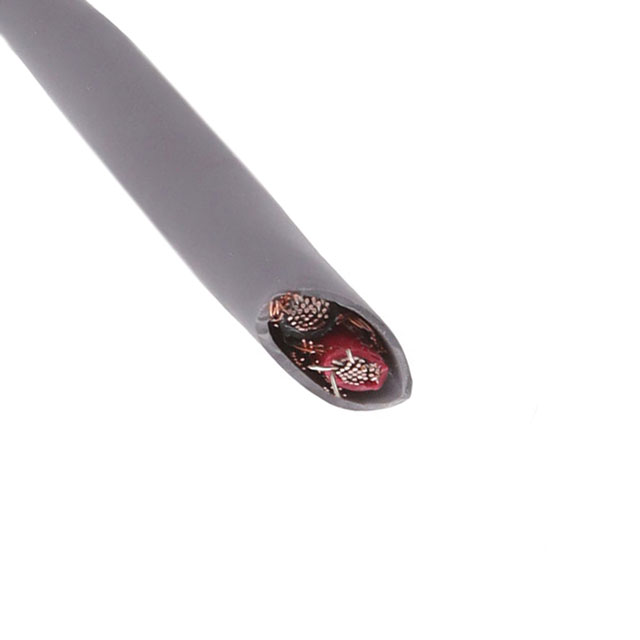

1750 Series
Manufacturer: ALPHA WIRE
Beta
⌘K
MULTICONDUCTOR CABLE, CONTROL, SHIELDED, 2 CONDUCTOR, 14 AWG, 1000 FT, 304.8 M
| Part | Shield Coverage | Shield Material | Jacket Color | Cable Type | Number of Conductors | Usage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Operating Temperature [Max] | Operating Temperature [Min] | Conductor Insulation | Shield Type | Wire Gauge | Length | Length | Jacket (Insulation) Material | Voltage | Conductor Material | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 75 % | Copper Bare | Slate | Multi-Conductor | 2 | Communication Control | 0.299 " | 7.6 mm | 80 °C | -20 ░C | Poly-Vinyl Chloride (PVC) | Braid | 14.5 AWG | 304.8 m | 1000 ft | Poly-Vinyl Chloride (PVC) | 450 V | Copper Tinned | 41 | 30 | 0.02 " | 0.508 mm |
