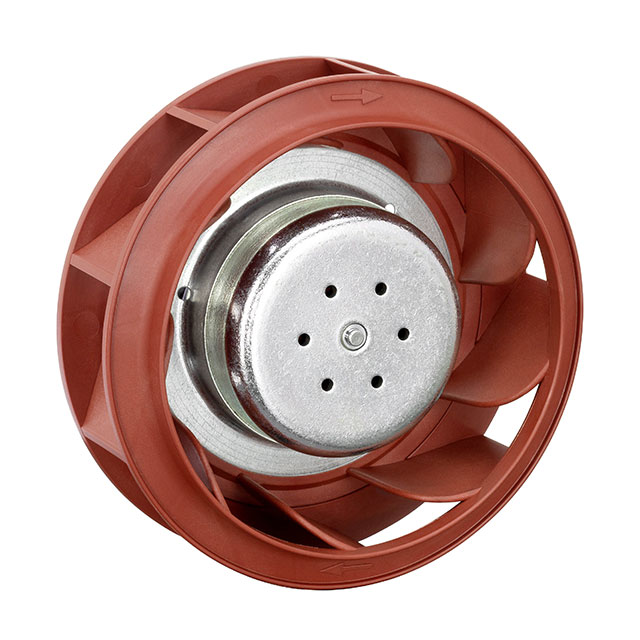

RER120 Series
Manufacturer: ebm-papst Inc.
Beta
⌘K

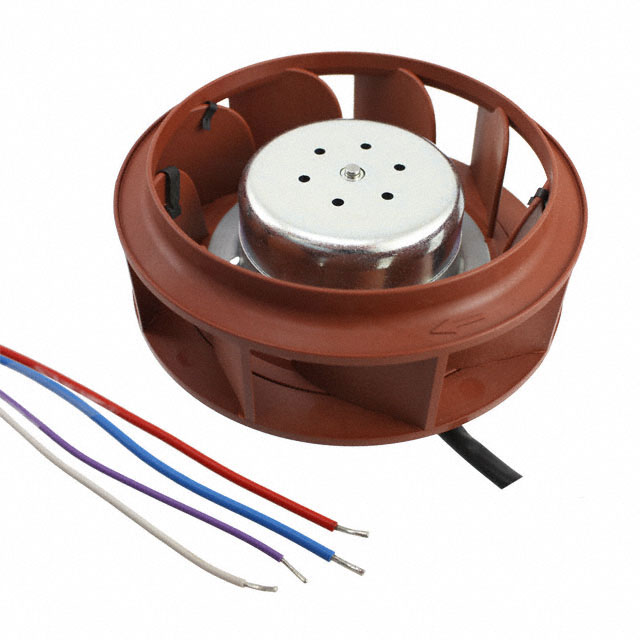

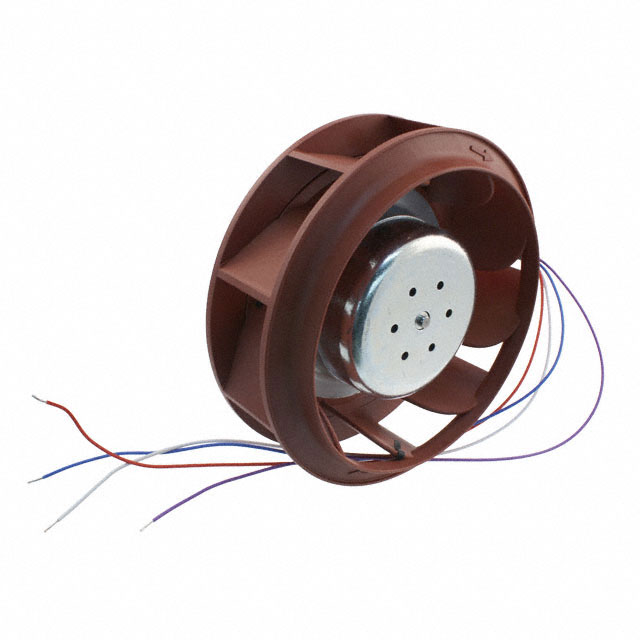

DC MOTORIZED IMPELLER CENTRIFUGAL BALL BEARING 24V 6V TO 32V 221.9CFM
| Part | Material - Blade | Voltage Range [Max] | Voltage Range [Min] | RPM | Fan Type | Termination | Bearing Type | Width [y] | Weight | Weight | Size / Dimension | Size / Dimension [diameter] | Voltage - Rated | Features | Air Flow | Air Flow | Power (Watts) | Lifetime @ Temp. | Operating Temperature [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ebm-papst Inc. | Fiberglass Reinforced Plastic | 32 V | 16 VDC | 6100 RPM | Motorized Impellers | 4 Wire Leads | Ball | 54 mm | 430.91 g | 0.95 lb | Round | 120 mm | 24 VDC | PWM Control Speed Sensor (Tach) | 6.21 m³/min | 221.9 CFM | 78 W | |||||
 ebm-papst Inc. | Fiberglass Reinforced Plastic | 60 V | 36 VDC | 6300 RPM | Motorized Impellers | 4 Wire Leads | Ball | 54 mm | 430.91 g | 0.95 lb | Round | 120 mm | 48 VDC | PWM Control Speed Sensor (Tach) | 6.43 m³/min | 229.5 CFM | 92 W | |||||
 ebm-papst Inc. | Fiberglass Reinforced Plastic | 32 V | 16 VDC | 5200 RPM | Motorized Impellers | 4 Wire Leads | Ball | 54 mm | 430.91 g | 0.95 lb | Round | 120 mm | 24 VDC | PWM Control Speed Sensor (Tach) | 5.26 m³/min | 188 CFM | 51 W | 40 °C 60000 Hrs | 60 °C | 60 °C | -4 °F | -20 ░C |
