2842116 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

BOARD TO BOARD & MEZZANINE CONNECTORS 10P,2MM,BRK HDR,SRRT,2.8,0.76AU,TB W/CAP

Part	Voltage Rating	Contact Material	Contact Finish - Post	Insulation Color	Connector Type	Insulation Height	Insulation Height	Contact Finish - Mating	Number of Rows	Contact Length - Mating	Contact Length - Mating	Contact Shape	Pitch - Mating [x]	Pitch - Mating [x]	Fastening Type	Contact Length - Post [x]	Contact Length - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions Loaded	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Mounting Type	Number of Positions	Material Flammability Rating	Shrouding	Features	Current Rating (Amps)	Insulation Material	Contact Type

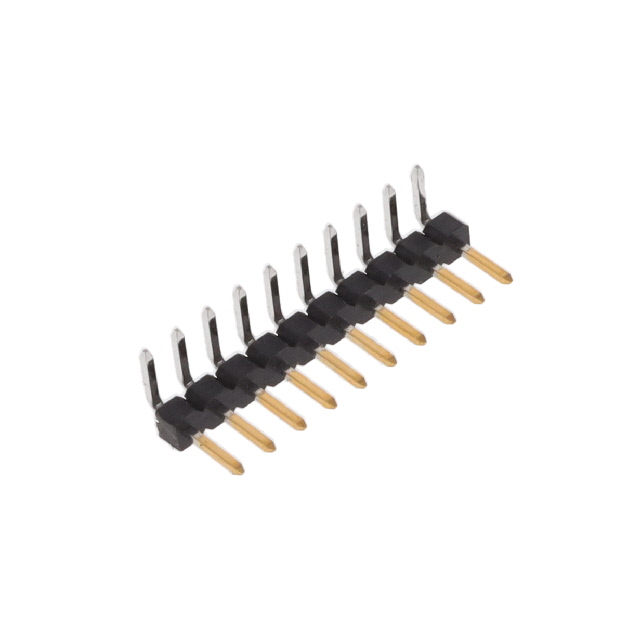

TE Connectivity Raychem Cable Protection 1-2842116-0	125 VAC	Copper Alloy	Tin	Black	Breakaway Header	1.5 mm	0.059 "	Gold	1	4 mm	0.157 in	Square	0.079 in	2 mm	Push-Pull	0.11 in	2.79 mm	30 Áin	0.76 Ám	Solder	125 °C	-40 °C	All	2 çm	78.7 çin	Through Hole Right Angle	10	UL94 V-0	Unshrouded	Pick and Place	2 A	Thermoplastic	Male Pin

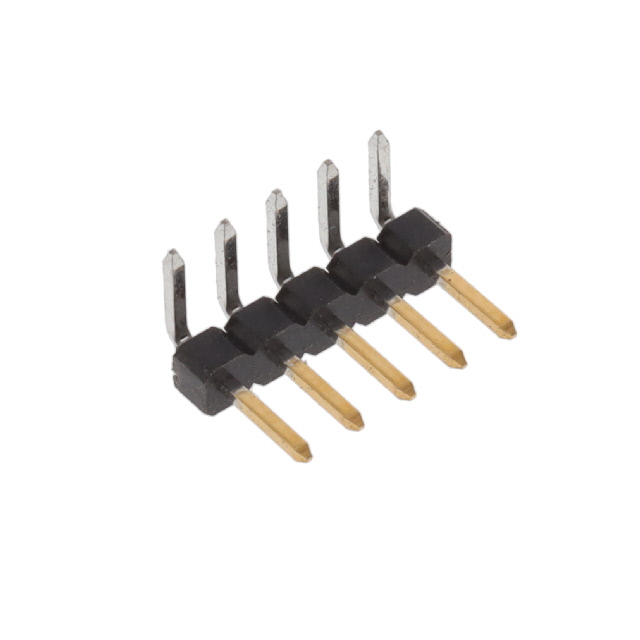

TE Connectivity Raychem Cable Protection 2842116-5	125 VAC	Copper Alloy	Tin	Black	Breakaway Header	1.5 mm	0.059 "	Gold	1	4 mm	0.157 in	Square	0.079 in	2 mm	Push-Pull	0.11 in	2.79 mm	30 Áin	0.76 Ám	Solder	125 °C	-40 °C	All	2 çm	78.7 çin	Through Hole Right Angle		UL94 V-0	Unshrouded	Pick and Place	2 A	Thermoplastic	Male Pin
TE Connectivity Raychem Cable Protection 2842116-8	125 VAC	Copper Alloy	Tin	Black	Breakaway Header	1.5 mm	0.059 "	Gold	1	4 mm	0.157 in	Square	0.079 in	2 mm	Push-Pull	0.11 in	2.79 mm	30 Áin	0.76 Ám	Solder	125 °C	-40 °C	All	2 çm	78.7 çin	Through Hole Right Angle	8	UL94 V-0	Unshrouded	Pick and Place	2 A	Thermoplastic	Male Pin

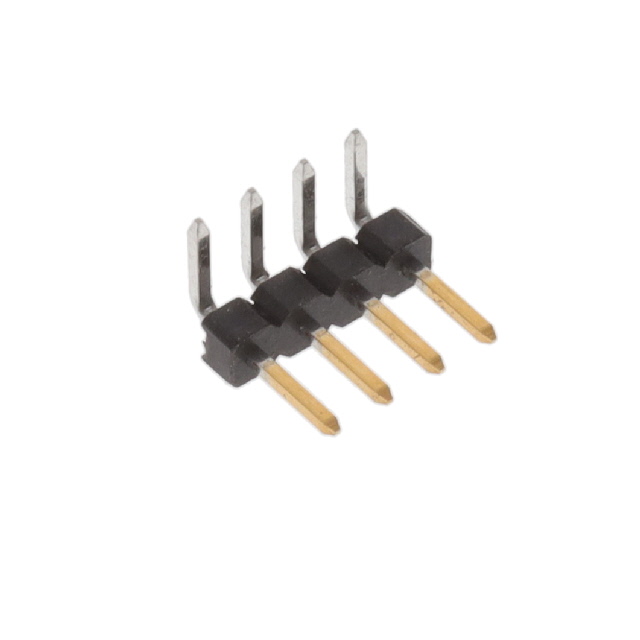

TE Connectivity Raychem Cable Protection 2842116-4	125 VAC	Copper Alloy	Tin	Black	Breakaway Header	1.5 mm	0.059 "	Gold	1	4 mm	0.157 in	Square	0.079 in	2 mm	Push-Pull	0.11 in	2.79 mm	30 Áin	0.76 Ám	Solder	125 °C	-40 °C	All	2 çm	78.7 çin	Through Hole Right Angle	4	UL94 V-0	Unshrouded	Pick and Place	2 A	Thermoplastic	Male Pin
