S5B-ZR Series

Catalog

CONN HEADER R/A 5POS 1.5MM

Part	Style	Contact Length - Mating	Contact Length - Mating	Contact Type	Contact Shape	Contact Length - Post [x]	Contact Length - Post [x]	Termination	Shrouding	Mounting Type	Number of Positions	Contact Finish - Post	Number of Positions Loaded	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Height	Insulation Height	Contact Material	Fastening Type	Insulation Material	Connector Type	Material Flammability Rating	Voltage Rating	Insulation Color	Number of Rows	Contact Length - Post	Features

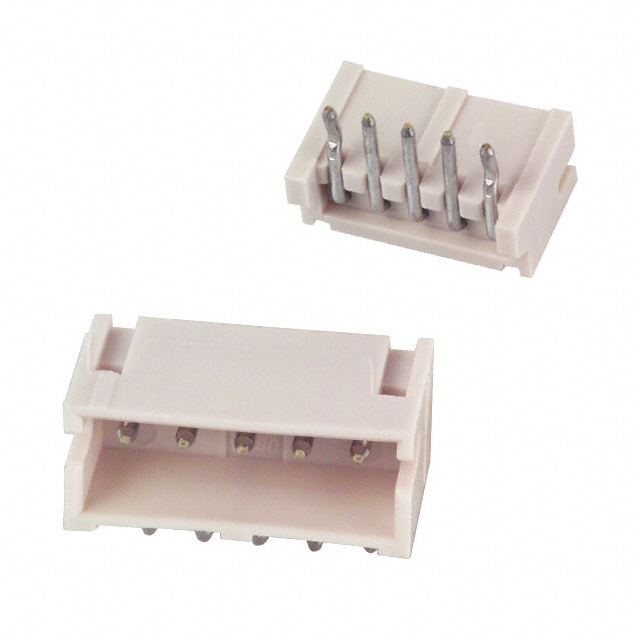

JST Sales America Inc. S5B-ZR	Board to Cable/Wire	2.4 mm	0.094 in	Male Pin	Circular	0.106 in	2.69 mm	Solder	Shrouded - 4 Wall	Right Angle Through Hole	5	Tin	All	85 °C	-25 °C	3.7 mm	0.146 in	Brass	Detent Lock	Glass Filled Nylon 6/6 Polyamide (PA66)	Header	UL94 V-0	50 V	Natural	1
JST Sales America Inc. S5B-ZR-3.4	Board to Cable/Wire			Male Pin	Circular	0.134 "		Solder	Shrouded - 4 Wall	Right Angle Through Hole	5	Tin	All	85 °C	-25 °C	3.7 mm	0.146 in	Brass	Detent Lock	Glass Filled Nylon 6/6 Polyamide (PA66)	Header	UL94 V-0	50 V	Natural	1	3.4 mm

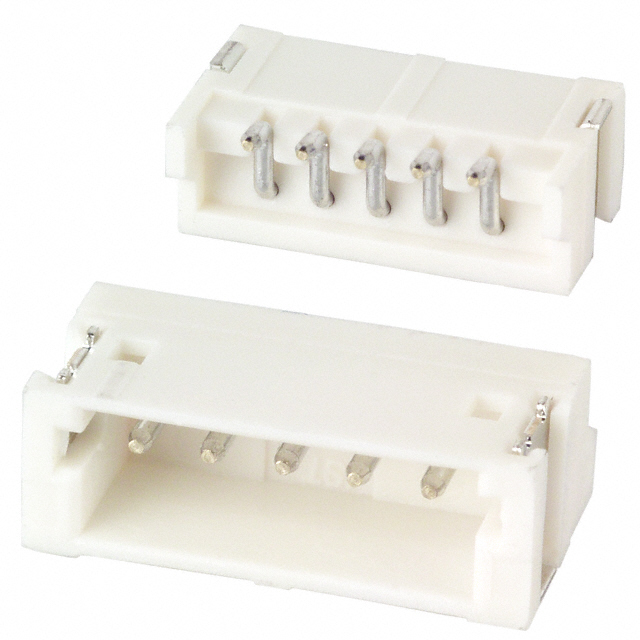

JST Sales America Inc. S5B-ZR-SM4A-TF	Board to Cable/Wire			Male Pin	Circular			Solder	Shrouded - 4 Wall	Right Angle Surface Mount	5	Tin	All	85 °C	-25 °C	3.7 mm	0.146 in	Brass	Detent Lock	Nylon 6T Polyamide (PA6T)	Header	UL94 V-0	50 V	Natural	1		Solder Retention
JST Sales America Inc. S5B-ZR-SM2-TF	Board to Cable/Wire	2.4 mm	0.094 in	Male Pin	Circular			Solder	Shrouded - 4 Wall	Right Angle Surface Mount	5	Tin	All	85 °C	-25 °C	3.7 mm	0.146 in	Brass	Detent Lock	Glass Filled Nylon 4/6 Polyamide (PA46)	Header	UL94 V-0	50 V	Natural	1		Board Guide
