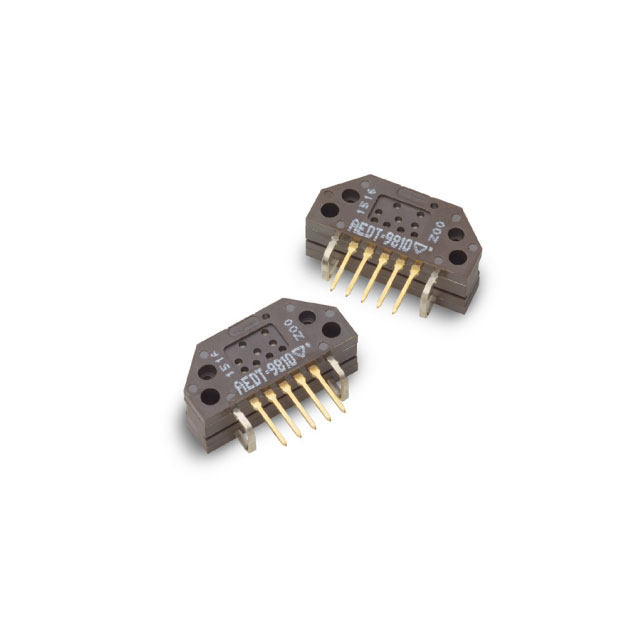

AEDT-9811 Series

Catalog

ROTARY ENCODER OPTICAL 512PPR

Part	Encoder Type	Mounting Type	Pulses per Revolution	Orientation	Output Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Termination Style	Actuator Type
Broadcom Limited AEDT-9811-I00	Optical	Chassis Mount	512	User Selectable	Quadrature with Index (Incremental)	5.5 V	4.5 V	Terminal Pins	Codewheel Not Included
Broadcom Limited AEDT-9811-U00	Optical	Chassis Mount	2048	User Selectable	Quadrature with Index (Incremental)	5.5 V	4.5 V	Terminal Pins	Codewheel Not Included
Broadcom Limited AEDT-9811-Z00	Optical	Chassis Mount	5000	User Selectable	Quadrature with Index (Incremental)	5.5 V	4.5 V	Terminal Pins	Codewheel Not Included
Broadcom Limited AEDT-9811-B00	Optical	Chassis Mount	1000	User Selectable	Quadrature with Index (Incremental)	5.5 V	4.5 V	Terminal Pins	Codewheel Not Included
Broadcom Limited AEDT-9811-R00	Optical	Chassis Mount	4096	User Selectable	Quadrature with Index (Incremental)	5.5 V	4.5 V	Terminal Pins	Codewheel Not Included
Broadcom Limited AEDT-9811-L00	Optical	Chassis Mount	1250	User Selectable	Quadrature with Index (Incremental)	5.5 V	4.5 V	Terminal Pins	Codewheel Not Included
