G861B10 Series
Manufacturer: Amphenol ICC (Commercial Products)
Beta
⌘K

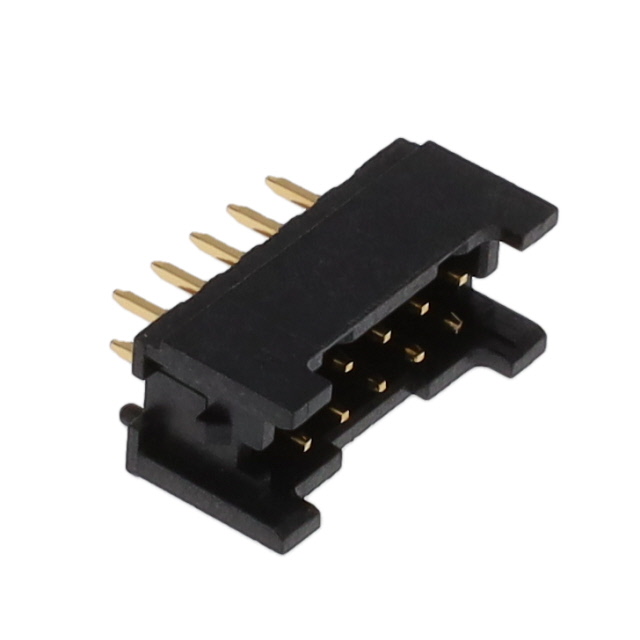

PROTECT HEADER 2.0MM PITCH STR,2
| Part | Insulation Color | Row Spacing - Mating | Row Spacing - Mating | Insulation Material | Contact Material | Termination | Contact Shape | Contact Type | Shrouding | Insulation Height | Insulation Height | Features | Material Flammability Rating | Contact Finish - Mating | Number of Positions Loaded | Pitch - Mating | Pitch - Mating | Style | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Mounting Type | Fastening Type | Number of Positions | Connector Type | Number of Rows [custom] | Contact Length - Post | Contact Length - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (Commercial Products) | Black | 2 mm | 0.079 in | Nylon 4T Polyamide (PA4T) | Copper Alloy | Solder | Square | Male Pin | Shrouded - 4 Wall | 0.256 in | 6.5 mm | Board Guide | UL94 V-0 | Gold | All | 0.079 " | 2 mm | Board to Cable/Wire | 0.38 µm | 15 µin | Through Hole | Locking Ramp | 20 | Header | 2 | 0.118 in | 3 mm |
