P35-15 Series

Manufacturer: Polytron

Catalog

AC-DC POWER MODULE 15VDC OUTPUT

Part	Voltage - Input [Min]	Voltage - Input [Max]	Number of Outputs	Approval Agency	Current - Output 1	Applications	Voltage - Output 1	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Type	Mounting Type	Line Regulation	Load Regulation	Features	Current - Output (Max) [Max]	Package / Case
Polytron P35-15S-FST	105 VAC	125 VAC	1	CE cURus UL	300 mA	ITE (Commercial)	15 V	4.1 "	39.6 mm	63.5 mm	1.56 "	104.1 mm	2.5 "	71 °C	-25 °C	Enclosed	Chassis Mount
Polytron P35-15SXA	105 VAC	230 VAC	1	CE cURus UL		ITE (Commercial)	15 V	3.5 "	39.6 mm	63.5 mm	1.56 "	88.9 mm	2.5 "	71 °C	-25 °C	Enclosed	Through Hole	0.1 %	0.1 %	SCP	0.3 A	7-DIP Module 5 Leads
Polytron P35-15S/MHIA	105 VAC	125 VAC	1	CE cURus		Medical	15 V	3.5 "	39.6 mm	63.5 mm	1.56 "	88.9 mm	2.5 "	71 °C	-25 °C	Enclosed	Through Hole	0.1 %	0.1 %		0.3 A	7-DIP Module 5 Leads
Polytron P35-15SX/MHIA	105 VAC	220 VAC	1	CE cURus		Medical	15 V	3.5 "	39.6 mm	63.5 mm	1.56 "	88.9 mm	2.5 "	71 °C	-25 °C	Enclosed	Through Hole	0.1 %	0.1 %		0.3 A	7-DIP Module 5 Leads
Polytron P35-15SQ	100 VAC	125 VAC	1	CE cURus UL		ITE (Commercial)	15 V	3.5 "	39.6 mm	63.5 mm	1.56 "	88.9 mm	2.5 "	71 °C	-25 °C	Enclosed	Through Hole	0.1 %	0.1 %	SCP	0.3 A	7-DIP Module 5 Leads
Polytron P35-15S-04/MHIA	105 VAC	125 VAC	1	CE cURus		Medical	15 V	3.5 "	39.6 mm	63.5 mm	1.56 "	88.9 mm	2.5 "	71 °C	-25 °C	Enclosed	Through Hole	0.1 %	0.1 %		0.3 A	7-DIP Module 5 Leads

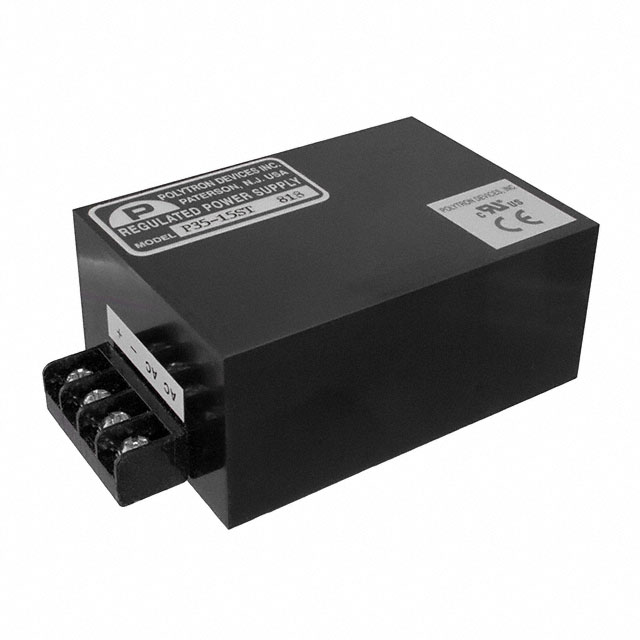

Polytron P35-15ST	105 VAC	125 VAC	1	CE cURus	300 mA	ITE (Commercial)	15 V	4.1 "	39.6 mm	63.5 mm	1.56 "	104.1 mm	2.5 "	71 °C	-25 °C	Enclosed	Chassis Mount
Polytron P35-15SXA/MHIA	105 VAC	230 VAC	1	CE cURus		Medical	15 V	3.5 "	39.6 mm	63.5 mm	1.56 "	88.9 mm	2.5 "	71 °C	-25 °C	Enclosed	Through Hole	0.1 %	0.1 %		0.3 A	7-DIP Module 5 Leads
Polytron P35-15SXE/MHIA	105 VAC	240 VAC	1	CE cURus		Medical	15 V	3.5 "	39.6 mm	63.5 mm	1.56 "	88.9 mm	2.5 "	71 °C	-25 °C	Enclosed	Through Hole	0.1 %	0.1 %		0.3 A	7-DIP Module 5 Leads
Polytron P35-15SAX/MHIA	115 VAC	220 VAC	1	CE cURus		Medical	15 V	3.5 "	39.6 mm	63.5 mm	1.56 "	88.9 mm	2.5 "	71 °C	-25 °C	Enclosed	Through Hole	0.1 %	0.1 %		0.3 A	7-DIP Module 5 Leads
