746-076 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 76POS 0.125

Part	Termination Rows [custom]	Material - Insulation	Pitch	Pitch	Contact Finish Thickness	Contact Finish Thickness	Card Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows [custom]	Contact Finish	Number of Positions	Termination	Contact Type	Card Thickness [Max]	Card Thickness [Min]	Mounting Type	Contact Material	Read Out	Color	Number of Positions/Bay/Row [custom]	Gender
EDAC Inc. 746-076-540-601	2	Polyester Thermoplastic	3.18 mm	0.125 in	30 Áin	0.76 Ám	Non Specified - Dual Edge	-40 C	105 ░C	2	Gold	76	Press-Fit Wire Wrap	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	Copper Alloy	Dual	Black	38	Female
EDAC Inc. 746-076-545-601	2	Polyester Thermoplastic	3.18 mm	0.125 in	30 Áin	0.76 Ám	Non Specified - Dual Edge	-40 C	105 ░C	2	Gold	76	Press-Fit Wire Wrap	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	Copper Alloy	Dual	Black	38	Female
EDAC Inc. 746-076-560-201	2	Polyester Thermoplastic	3.18 mm	0.125 in	30 Áin	0.76 Ám	Non Specified - Dual Edge	-40 C	105 ░C	2	Gold	76	Press-Fit	Cantilever Make Before Break	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	Copper Alloy	Dual	Black	38	Female
EDAC Inc. 746-076-520-601	2	Polyester Thermoplastic	3.18 mm	0.125 in	30 Áin	0.76 Ám	Non Specified - Dual Edge	-40 C	105 ░C	2	Gold	76	Press-Fit	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	Copper Alloy	Dual	Black	38	Female
EDAC Inc. 746-076-540-606	2	Polyester Thermoplastic	3.18 mm	0.125 in	30 Áin	0.76 Ám	Non Specified - Dual Edge	-40 C	105 ░C	2	Gold	76	Press-Fit Wire Wrap	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	Copper Alloy	Dual	Black	38	Female
EDAC Inc. 746-076-540-201	2	Polyester Thermoplastic	3.18 mm	0.125 in	30 Áin	0.76 Ám	Non Specified - Dual Edge	-40 C	105 ░C	2	Gold	76	Press-Fit Wire Wrap	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	Copper Alloy	Dual	Black	38	Female
EDAC Inc. 746-076-540-206	2	Polyester Thermoplastic	3.18 mm	0.125 in	30 Áin	0.76 Ám	Non Specified - Dual Edge	-40 C	105 ░C	2	Gold	76	Press-Fit Wire Wrap	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	Copper Alloy	Dual	Black	38	Female
EDAC Inc. 746-076-527-606	2	Polyester Thermoplastic	3.18 mm	0.125 in	30 Áin	0.76 Ám	Non Specified - Dual Edge	-40 C	105 ░C	2	Gold	76	Press-Fit	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	Copper Alloy	Dual	Black	38	Female

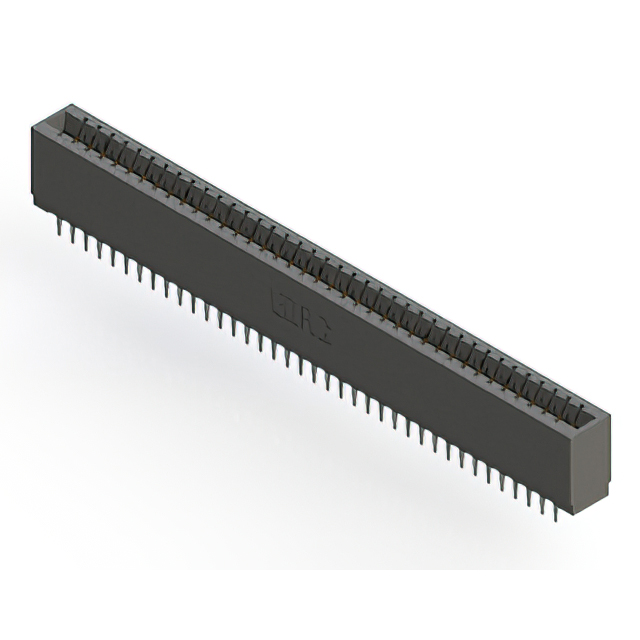

EDAC Inc. 746-076-525-601	2	Polyester Thermoplastic	3.18 mm	0.125 in	30 Áin	0.76 Ám	Non Specified - Dual Edge	-40 C	105 ░C	2	Gold	76	Press-Fit	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	Copper Alloy	Dual	Black	38	Female
EDAC Inc. 746-076-527-206	2	Polyester Thermoplastic	3.18 mm	0.125 in	30 Áin	0.76 Ám	Non Specified - Dual Edge	-40 C	105 ░C	2	Gold	76	Press-Fit	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	Copper Alloy	Dual	Black	38	Female
